* Filter the F1 Thread through selecting the -XX options

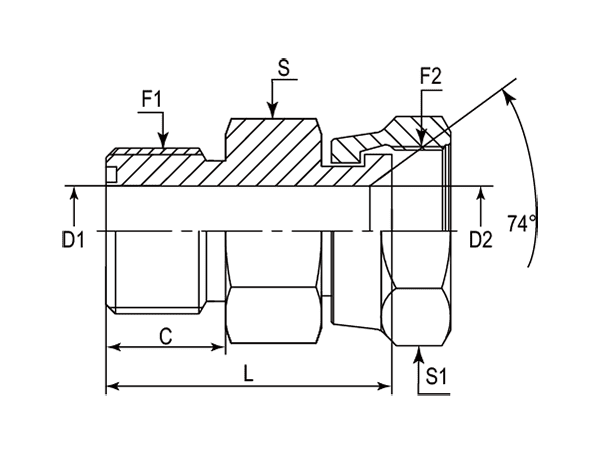

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D1 | D2 | L | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | - | - | - |
| -01 | DAOF51251-0404 | 9/16"-18 | 7/16"-20 | 9.80 | 4.37 | 4.37 | 25.70 | 17 mm | 14 mm | Metric |
| -01 | DAOF51251-0404IN | 9/16"-18 | 7/16"-20 | 9.80 | 4.37 | 4.37 | 25.70 | 5/8" | 9/16" | Imperial |
| -06 | DAOF51251-0606 | 11/16"-16 | 9/16"-18 | 11.20 | 6.71 | 6.71 | 30.23 | 19 mm | 19 mm | Metric |
| -06 | DAOF51251-0606IN | 11/16"-16 | 9/16"-18 | 11.20 | 6.71 | 6.71 | 30.23 | 3/4" | 11/16" | Imperial |
| -08 | DAOF51251-0808 | 13/16"-16 | 3/4"-16 | 12.80 | 9.50 | 9.50 | 34.24 | 22 mm | 22 mm | Metric |
| -08 | DAOF51251-0808IN | 13/16"-16 | 3/4"-16 | 12.80 | 9.50 | 9.50 | 34.24 | 7/8" | 7/8" | Imperial |
| -10 | DAOF51251-1010 | 1"-14 | 7/8"-14 | 15.49 | 12.29 | 12.29 | 38.00 | 27 mm | 27 mm | Metric |
| -10 | DAOF51251-1010IN | 1"-14 | 7/8"-14 | 15.49 | 12.29 | 12.29 | 38.00 | 1-1/16" | 1" | Imperial |
| -12 | DAOF51251-1210 | 1-3/16"-12 | 7/8"-14 | 17.02 | 15.47 | 12.29 | 42.50 | 32 mm | 27 mm | Metric |
| -12 | DAOF51251-1212 | 1-3/16"-12 | 1-1/16"-12 | 17.02 | 15.47 | 15.47 | 43.35 | 32 mm | 32 mm | Metric |
| -12 | DAOF51251-1210IN | 1-3/16"-12 | 7/8"-14 | 17.02 | 15.47 | 12.29 | 42.50 | 1-1/4" | 1" | Imperial |
| -12 | DAOF51251-1212IN | 1-3/16"-12 | 1-1/16"-12 | 17.02 | 15.47 | 15.47 | 43.35 | 1-1/4" | 1-1/4" | Imperial |
| -16 | DAOF51251-1616 | 1-7/16"-12 | 1-5/16"-12 | 17.50 | 20.50 | 20.50 | 47.40 | 41 mm | 41 mm | Metric |
| -16 | DAOF51251-1616IN | 1-7/16"-12 | 1-5/16"-12 | 17.50 | 20.50 | 20.50 | 47.40 | 1-1/2" | 1-1/2" | Imperial |
| -20 | DAOF51251-2020 | 1-11/16"-12 | 1-5/8"-12 | 17.50 | 26.00 | 26.00 | 50.00 | 46 mm | 50 mm | Metric |
| -20 | DAOF51251-2020IN | 1-11/16"-12 | 1-5/8"-12 | 17.50 | 26.00 | 26.00 | 50.00 | 1-3/4" | 2" | Imperial |
| -24 | DAOF51251-2424 | 2"-12 | 1-7/8"-12 | 17.50 | 32.00 | 32.00 | 52.00 | 55 mm | 60 mm | Metric |
| -24 | DAOF51251-2424IN | 2"-12 | 1-7/8"-12 | 17.50 | 32.00 | 32.00 | 52.00 | 2-1/8" | 2-1/2" | Imperial |
