DAOF51245 Adaptor – DME&JDE Group

Technical Data of DAOF51245

* Filter the F1 Thread through selecting the -XX options

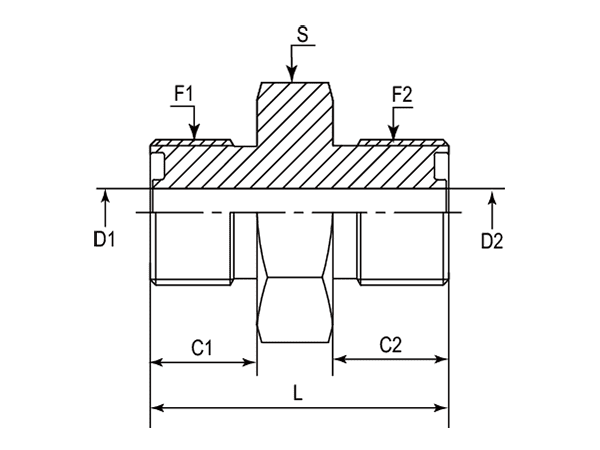

A drawing of DAOF51245 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S	Hex
-	-	UNF	UNF	mm	mm	mm	mm	mm	-	-
-01	DAOF51245-0404	9/16"-18	9/16"-18	9.80	9.80	4.37	4.37	27.40	17 mm	Metric
-01	DAOF51245-0404IN	9/16"-18	9/16"-18	9.80	9.80	4.37	4.37	27.40	5/8"	Imperial
-06	DAOF51245-0604	11/16"-16	9/16"-18	11.20	9.80	6.71	4.37	29.70	19 mm	Metric
-06	DAOF51245-0606	11/16"-16	11/16"-16	11.20	11.20	6.50	6.50	31.00	19 mm	Metric
-06	DAOF51245-0604IN	11/16"-16	9/16"-18	11.20	9.80	6.71	4.37	29.70	3/4"	Imperial
-06	DAOF51245-0606IN	11/16"-16	11/16"-16	11.20	11.20	6.50	6.50	31.00	3/4"	Imperial
-08	DAOF51245-0806	13/16"-16	11/16"-16	12.80	11.20	6.71	6.71	33.80	22 mm	Metric
-08	DAOF51245-0808	13/16"-16	13/16"-16	13.00	13.00	9.60	9.60	35.50	22 mm	Metric
-08	DAOF51245-0806IN	13/16"-16	11/16"-16	12.80	11.20	6.71	6.71	33.80	7/8"	Imperial
-08	DAOF51245-0808IN	13/16"-16	13/16"-16	13.00	13.00	9.60	9.60	35.50	7/8"	Imperial
-10	DAOF51245-1008	13/16"-16	1"-14	15.49	12.80	12.29	9.60	39.90	27 mm	Metric
-10	DAOF51245-1010	1"-14	1"-14	15.50	15.50	12.50	12.50	42.50	27 mm	Metric
-10	DAOF51245-1008IN	13/16"-16	1"-14	15.49	12.80	12.29	9.60	39.90	1-1/16"	Imperial
-10	DAOF51245-1010IN	1"-14	1"-14	15.50	15.50	12.50	12.50	42.50	1-1/16"	Imperial
-12	DAOF51245-1206	1-3/16"-12	11/16"-16	17.02	11.20	15.47	6.71	41.40	32 mm	Metric
-12	DAOF51245-1208	1-3/16"-12	13/16"-16	17.02	12.80	15.47	9.60	43.00	32 mm	Metric
-12	DAOF51245-1210	1-3/16"-12	1"-14	17.02	15.49	15.50	12.50	45.70	32 mm	Metric
-12	DAOF51245-1212	1-3/16"-12	1-3/16"-12	17.02	17.02	15.47	15.47	47.20	32 mm	Metric
-12	DAOF51245-1206IN	1-3/16"-12	11/16"-16	17.02	11.20	15.47	6.71	41.40	1-1/4"	Imperial
-12	DAOF51245-1208IN	1-3/16"-12	13/16"-16	17.02	12.80	15.47	9.60	43.00	1-1/4"	Imperial
-12	DAOF51245-1210IN	1-3/16"-12	1"-14	17.02	15.49	15.50	12.50	45.70	1-1/4"	Imperial
-12	DAOF51245-1212IN	1-3/16"-12	1-3/16"-12	17.02	17.02	15.47	15.47	47.20	1-1/4"	Imperial
-16	DAOF51245-1612	1-7/16"-12	1-3/16"-12	17.50	17.02	20.60	15.47	48.80	41 mm	Metric
-16	DAOF51245-1616	1-7/16"-12	1-7/16"-12	17.50	17.50	20.60	20.60	49.30	41 mm	Metric
-16	DAOF51245-1612IN	1"7/16-12	1-3/16"-12	17.50	17.02	20.60	15.47	48.80	1-1/2"	Imperial
-16	DAOF51245-1616IN	1-7/16"-12	1-7/16"-12	17.50	17.50	20.60	20.60	49.30	1-1/2"	Imperial
-20	DAOF51245-2016	1-11/16"-12	1-7/16"-12	17.50	17.50	26.00	20.60	51.30	46 mm	Metric
-20	DAOF51245-2020	1-11/16"-12	1-11/16"-12	17.50	17.50	26.00	26.00	51.30	46 mm	Metric
-20	DAOF51245-2016IN	1-11/16"-12	1-7/16"-12	17.50	17.50	26.00	20.60	51.30	1-3/4"	Imperial
-20	DAOF51245-2020IN	1-11/16"-12	1-11/16"-12	17.50	17.50	26.00	26.00	51.30	1-3/4"	Imperial
-24	DAOF51245-2424	2"-12	2"-12	17.50	17.50	32.00	32.00	53.00	55 mm	Metric
-24	DAOF51245-2424IN	2"-12	2"-12	17.50	17.50	32.00	32.00	53.00	2-1/8"	Imperial
-32	DAOF51245-3224	2-1/2"-12	2"-12	22.25	17.50	45.00	32.00	61.00	67 mm	Metric
-32	DAOF51245-3232	2-1/2"-12	2-1/2"-12	22.25	22.25	45.00	45.00	66.00	67 mm	Metric
-32	DAOF51245-3224IN	2-1/2"-12	2"-12	22.25	17.50	45.00	32.00	61.00	2-5/8"	Imperial
-32	DAOF51245-3232IN	2-1/2"-12	2-1/2"-12	22.25	22.25	45.00	45.00	66.00	2-5/8"	Imperial
