DAOF1106Q Adaptor – DME&JDE Group

Technical Data of DAOF1106Q

* Filter the F1 Thread through selecting the -XX options

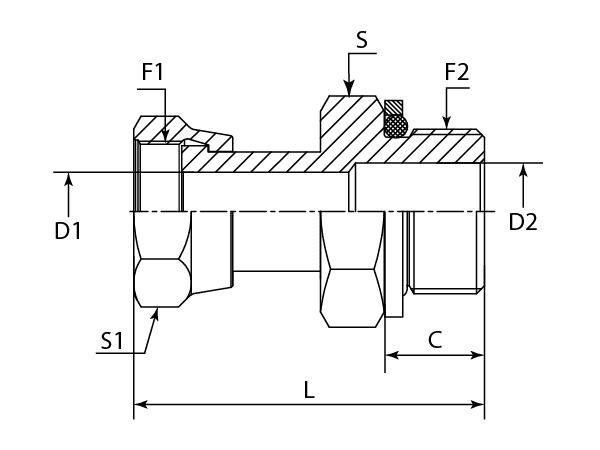

A drawing of DAOF1106Q hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	C	D1	D2	L	S	S1
-	-	UNF	BSPP	mm	mm	mm	mm	mm	mm
-01	DAOF1106Q-0402	9/16"-18	1/8"-28	6.70	4.19	4.19	39.00	17	17
-01	DAOF1106Q-0404	9/16"-18	1/4"-19	10.20	4.19	7.50	43.50	19	17
-06	DAOF1106Q-0604	11/16"-16	1/4"-19	10.20	6.71	6.71	48.50	19	22
-06	DAOF1106Q-0606	11/16"-16	3/8"-19	10.20	6.71	9.90	50.00	24	22
-06	DAOF1106Q-0608	11/16"-16	1/2"-14	12.20	6.71	12.30	53.00	27	22
-08	DAOF1106Q-0804	13/16"-16	1/4"-19	10.20	9.09	7.50	54.50	22	24
-08	DAOF1106Q-0806	13/16"-16	3/8"-19	10.20	9.09	9.09	55.00	24	24
-08	DAOF1106Q-0808	13/16"-16	1/2"-14	12.20	9.09	12.30	59.00	27	24
-10	DAOF1106Q-1006	1"-14	3/8"-19	10.00	11.51	9.90	59.50	24	30
-10	DAOF1106Q-1008	1"-14	1/2"-14	12.20	11.51	11.51	61.50	27	30
-10	DAOF1106Q-1010	1"-14	3/4"-14	14.50	11.51	14.00	66.00	36	30
-12	DAOF1106Q-1208	1-3/16"-12	1/2"-14	12.20	13.89	12.30	67.50	30	36
-12	DAOF1106Q-1212	1-3/16"-12	3/4"-14	14.50	13.89	13.89	68.50	36	36
-12	DAOF1106Q-1216	1-3/16"-12	1"-11	15.50	13.89	21.50	73.50	41	36
-16	DAOF1106Q-1612	1-7/16"-12	3/4"-14	14.50	19.89	15.50	72.00	36	41
-16	DAOF1106Q-1616	1-7/16"-12	1"-11	15.50	19.89	21.50	74.00	41	41
-16	DAOF1106Q-1620	1-7/16"-12	1-1/4"-11	17.50	19.89	27.50	78.50	50	41
-20	DAOF1106Q-2016	1-11/16"-12	1"-11	15.50	26.01	21.50	76.00	41	50
-20	DAOF1106Q-2020	1-11/16"-12	1-1/4"-11	17.50	26.01	27.50	79.00	50	50
-20	DAOF1106Q-2024	1-11/16"-12	1-1/2"-11	19.50	26.01	33.00	82.00	60	50
-24	DAOF1106Q-2424	2"-12	1-1/2"-11	19.50	32.00	33.00	82.00	60	57
