* Filter the F1 Thread through selecting the -XX options

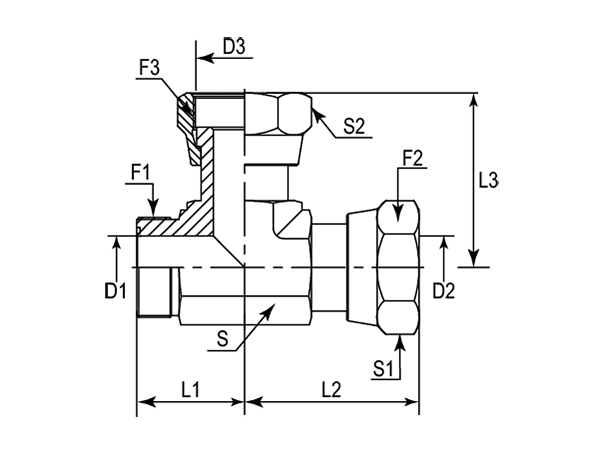

| - | Part Number | F1 (Thread) | F2 (Thread) | F3 (Thread) | D1 | D2 | D3 | L1 | L2 | L3 | S | S1 | S2 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | UNF | mm | mm | mm | mm | mm | mm | - | - | - | - |
| -01 | DAOF3L245-0404 | 9/16"-18 | 9/16"-18 | 9/16"-18 | 4.37 | 4.19 | 4.19 | 21.60 | 34.60 | 34.60 | 14 mm | 17 mm | 17 mm | Metric |
| -01 | DAOF3L245-0404IN | 9/16"-18 | 9/16"-18 | 9/16"-18 | 4.37 | 4.19 | 4.19 | 21.60 | 34.60 | 34.60 | 9/16" | 11/16" | 11/16" | Imperial |
| -06 | DAOF3L245-0606 | 11/16"-16 | 11/16"-16 | 11/16"-16 | 6.71 | 6.71 | 6.71 | 24.90 | 38.70 | 38.70 | 19 mm | 22 mm | 22 mm | Metric |
| -06 | DAOF3L245-0606IN | 11/16"-16 | 11/16"-16 | 11/16"-16 | 6.71 | 6.71 | 6.71 | 24.90 | 38.70 | 38.70 | 3/4" | 7/8" | 7/8" | Imperial |
| -08 | DAOF3L245-0808 | 13/16"-16 | 13/16"-16 | 13/16"-16 | 9.60 | 9.09 | 9.09 | 27.90 | 49.00 | 49.00 | 19 mm | 24 mm | 24 mm | Metric |
| -08 | DAOF3L245-0808IN | 13/16"-16 | 13/16"-16 | 13/16"-16 | 9.60 | 9.09 | 9.09 | 27.90 | 49.00 | 49.00 | 3/4" | 15/16" | 15/16" | Imperial |
| -10 | DAOF3L245-1010 | 1"-14 | 1"-14 | 1"-14 | 12.29 | 11.51 | 11.51 | 33.27 | 54.30 | 54.30 | 27 mm | 30 mm | 30 mm | Metric |
| -10 | DAOF3L245-1010IN | 1"-14 | 1"-14 | 1"-14 | 12.29 | 11.51 | 11.51 | 33.27 | 54.30 | 54.30 | 1-1/16" | 1-1/8" | 1-1/8" | Imperial |
| -12 | DAOF3L245-1212 | 1-3/16"-12 | 1-3/16"-12 | 1-3/16"-12 | 15.47 | 13.89 | 13.89 | 37.30 | 60.80 | 60.80 | 32 mm | 36 mm | 36 mm | Metric |
| -12 | DAOF3L245-1212IN | 1-3/16"-12 | 1-3/16"-12 | 1-3/16"-12 | 15.47 | 13.89 | 13.89 | 37.30 | 60.80 | 60.80 | 1-1/4" | 1-3/8" | 1-3/8" | Imperial |
| -16 | DAOF3L245-1616 | 1-7/16"-12 | 1-7/16"-12 | 1-7/16"-12 | 20.60 | 19.89 | 19.89 | 41.70 | 68.20 | 68.20 | 36 mm | 41 mm | 41 mm | Metric |
| -16 | DAOF3L245-1616IN | 1-7/16"-12 | 1-7/16"-12 | 1-7/16"-12 | 20.60 | 19.89 | 19.89 | 41.70 | 68.20 | 68.20 | 1-3/8" | 1-5/8" | 1-5/8" | Imperial |
