DAOF5L525 Run Adjustable Tee ORFS Male - Metric Male + O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • LAdaptor StructureRun Tee
  • 52Thread TypesMetric
  • 5Connection TypeMale + O Ring
  • DME&JDE Code: DAOF5L525
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: Run Tee
  • Connection Type: Adjustable Male × Male × Male
  • Thread Types: UNF × Metric × UNF + O Ring
Technical Data of DAOF5L525
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

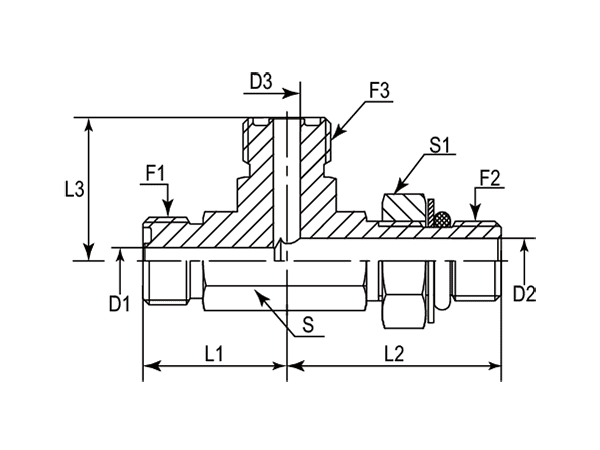

A drawing of DAOF5L525 hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 D1 D2 D3 S S1
- - UNF METRIC UNF mm mm mm mm mm mm mm mm
-01 DAOF5L525-0410 9/16"-18 M10X1 9/16"-18 21.50 32.50 21.50 4.37 3.00 4.37 14 14
-01 DAOF5L525-0412 9/16"-18 M12X1.5 9/16"-18 21.50 32.50 21.50 4.37 4.00 4.37 14 17
-06 DAOF5L525-0614 11/16"-16 M14X1.5 11/16"-16 25.00 36.00 25.00 6.71 6.00 6.71 19 19
-06 DAOF5L525-0616 11/16"-16 M16X1.5 11/16"-16 25.00 37.00 25.00 6.71 7.00 6.71 19 22
-08 DAOF5L525-0816 13/16"-16 M16X1.5 13/16"-16 28.00 37.00 28.00 9.60 7.00 9.60 19 22
-08 DAOF5L525-0818 13/16"-16 M18X1.5 13/16"-16 28.00 40.00 28.00 9.60 9.00 9.60 19 24
-08 DAOF5L525-0822 13/16"-16 M22X1.5 13/16"-16 31.50 49.00 31.50 9.60 12.00 9.60 27 27
-10 DAOF5L525-1018 1"-14 M18X1.5 1"-14 33.50 48.00 33.50 12.29 9.00 12.29 27 24
-10 DAOF5L525-1022 1"-14 M22X1.5 1"-14 33.50 49.00 33.50 12.29 12.00 12.29 27 27
-12 DAOF5L525-1227 1-3/16"-12 M27X2 1-3/16"-12 37.50 55.50 37.50 15.47 15.00 15.47 30 32
-12 DAOF5L525-1233 1-3/16"-12 M33X2 1-3/16"-12 41.50 60.00 41.50 15.50 20.00 15.50 36 41
-16 DAOF5L525-1633 1-7/16"-12 M33X2 1-7/16"-12 42.00 60.00 42.00 20.60 20.00 20.60 36 41
-20 DAOF5L525-2033 1-11/16"-12 M33X2 1-11/16"-12 44.70 62.50 44.70 26.00 20.00 26.00 41 41
-24 DAOF5L525-2448 2"-12 M48X2 2"-12 47.90 66.00 47.90 32.00 32.00 32.00 48 55
