* Filter the F1 Thread through selecting the -XX options

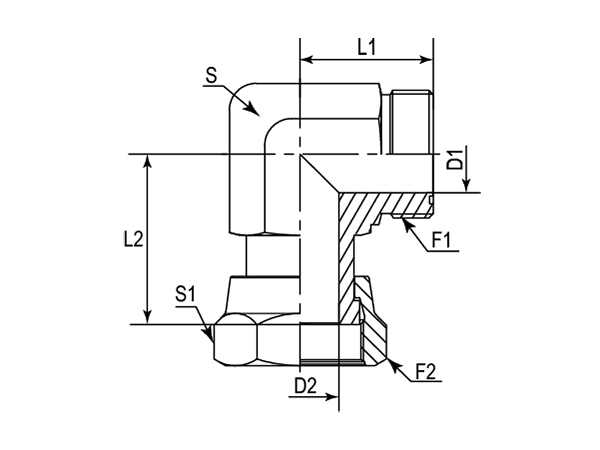

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | - | - | - |
| -01 | DAOF59241-0404 | 9/16"-18 | 9/16"-18 | 21.59 | 26.41 | 4.37 | 4.19 | 14 mm | 17 mm | Metric |
| -01 | DAOF59241-0406 | 9/16"-18 | 11/16"-16 | 23.50 | 29.21 | 4.37 | 6.71 | 19 mm | 22 mm | Metric |
| -01 | DAOF59241-0404IN | 9/16"-18 | 9/16"-18 | 21.59 | 26.41 | 4.37 | 4.19 | 9/16" | 11/16" | Imperial |
| -01 | DAOF59241-0406IN | 9/16"-18 | 11/16"-16 | 23.50 | 29.21 | 4.37 | 6.71 | 3/4" | 13/16" | Imperial |
| -06 | DAOF59241-0606 | 11/16"-16 | 11/16"-16 | 24.89 | 29.21 | 6.71 | 6.71 | 19 mm | 22 mm | Metric |
| -06 | DAOF59241-0606IN | 11/16"-16 | 11/16"-16 | 24.89 | 29.21 | 6.71 | 6.71 | 3/4" | 13/16" | Imperial |
| -08 | DAOF59241-0806 | 13/16"-16 | 11/16"-16 | 27.94 | 33.80 | 9.60 | 6.71 | 19 mm | 22 mm | Metric |
| -08 | DAOF59241-0808 | 13/16"-16 | 13/16"-16 | 28.00 | 38.00 | 9.60 | 9.09 | 19 mm | 24 mm | Metric |
| -08 | DAOF59241-0812 | 13/16"-16 | 1-3/16"-12 | 34.50 | 46.30 | 9.60 | 13.89 | 30 mm | 36 mm | Metric |
| -08 | DAOF59241-0806IN | 13/16"-16 | 11/16"-16 | 27.94 | 33.80 | 9.60 | 6.71 | 3/4" | 13/16" | Imperial |
| -08 | DAOF59241-0808IN | 13/16"-16 | 13/16"-16 | 28.00 | 38.00 | 9.60 | 9.09 | 3/4" | 15/16" | Imperial |
| -08 | DAOF59241-0812IN | 13/16"-16 | 1-3/16"-12 | 34.50 | 46.30 | 9.60 | 13.89 | 1-3/16" | 1-3/8" | Imperial |
| -10 | DAOF59241-1010 | 1"-14 | 1"-14 | 33.27 | 41.15 | 12.29 | 11.51 | 27 mm | 30 mm | Metric |
| -10 | DAOF59241-1010IN | 1"-14 | 1"-14 | 33.27 | 41.15 | 12.29 | 11.51 | 1-1/16" | 1-1/8" | Imperial |
| -12 | DAOF59241-1212 | 1-3/16"-12 | 1-3/16"-12 | 37.50 | 46.50 | 15.50 | 14.00 | 30 mm | 36 mm | Metric |
| -12 | DAOF59241-1212IN | 1-3/16"-12 | 1-3/16"-12 | 37.50 | 46.50 | 15.50 | 14.00 | 1-3/16" | 1-3/8" | Imperial |
| -16 | DAOF59241-1616 | 1-7/16"-12 | 1-7/16"-12 | 41.66 | 53.34 | 20.60 | 19.89 | 36 mm | 41 mm | Metric |
| -16 | DAOF59241-1616IN | 1-7/16"-12 | 1-7/16"-12 | 41.66 | 53.34 | 20.60 | 19.89 | 1-7/16" | 1-5/8" | Imperial |
| -20 | DAOF59241-2020 | 1-11/16"-12 | 1-11/16"-12 | 44.70 | 58.17 | 26.00 | 26.00 | 41 mm | 50 mm | Metric |
| -20 | DAOF59241-2020IN | 1-11/16"-12 | 1-11/16"-12 | 44.70 | 58.17 | 26.00 | 26.00 | 1-5/8" | 1-7/8" | Imperial |
| -24 | DAOF59241-2420 | 2"-12 | 1-11/16"-12 | 49.00 | 61.00 | 32.00 | 26.01 | 48 mm | 50 mm | Metric |
| -24 | DAOF59241-2424 | 2"-12 | 2"-12 | 48.80 | 61.20 | 32.00 | 32.00 | 48 mm | 60 mm | Metric |
| -24 | DAOF59241-2420IN | 2"-12 | 1-11/16"-12 | 49.00 | 61.00 | 32.00 | 26.01 | 1-7/8" | 1-7/8" | Imperial |
| -24 | DAOF59241-2424IN | 2"-12 | 2"-12 | 48.80 | 61.20 | 32.00 | 32.00 | 1-7/8" | 2-1/4" | Imperial |
