* Filter the F1 Thread through selecting the -XX options

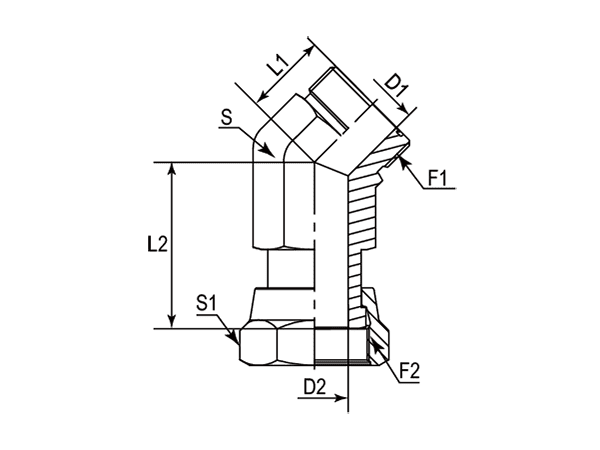

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | - | - | - |
| -01 | DAOF54241-0404 | 9/16"-18 | 9/16"-18 | 16.00 | 25.15 | 4.37 | 4.19 | 14 mm | 17 mm | Metric |
| -01 | DAOF54241-0404IN | 9/16"-18 | 9/16"-18 | 16.00 | 25.15 | 4.37 | 4.19 | 9/16" | 11/16" | Imperial |
| -06 | DAOF54241-0606 | 11/16"-16 | 11/16"-16 | 19.00 | 28.50 | 6.71 | 6.71 | 19 mm | 22 mm | Metric |
| -06 | DAOF54241-0606IN | 11/16"-16 | 11/16"-16 | 19.00 | 28.50 | 6.71 | 6.71 | 3/4" | 13/16" | Imperial |
| -08 | DAOF54241-0808 | 13/16"-16 | 13/16"-16 | 20.50 | 33.52 | 9.60 | 9.09 | 19 mm | 24 mm | Metric |
| -08 | DAOF54241-0808IN | 13/16"-16 | 13/16"-16 | 20.50 | 33.52 | 9.60 | 9.09 | 3/4" | 15/16" | Imperial |
| -10 | DAOF54241-1010 | 1"-14 | 1"-14 | 23.50 | 36.58 | 12.29 | 11.51 | 27 mm | 30 mm | Metric |
| -10 | DAOF54241-1010IN | 1"-14 | 1"-14 | 23.50 | 36.58 | 12.29 | 11.51 | 1-1/16" | 1-1/8" | Imperial |
| -12 | DAOF54241-1212 | 1-3/16"-12 | 1-3/16"-12 | 26.00 | 39.00 | 15.47 | 13.89 | 30 mm | 36 mm | Metric |
| -12 | DAOF54241-1212IN | 1-3/16"-12 | 1-3/16"-12 | 26.00 | 39.00 | 15.47 | 13.89 | 1-3/16" | 1-3/8" | Imperial |
| -16 | DAOF54241-1616 | 1-7/16"-12 | 1-7/16"-12 | 30.00 | 47.50 | 20.50 | 20.00 | 36 mm | 41 mm | Metric |
| -16 | DAOF54241-1616IN | 1-7/16"-12 | 1-7/16"-12 | 30.00 | 47.50 | 20.50 | 20.00 | 1-7/16" | 1-5/8" | Imperial |
| -20 | DAOF54241-2020 | 1-11/16"-12 | 1-11/16"-12 | 32.00 | 50.30 | 26.00 | 26.00 | 41 mm | 50 mm | Metric |
| -20 | DAOF54241-2020IN | 1-11/16"-12 | 1-11/16"-12 | 32.00 | 50.30 | 26.00 | 26.00 | 1-5/8" | 1-7/8" | Imperial |
| -24 | DAOF54241-2424 | 2"-12 | 2"-12 | 36.80 | 52.30 | 32.00 | 32.00 | 50 mm | 60 mm | Metric |
| -24 | DAOF54241-2424IN | 2"-12 | 2"-12 | 36.80 | 52.30 | 32.00 | 32.00 | 1-7/8" | 2-1/4" | Imperial |
