DAOF5T06Q Adaptor – DME&JDE Group

Technical Data of DAOF5T06Q

* Filter the F1 Thread through selecting the -XX options

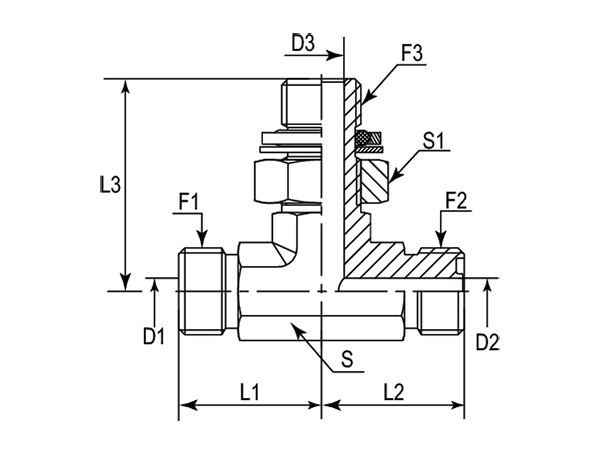

A drawing of DAOF5T06Q hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3(Thread)	L1	L2	L3	D1	D2	D3	S	S1
-	-	UNF	UNF	BSPP	mm	mm	mm	mm	mm	mm	mm	mm
-01	DAOF5T06Q-0402	9/16"-18	9/16"-18	1/8"-28	21.50	21.50	30.00	4.37	4.37	4.40	14	14
-01	DAOF5T06Q-0404	9/16"-18	9/16"-18	1/4"-19	23.50	23.50	35.00	4.37	4.37	7.50	14	19
-06	DAOF5T06Q-0604	11/16"-16	11/16"-16	1/4"-19	25.00	25.00	36.00	6.71	6.71	7.50	19	19
-06	DAOF5T06Q-0606	11/16"-16	11/16"-16	3/8"-19	26.50	26.50	38.00	6.71	6.71	9.90	19	22
-06	DAOF5T06Q-0608	11/16"-16	11/16"-16	1/2"-14	29.50	29.50	48.00	6.71	6.71	12.30	22	27
-08	DAOF5T06Q-0804	13/16"-16	13/16"-16	1/4"-19	28.00	28.00	35.00	9.60	9.60	7.50	19	19
-08	DAOF5T06Q-0806	13/16"-16	13/16"-16	3/8"-19	28.00	28.00	36.50	9.60	9.60	9.90	19	22
-08	DAOF5T06Q-0808	13/16"-16	13/16"-16	1/2"-14	31.00	31.00	48.00	9.50	9.50	12.30	27	27
-10	DAOF5T06Q-1008	1"-14	1"-14	1/2"-14	33.50	33.50	48.00	12.29	12.29	12.30	27	27
-10	DAOF5T06Q-1012	1"-14	1"-14	3/4"-14	36.00	36.00	51.50	12.50	12.50	15.50	30	36
-12	DAOF5T06Q-1212	1-3/16"-12	1-3/16"-12	3/4"-14	37.50	37.50	51.50	15.47	15.47	15.50	30	36
-12	DAOF5T06Q-1216	1-3/16"-12	1-3/16"-12	1"-11	41.50	41.50	58.00	15.47	15.47	21.50	36	41
-16	DAOF5T06Q-1616	1-7/16"-12	1-7/16"-12	1"-11	42.00	42.00	58.00	20.60	20.60	21.50	36	41
-20	DAOF5T06Q-2020	1-11/16"-12	1-11/16"-12	1-1/4"-11	45.00	45.00	60.50	26.00	26.00	27.50	41	50
-24	DAOF5T06Q-2424	2"-12	2"-12	1-1/2"-11	49.00	49.00	64.50	32.00	32.00	33.00	48	55
