DAOF5924T 90° Elbow Bulkhead Connector ORFS Male - ORFS Male

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • 9Adaptor Structure90° Elbow
  • 24Thread TypesORFS UNF
  • TConnection TypeBulkhead Male
  • DME&JDE Code: DAOF5924T
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: 90° Elbow
  • Connection Type: Male × Male
  • Thread Types: UNF × UNF
  • Other Features: Bulkhead
Technical Data of DAOF5924T
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

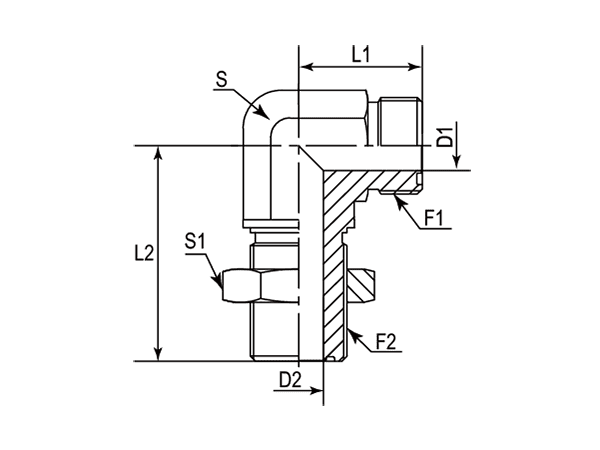

A drawing of DAOF5924T hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1 Hex
- - UNF UNF mm mm mm mm - - -
-01 DAOF5924T-0404 9/16"-18 9/16"-18 22.60 47.00 4.37 4.37 14 mm 22 mm Metric
-01 DAOF5924T-0404IN 9/16"-18 9/16"-18 22.60 47.00 4.37 4.37 9/16" 13/16" Imperial
-06 DAOF5924T-0606 11/16"-16 11/16"-16 26.00 52.00 6.50 6.50 19 mm 27 mm Metric
-06 DAOF5924T-0606IN 11/16"-16 11/16"-16 26.00 52.00 6.50 6.50 3/4" 1" Imperial
-08 DAOF5924T-0808 13/16"-16 13/16"-16 29.00 55.40 9.60 9.60 19 mm 30 mm Metric
-08 DAOF5924T-0808IN 13/16"-16 13/16"-16 29.00 55.40 9.60 9.60 3/4" 1-1/8" Imperial
-10 DAOF5924T-1010 1"-14 1"-14 34.50 63.00 12.50 12.50 27 mm 36 mm Metric
-10 DAOF5924T-1010IN 1"-14 1"-14 34.50 63.00 12.50 12.50 1-1/16" 1-5/16" Imperial
-12 DAOF5924T-1212 1-3/16"-12 1-3/16"-12 38.50 67.20 15.47 15.47 30 mm 41 mm Metric
-12 DAOF5924T-1212IN 1-3/16"-12 1-3/16"-12 38.50 67.20 15.47 15.47 1-3/16" 1-1/2" Imperial
-16 DAOF5924T-1616 1-7/16"-12 1-7/16"-12 42.40 71.10 20.60 20.60 36 mm 46 mm Metric
-16 DAOF5924T-1616IN 1-7/16"-12 1-7/16"-12 42.40 71.10 20.60 20.60 1-7/16" 1-3/4" Imperial
-20 DAOF5924T-2020 1-11/16"-12 1-11/16"-12 45.50 75.40 26.00 26.00 41 mm 50 mm Metric
-20 DAOF5924T-2020IN 1-11/16"-12 1-11/16"-12 45.50 75.40 26.00 26.00 1-5/8" 2" Imperial
-24 DAOF5924T-2424 2"-12 2"-12 49.50 79.50 32.00 32.00 50 mm 60 mm Metric
-24 DAOF5924T-2424IN 2"-12 2"-12 49.50 79.50 32.00 32.00 1-7/8" 2-3/8" Imperial
