* Filter the F1 Thread through selecting the -XX options

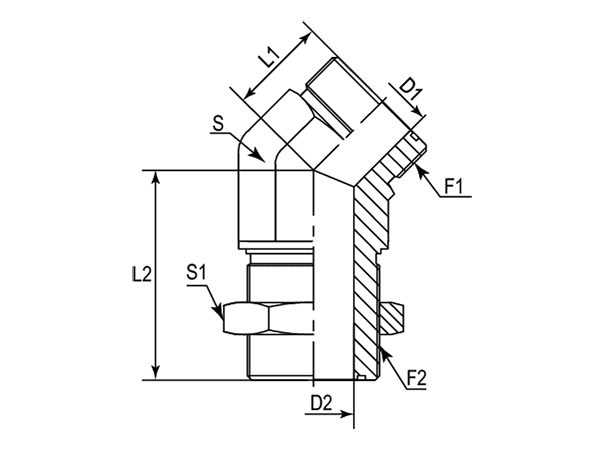

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | - | - | - |
| -01 | DAOF5424T-0404 | 9/16"-18 | 9/16"-18 | 16.00 | 43.90 | 4.37 | 4.37 | 14 mm | 22 mm | Metric |
| -01 | DAOF5424T-0404IN | 9/16"-18 | 9/16"-18 | 16.00 | 43.90 | 4.37 | 4.37 | 9/16" | 13/16" | Imperial |
| -06 | DAOF5424T-0606 | 11/16"-16 | 11/16"-16 | 18.80 | 48.50 | 6.71 | 6.71 | 19 mm | 27 mm | Metric |
| -06 | DAOF5424T-0606IN | 11/16"-16 | 11/16"-16 | 18.80 | 48.50 | 6.71 | 6.71 | 3/4" | 1" | Imperial |
| -08 | DAOF5424T-0808 | 13/16"-16 | 13/16"-16 | 20.30 | 51.10 | 9.60 | 9.60 | 19 mm | 30 mm | Metric |
| -08 | DAOF5424T-0808IN | 13/16"-16 | 13/16"-16 | 20.30 | 51.10 | 9.60 | 9.60 | 3/4" | 1-1/8" | Imperial |
| -10 | DAOF5424T-1010 | 1"-14 | 1"-14 | 23.50 | 56.50 | 12.50 | 12.50 | 27 mm | 36 mm | Metric |
| -10 | DAOF5424T-1010IN | 1"-14 | 1"-14 | 23.50 | 56.50 | 12.50 | 12.50 | 1-1/16" | 1-5/16" | Imperial |
| -12 | DAOF5424T-1212 | 1-3/16"-12 | 1-3/16"-12 | 25.90 | 60.70 | 15.47 | 15.47 | 30 mm | 41 mm | Metric |
| -12 | DAOF5424T-1212IN | 1-3/16"-12 | 1-3/16"-12 | 25.90 | 60.70 | 15.47 | 15.47 | 1-3/16" | 1-1/2" | Imperial |
| -16 | DAOF5424T-1616 | 1-7/16"-12 | 1-7/16"-12 | 30.00 | 65.30 | 20.60 | 20.60 | 36 mm | 46 mm | Metric |
| -16 | DAOF5424T-1616IN | 1-7/16"-12 | 1-7/16"-12 | 30.00 | 65.30 | 20.60 | 20.60 | 1-7/16" | 1-3/4" | Imperial |
| -20 | DAOF5424T-2020 | 1-11/16"-12 | 1-11/16"-12 | 32.00 | 67.10 | 26.00 | 26.00 | 41 mm | 50 mm | Metric |
| -20 | DAOF5424T-2020IN | 1-11/16"-12 | 1-11/16"-12 | 32.00 | 67.10 | 26.00 | 26.00 | 1-5/8" | 2" | Imperial |
| -24 | DAOF5424T-2424 | 2"-12 | 2"-12 | 36.80 | 67.10 | 32.00 | 32.00 | 48 mm | 60 mm | Metric |
| -24 | DAOF5424T-2424IN | 2"-12 | 2"-12 | 36.80 | 67.10 | 32.00 | 32.00 | 1-7/8" | 2-3/8" | Imperial |
