DAOF5L305 Adaptor – DME&JDE Group

Technical Data of DAOF5L305

* Filter the F1 Thread through selecting the -XX options

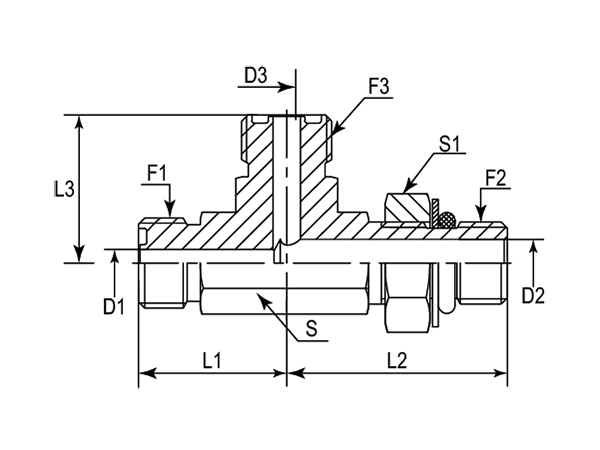

A drawing of DAOF5L305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1	Hex
-	-	UNF	UNF	UNF	mm	mm	mm	mm	mm	mm	-	-	-
-01	DAOF5L305-0404	9/16"-18	7/16"-20	9/16"-18	21.60	32.80	21.60	4.37	4.37	4.37	14 mm	17 mm	Metric
-01	DAOF5L305-0406	9/16"-18	9/16"-18	9/16"-18	23.50	36.80	23.50	4.37	6.71	4.37	19 mm	19 mm	Metric
-01	DAOF5L305-0408	9/16"-18	3/4"-16	9/16"-18	25.00	40.60	25.00	4.37	9.60	4.37	19 mm	24 mm	Metric
-01	DAOF5L305-0404IN	9/16"-18	7/16"-20	9/16"-18	21.60	32.80	21.60	4.37	4.37	4.37	9/16"	5/8"	Imperial
-01	DAOF5L305-0406IN	9/16"-18	9/16"-18	9/16"-18	23.50	36.80	23.50	4.37	6.71	4.37	3/4"	3/4"	Imperial
-01	DAOF5L305-0408IN	9/16"-18	3/4"-16	9/16"-18	25.00	40.60	25.00	4.37	9.60	4.37	3/4"	15/16"	Imperial
-06	DAOF5L305-0604	11/16"-16	7/16"-20	11/16"-16	25.00	35.00	25.00	6.50	4.50	6.50	19 mm	17 mm	Metric
-06	DAOF5L305-0606	11/16"-16	9/16"-18	11/16"-16	24.90	36.80	24.90	6.71	6.71	6.71	19 mm	19 mm	Metric
-06	DAOF5L305-0608	11/16"-16	3/4"-16	11/16"-16	26.40	40.60	26.40	6.71	9.60	6.71	19 mm	24 mm	Metric
-06	DAOF5L305-0604IN	11/16"-16	7/16"-20	11/16"-16	25.00	35.00	25.00	6.50	4.50	6.50	3/4"	5/8"	Imperial
-06	DAOF5L305-0606IN	11/16"-16	9/16"-18	11/16"-16	24.90	36.80	24.90	6.71	6.71	6.71	3/4"	3/4"	Imperial
-06	DAOF5L305-0608IN	11/16"-16	3/4"-16	11/16"-16	26.40	40.60	26.40	6.71	9.60	6.71	3/4"	15/16"	Imperial
-08	DAOF5L305-0806	13/16"-16	9/16"-18	13/16"-16	28.00	36.80	28.00	9.60	6.71	9.60	19 mm	19 mm	Metric
-08	DAOF5L305-0808	13/16"-16	3/4"-16	13/16"-16	27.90	40.60	27.90	9.60	9.60	9.60	19 mm	24 mm	Metric
-08	DAOF5L305-0810	13/16"-16	7/8"-14	13/16"-16	30.70	50.00	30.70	9.60	12.29	9.60	27 mm	27 mm	Metric
-08	DAOF5L305-0812	13/16"-16	1-1/16"-12	13/16"-16	33.50	55.10	33.50	9.60	15.47	9.60	30 mm	36 mm	Metric
-08	DAOF5L305-0806IN	13/16"-16	9/16"-18	13/16"-16	28.00	36.80	28.00	9.60	6.71	9.60	3/4"	3/4"	Imperial
-08	DAOF5L305-0808IN	13/16"-16	3/4"-16	13/16"-16	27.90	40.60	27.90	9.60	9.60	9.60	3/4"	15/16"	Imperial
-08	DAOF5L305-0810IN	13/16"-16	7/8"-14	13/16"-16	30.70	50.00	30.70	9.60	12.29	9.60	1-1/16"	1-1/16"	Imperial
-08	DAOF5L305-0812IN	13/16"-16	1-1/16"-12	13/16"-16	33.50	55.10	33.50	9.60	15.47	9.60	1-3/16"	1-3/8"	Imperial
-10	DAOF5L305-1008	1"-14	3/4"-16	1"-14	33.50	46.00	33.50	12.50	9.60	12.50	27 mm	24 mm	Metric
-10	DAOF5L305-1010	1"-14	7/8"-14	1"-14	33.30	50.00	33.30	12.29	12.29	12.29	27 mm	27 mm	Metric
-10	DAOF5L305-1012	1"-14	1-1/16"-12	1"-14	35.81	55.12	35.81	12.29	12.29	12.29	30 mm	36 mm	Metric
-10	DAOF5L305-1008IN	1"-14	3/4"-16	1"-14	33.50	46.00	33.50	12.50	9.60	12.50	1-1/16"	15/16"	Imperial
-10	DAOF5L305-1010IN	1"-14	7/8"-14	1"-14	33.30	50.00	33.30	12.29	12.29	12.29	1-1/16"	1-1/16"	Imperial
-10	DAOF5L305-1012IN	1"-14	1-1/16"-12	1"-14	35.81	55.12	35.81	12.29	12.29	12.29	1-3/16"	1-3/8"	Imperial
-12	DAOF5L305-1208	1-3/16"-12	3/4"-16	1-3/16"-12	37.34	48.50	37.34	15.47	9.60	15.47	30 mm	24 mm	Metric
-12	DAOF5L305-1212	1-3/16"-12	1-1/16"-12	1-3/16"-12	37.30	55.10	37.30	15.47	15.47	15.47	30 mm	36 mm	Metric
-12	DAOF5L305-1216	1-3/16"-12	1-5/16"-12	1-3/16"-12	41.20	59.70	41.20	15.47	20.60	15.47	36 mm	41 mm	Metric
-12	DAOF5L305-1208IN	1-3/16"-12	3/4"-16	1-3/16"-12	37.34	48.50	37.34	15.47	9.60	15.47	1-3/16"	15/16"	Imperial
-12	DAOF5L305-1212IN	1-3/16"-12	1-1/16"-12	1-3/16"-12	37.30	55.10	37.30	15.47	15.47	15.47	1-3/16"	1-3/8"	Imperial
-12	DAOF5L305-1216IN	1-3/16"-12	1-5/16"-12	1-3/16"-12	41.20	59.70	41.20	15.47	20.60	15.47	1-7/16"	1-5/8"	Imperial
-16	DAOF5L305-1612	1-7/16"-12	1-1/16"-12	1-7/16"-12	41.70	58.50	41.70	20.60	15.47	20.60	36 mm	36 mm	Metric
-16	DAOF5L305-1616	1-7/16"-12	1-5/16"-12	1-7/16"-12	41.50	59.50	41.50	20.50	21.50	20.50	36 mm	41 mm	Metric
-16	DAOF5L305-1620	1-7/16"-12	1-5/8"-12	1-7/16"-12	44.70	62.20	44.70	20.60	26.01	20.60	41 mm	50 mm	Metric
-16	DAOF5L305-1612IN	1-7/16"-12	1-1/16"-12	1-7/16"-12	41.70	58.50	41.70	20.60	15.47	20.60	1-7/16"	1-3/8"	Imperial
-16	DAOF5L305-1616IN	1-7/16"-12	1-5/16"-12	1-7/16"-12	41.50	59.50	41.50	20.50	21.50	20.50	1-7/16"	1-5/8"	Imperial
-16	DAOF5L305-1620IN	1-7/16"-12	1-5/8"-12	1-7/16"-12	44.70	62.20	44.70	20.60	26.01	20.60	1-5/8"	1-7/8"	Imperial
-20	DAOF5L305-2016	1-11/16"-12	1-5/16"-12	1-11/16"-12	44.70	62.20	44.70	26.00	20.60	26.00	41 mm	41 mm	Metric
-20	DAOF5L305-2020	1-11/16"-12	1-5/8"-12	1-11/16"-12	44.50	62.20	44.50	26.00	27.50	26.00	41 mm	50 mm	Metric
-20	DAOF5L305-2016IN	1-11/16"-12	1-5/16"-12	1-11/16"-12	44.70	62.20	44.70	26.00	20.60	26.00	1-5/8"	1-5/8"	Imperial
-20	DAOF5L305-2020IN	1-11/16"-12	1-5/8"-12	1-11/16"-12	44.50	62.20	44.50	26.00	27.50	26.00	1-5/8"	1-7/8"	Imperial
-24	DAOF5L305-2424	2"-12	1-7/8"-12	2"-12	48.80	65.80	48.80	32.00	32.00	32.00	50 mm	55 mm	Metric
-24	DAOF5L305-2424IN	2"-12	1-7/8"-12	2"-12	48.80	65.80	48.80	32.00	32.00	32.00	1-7/8"	2-1/8"	Imperial
