DAOF5928M Adaptor – DME&JDE Group

Technical Data of DAOF5928M

* Filter the F1 Thread through selecting the -XX options

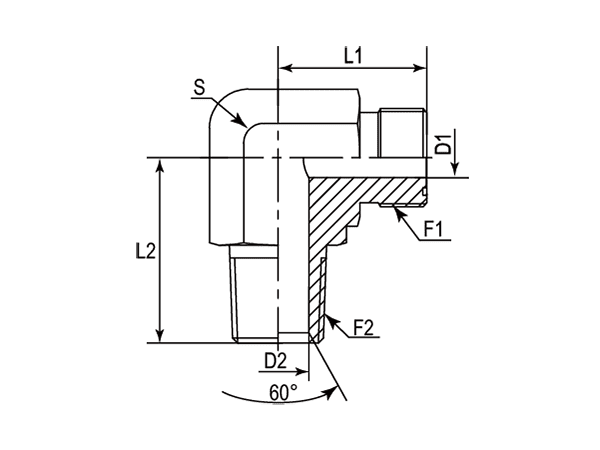

A drawing of DAOF5928M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	Hex
-	-	UNF	NPTF	mm	mm	mm	mm	-	-
-01	DAOF5928M-0402	9/16"-18	1/8"-27	21.60	19.80	4.37	4.78	14 mm	Metric
-01	DAOF5928M-0404	9/16"-18	1/4"-18	21.60	28.50	4.37	7.14	14 mm	Metric
-01	DAOF5928M-0406	9/16"-18	3/8"-18	24.60	31.00	4.37	10.31	19 mm	Metric
-01	DAOF5928M-0408	9/16"-18	1/2"-14	27.70	37.30	4.37	13.49	22 mm	Metric
-01	DAOF5928M-0402IN	9/16"-18	1/8"-27	21.60	19.80	4.37	4.78	9/16"	Imperial
-01	DAOF5928M-0404IN	9/16"-18	1/4"-18	21.60	28.50	4.37	7.14	9/16"	Imperial
-01	DAOF5928M-0406IN	9/16"-18	3/8"-18	24.60	31.00	4.37	10.31	3/4"	Imperial
-01	DAOF5928M-0408IN	9/16"-18	1/2"-14	27.70	37.30	4.37	13.49	7/8"	Imperial
-06	DAOF5928M-0602	11/16"-16	1/8"-27	24.90	22.86	6.71	4.78	19 mm	Metric
-06	DAOF5928M-0604	11/16"-16	1/4"-18	24.90	27.70	6.71	7.14	19 mm	Metric
-06	DAOF5928M-0606	11/16"-16	3/8"-18	24.90	31.00	6.71	10.31	19 mm	Metric
-06	DAOF5928M-0608	11/16"-16	1/2"-14	29.21	37.34	6.71	13.49	22 mm	Metric
-06	DAOF5928M-0612	11/16"-16	3/4"-14	33.50	40.40	6.71	18.26	27 mm	Metric
-06	DAOF5928M-0602IN	11/16"-16	1/8"-27	24.90	22.86	6.71	4.78	3/4"	Imperial
-06	DAOF5928M-0604IN	11/16"-16	1/4"-18	24.90	27.70	6.71	7.14	3/4"	Imperial
-06	DAOF5928M-0606IN	11/16"-16	3/8"-18	24.90	31.00	6.71	10.31	3/4"	Imperial
-06	DAOF5928M-0608IN	11/16"-16	1/2"-14	29.21	37.34	6.71	13.49	7/8"	Imperial
-06	DAOF5928M-0612IN	11/16"-16	3/4"-14	33.50	40.40	6.71	18.26	1-1/16"	Imperial
-08	DAOF5928M-0804	13/16"-16	1/4"-18	27.90	31.00	9.60	7.14	19 mm	Metric
-08	DAOF5928M-0806	13/16"-16	3/8"-18	27.90	31.00	9.60	10.31	19 mm	Metric
-08	DAOF5928M-0808	13/16"-16	1/2"-14	27.97	37.30	9.60	13.49	19 mm	Metric
-08	DAOF5928M-0812	13/16"-16	3/4"-14	33.50	40.40	9.60	18.26	22 mm	Metric
-08	DAOF5928M-0804IN	13/16"-16	1/4"-18	27.90	31.00	9.60	7.14	27 mm	Metric
-08	DAOF5928M-0806IN	13/16"-16	3/8"-18	27.90	31.00	9.60	10.31	3/4"	Imperial
-08	DAOF5928M-0808IN	13/16"-16	1/2"-14	27.97	37.30	9.60	13.49	7/8"	Imperial
-08	DAOF5928M-0812IN	13/16"-16	3/4"-14	33.50	40.40	9.60	18.26	1-1/16"	Imperial
-10	DAOF5928M-1008	1"-14	1/2"-14	33.30	37.30	12.29	13.49	27 mm	Metric
-10	DAOF5928M-1012	1"-14	3/4"-14	35.80	40.40	12.29	18.26	27 mm	Metric
-10	DAOF5928M-1016	1"-14	1"-11-1/2	39.60	50.00	12.29	23.83	33 mm	Metric
-10	DAOF5928M-1008IN	1"-14	1/2"-14	33.30	37.30	12.29	13.49	1-1/16"	Imperial
-10	DAOF5928M-1012IN	1"-14	3/4"-14	35.80	40.40	12.29	18.26	1-1/16"	Imperial
-10	DAOF5928M-1016IN	1"-14	1"-11-1/2	39.60	50.00	12.29	23.83	1-5/16"	Imperial
-12	DAOF5928M-1206	1-3/16"-12	3/8"-18	37.30	37.50	15.47	10.31	30 mm	Metric
-12	DAOF5928M-1208	1-3/16"-12	1/2"-14	37.30	40.40	15.47	13.49	30 mm	Metric
-12	DAOF5928M-1212	1-3/16"-12	3/4"-14	37.30	40.40	15.47	18.26	30 mm	Metric
-12	DAOF5928M-1216	1-3/16"-12	1"-11-1/2	41.20	50.00	15.47	23.83	33 mm	Metric
-12	DAOF5928M-1206IN	1-3/16"-12	3/8"-18	37.30	37.50	15.47	10.31	1-3/16"	Imperial
-12	DAOF5928M-1208IN	1-3/16"-12	1/2"-14	37.30	40.40	15.47	13.49	1-3/16"	Imperial
-12	DAOF5928M-1212IN	1-3/16"-12	3/4"-14	37.30	40.40	15.47	18.26	1-3/16"	Imperial
-12	DAOF5928M-1216IN	1-3/16"-12	1"-11-1/2	41.20	50.00	15.47	23.83	1-5/16"	Imperial
-16	DAOF5928M-1616	1-7/16“-12	1"-11-1/2	41.70	50.00	20.60	23.83	36 mm	Metric
-16	DAOF5928M-1616IN	1-7/16“-12	1"-11-1/2	41.70	50.00	20.60	23.83	1-7/16"	Imperial
-20	DAOF5928M-2016	1-11/16"-12	1"-11-1/2	44.70	59.70	26.00	23.83	41 mm	Metric
-20	DAOF5928M-2020	1-11/16"-12	1-1/4"-11-1/2	44.70	60.50	26.00	31.75	41 mm	Metric
-20	DAOF5928M-2016IN	1-11/16"-12	1"-11-1/2	44.70	59.70	26.00	23.83	1-5/8"	Imperial
-20	DAOF5928M-2020IN	1-11/16"-12	1-1/4"-11-1/2	44.70	60.50	26.00	31.75	1-5/8"	Imperial
-24	DAOF5928M-2424	2"-12	1-1/2"-11-1/2	48.80	67.00	32.00	38.10	50 mm	Metric
-24	DAOF5928M-2424IN	2"-12	1-1/2"-11-1/2	48.80	67.00	32.00	38.10	1-7/8"	Imperial
