DAOF5128M Adaptor – DME&JDE Group

Technical Data of DAOF5128M

* Filter the F1 Thread through selecting the -XX options

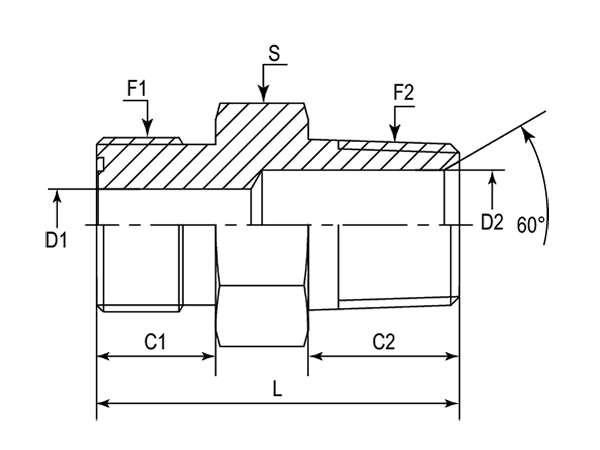

A drawing of DAOF5128M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S	Hex
-	-	UNF	NPTF	mm	mm	mm	mm	mm	-	-
-01	DAOF5128M-0402	9/16"-18	1/8"-27	9.80	9.65	4.37	4.37	27.40	17 mm	Metric
-01	DAOF5128M-0404	9/16"-18	1/4"-18	9.80	14.22	4.37	4.37	32.00	17 mm	Metric
-01	DAOF5128M-0406	9/16"-18	3/8"-18	9.80	14.22	4.37	10.31	32.00	19 mm	Metric
-01	DAOF5128M-0408	9/16"-18	1/2"-14	9.80	19.05	4.37	13.49	38.60	22 mm	Metric
-01	DAOF5128M-0402IN	9/16"-18	1/8"-27	9.80	9.65	4.37	4.37	27.40	5/8"	Imperial
-01	DAOF5128M-0404IN	9/16"-18	1/4"-18	9.80	14.22	4.37	4.37	32.00	5/8"	Imperial
-01	DAOF5128M-0406IN	9/16"-18	3/8"-18	9.80	14.22	4.37	10.31	32.00	3/4"	Imperial
-01	DAOF5128M-0408IN	9/16"-18	1/2"-14	9.80	19.05	4.37	13.49	38.60	7/8"	Imperial
-06	DAOF5128M-0602	11/16"-16	1/8"-27	11.20	9.65	6.71	4.78	29.60	19 mm	Metric
-06	DAOF5128M-0604	11/16"-16	1/4"-18	11.20	14.22	6.71	7.14	34.04	19 mm	Metric
-06	DAOF5128M-0606	11/16"-16	3/8"-18	11.20	14.22	6.50	6.50	34.04	19 mm	Metric
-06	DAOF5128M-0608	11/16"-16	1/2"-14	11.20	19.05	6.71	13.49	40.05	22 mm	Metric
-06	DAOF5128M-0612	11/16"-16	3/4"-14	11.20	19.05	6.71	18.26	41.00	27 mm	Metric
-06	DAOF5128M-0602IN	11/16"-16	1/8"-27	11.20	9.65	6.71	4.78	29.60	3/4"	Imperial
-06	DAOF5128M-0604IN	11/16"-16	1/4"-18	11.20	14.22	6.71	7.14	34.04	3/4"	Imperial
-06	DAOF5128M-0606IN	11/16"-16	3/8"-18	11.20	14.22	6.50	6.50	34.04	3/4"	Imperial
-06	DAOF5128M-0608IN	11/16"-16	1/2"-14	11.20	19.05	6.71	13.49	40.05	7/8"	Imperial
-06	DAOF5128M-0612IN	11/16"-16	3/4"-14	11.20	19.05	6.71	18.26	41.00	1-1/16"	Imperial
-08	DAOF5128M-0804	13/16"-16	1/4"-18	12.80	14.22	9.60	7.14	36.80	22 mm	Metric
-08	DAOF5128M-0806	13/16"-16	3/8"-18	12.80	14.22	9.60	9.60	36.82	22 mm	Metric
-08	DAOF5128M-0808	13/16"-16	1/2"-14	12.80	19.05	9.50	13.49	41.65	22 mm	Metric
-08	DAOF5128M-0812	13/16"-16	3/4"-14	12.80	19.05	9.60	18.26	42.90	27 mm	Metric
-08	DAOF5128M-0816	13/16"-16	1"-11-1/2	12.80	23.88	9.60	23.83	50.00	36 mm	Metric
-08	DAOF5128M-0804IN	13/16"-16	1/4"-18	12.80	14.22	9.60	7.14	36.80	7/8"	Imperial
-08	DAOF5128M-0806IN	13/16"-16	3/8"-18	12.80	14.22	9.60	9.60	36.82	7/8"	Imperial
-08	DAOF5128M-0808IN	13/16"-16	1/2"-14	12.80	19.05	9.50	13.49	41.65	7/8"	Imperial
-08	DAOF5128M-0812IN	13/16"-16	3/4"-14	12.80	19.05	9.60	18.26	42.90	1-1/16"	Imperial
-08	DAOF5128M-0816IN	13/16"-16	1"-11-1/2	12.80	23.88	9.60	23.83	50.00	1-3/8"	Imperial
-10	DAOF5128M-1008	1"-14	1/2"-14	15.49	19.05	12.29	12.29	46.23	27 mm	Metric
-10	DAOF5128M-1012	1"-14	3/4"-14	15.49	19.05	12.29	18.26	46.23	32 mm	Metric
-10	DAOF5128M-1016	1"-14	1"-11-1/2	15.49	23.88	12.29	23.83	50.50	36 mm	Metric
-10	DAOF5128M-1008IN	1"-14	1/2"-14	15.49	19.05	12.29	12.29	46.23	1-1/16"	Imperial
-10	DAOF5128M-1012IN	1"-14	3/4"-14	15.49	19.05	12.29	18.26	46.23	1-1/4"	Imperial
-10	DAOF5128M-1016IN	1"-14	1"-11-1/2	15.49	23.88	12.29	23.83	50.50	1-3/8"	Imperial
-12	DAOF5128M-1208	1-3/16"-12	1/2"-14	17.02	19.05	15.47	13.49	49.20	32 mm	Metric
-12	DAOF5128M-1212	1-3/16"-12	3/4"-14	17.02	19.05	15.47	15.47	49.17	32 mm	Metric
-12	DAOF5128M-1216	1-3/16"-12	1"-11-1/2	17.02	23.88	15.47	23.83	54.20	36 mm	Metric
-12	DAOF5128M-1208IN	1-3/16"-12	1/2"-14	17.02	19.05	15.47	13.49	49.20	1-1/4"	Imperial
-12	DAOF5128M-1212IN	1-3/16"-12	3/4"-14	17.02	19.05	15.47	15.47	49.17	1-1/4"	Imperial
-12	DAOF5128M-1216IN	1-3/16"-12	1"-11-1/2	17.02	23.88	15.47	23.83	54.20	1-3/8"	Imperial
-16	DAOF5128M-1612	1-7/16"-12	3/4"-14	17.50	19.05	20.60	18.26	50.90	41 mm	Metric
-16	DAOF5128M-1616	1-7/16"-12	1"-11-1/2	17.50	23.88	20.60	23.83	55.68	41 mm	Metric
-16	DAOF5128M-1620	1-7/16"-12	1-1/4"-11-1/2	17.50	24.64	20.60	31.75	58.40	46 mm	Metric
-16	DAOF5128M-1624	1-7/16"-12	1-1/2"-11-1/2	17.50	25.40	20.60	20.60	54.40	50 mm	Metric
-16	DAOF5128M-1612IN	1-7/16"-12	3/4"-14	17.50	19.05	20.60	18.26	50.90	1-1/2"	Imperial
-16	DAOF5128M-1616IN	1-7/16"-12	1"-11-1/2	17.50	23.88	20.60	23.83	55.68	1-1/2"	Imperial
-16	DAOF5128M-1620IN	1-7/16"-12	1-1/4"-11-1/2	17.50	24.64	20.60	31.75	58.40	1-11/16"	Imperial
-16	DAOF5128M-1624IN	1-7/16"-12	1-1/2"-11-1/2	17.50	25.40	20.60	20.60	54.40	2"	Imperial
-20	DAOF5128M-2016	1-11/16"-12	1"-11-1/2	17.50	23.88	26.00	23.83	57.70	46 mm	Metric
-20	DAOF5128M-2020	1-11/16"-12	1-1/4"-11-1/2	17.50	24.64	26.00	31.75	58.40	46 mm	Metric
-20	DAOF5128M-2024	1-11/16"-12	1-1/2"-11-1/2	17.50	25.40	26.00	38.10	56.00	50 mm	Metric
-20	DAOF5128M-2016IN	1-11/16"-12	1"-11-1/2	17.50	23.88	26.00	23.83	57.70	1-3/4"	Imperial
-20	DAOF5128M-2020IN	1-11/16"-12	1-1/4"-11-1/2	17.50	24.64	26.00	31.75	58.40	1-3/4"	Imperial
-20	DAOF5128M-2024IN	1-11/16"-12	1-1/2"-11-1/2	17.50	25.40	26.00	38.10	56.00	2"	Imperial
-24	DAOF5128M-2424	2"-12	1-1/2"-11-1/2	17.50	25.40	32.00	38.10	61.00	55 mm	Metric
-24	DAOF5128M-2424IN	2"-12	1-1/2"-11-1/2	17.50	25.40	32.00	38.10	61.00	2-1/8"	Imperial
