* Filter the F1 Thread through selecting the -XX options

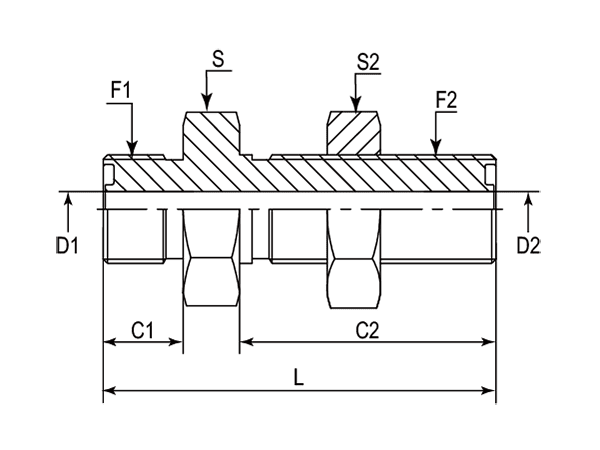

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S | S2 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | mm | - | - | - |
| -01 | DAOF5124T-0404 | 9/16"-18 | 9/16"-18 | 9.80 | 31.50 | 4.37 | 4.37 | 48.26 | 22 mm | 22 mm | Metric |
| -01 | DAOF5124T-0404IN | 9/16"-18 | 9/16"-18 | 9.80 | 31.50 | 4.37 | 4.37 | 48.26 | 13/16" | 13/16" | Imperial |
| -06 | DAOF5124T-0606 | 11/16"-16 | 11/16"-16 | 11.00 | 34.00 | 6.50 | 6.50 | 53.10 | 27 mm | 27 mm | Metric |
| -06 | DAOF5124T-0608 | 11/16"-16 | 13/16"-16 | 11.20 | 36.58 | 6.71 | 9.60 | 56.82 | 27 mm | 30 mm | Metric |
| -06 | DAOF5124T-0606IN | 11/16"-16 | 11/16"-16 | 11.00 | 34.00 | 6.50 | 6.50 | 53.10 | 1" | 1" | Imperial |
| -06 | DAOF5124T-0608IN | 11/16"-16 | 13/16"-16 | 11.20 | 36.58 | 6.71 | 9.60 | 56.82 | 1-1/8" | 1-1/8" | Imperial |
| -08 | DAOF5124T-0806 | 13/16"-16 | 11/16"-16 | 13.00 | 34.00 | 9.50 | 6.50 | 55.50 | 30 mm | 27 mm | Metric |
| -08 | DAOF5124T-0808 | 13/16"-16 | 13/16"-16 | 12.80 | 36.50 | 9.60 | 9.60 | 58.40 | 30 mm | 30 mm | Metric |
| -08 | DAOF5124T-0806IN | 13/16"-16 | 11/16"-16 | 13.00 | 34.00 | 9.50 | 6.50 | 55.50 | 1" | 1" | Imperial |
| -08 | DAOF5124T-0808IN | 13/16"-16 | 13/16"-16 | 12.80 | 36.50 | 9.60 | 9.60 | 58.40 | 1-1/8" | 1-1/8" | Imperial |
| -10 | DAOF5124T-1010 | 1"-14 | 1"-14 | 15.49 | 40.64 | 12.29 | 12.29 | 66.55 | 36 mm | 36 mm | Metric |
| -10 | DAOF5124T-1010IN | 1"-14 | 1"-14 | 15.49 | 40.64 | 12.29 | 12.29 | 66.55 | 1-5/16" | 1-5/16" | Imperial |
| -12 | DAOF5124T-1212 | 1-3/16"-12 | 1-3/16"-12 | 17.02 | 41.66 | 15.47 | 15.47 | 69.09 | 41 mm | 41 mm | Metric |
| -12 | DAOF5124T-1212IN | 1-3/16"-12 | 1-3/16"-12 | 17.02 | 41.66 | 15.47 | 15.47 | 69.09 | 1-1/2" | 1-1/2" | Imperial |
| -16 | DAOF5124T-1616 | 1-7/16"-12 | 1-7/16"-12 | 17.50 | 42.16 | 20.60 | 20.60 | 70.10 | 46 mm | 46 mm | Metric |
| -16 | DAOF5124T-1616IN | 1-7/16"-12 | 1-7/16"-12 | 17.50 | 42.16 | 20.60 | 20.60 | 70.10 | 1-3/4" | 1-3/4" | Imperial |
| -20 | DAOF5124T-2020 | 1-11/16"-12 | 1-11/16"-12 | 17.50 | 42.16 | 26.00 | 26.00 | 70.10 | 50 mm | 50 mm | Metric |
| -20 | DAOF5124T-2020IN | 1-11/16"-12 | 1-11/16"-12 | 17.50 | 42.16 | 26.00 | 26.00 | 70.10 | 2" | 2" | Imperial |
| -24 | DAOF5124T-2424 | 2"-12 | 2"-12 | 17.50 | 42.16 | 32.00 | 32.00 | 70.10 | 60 mm | 60 mm | Metric |
| -24 | DAOF5124T-2424IN | 2"-12 | 2"-12 | 17.50 | 42.16 | 32.00 | 32.00 | 70.10 | 2-3/8" | 2-3/8" | Imperial |
