DAOF5L241 Adaptor – DME&JDE Group

Technical Data of DAOF5L241

* Filter the F1 Thread through selecting the -XX options

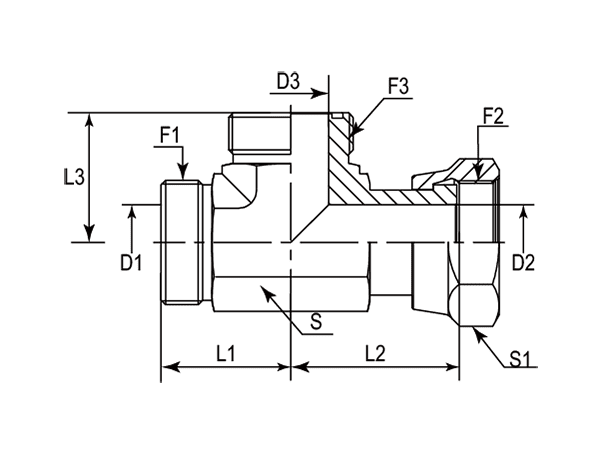

A drawing of DAOF5L241 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1	Hex
-	-	UNF	UNF	UNF	mm	mm	mm	mm	mm	mm	-	-	-
-01	DAOF5L241-0404	9/16"-18	9/16"-18	9/16"-18	21.60	26.40	21.60	4.37	4.19	4.37	14 mm	17 mm	Metric
-01	DAOF5L241-0404IN	9/16"-18	9/16"-18	9/16"-18	21.60	26.40	21.60	4.37	4.19	4.37	9/16"	11/16"	Imperial
-06	DAOF5L241-0606	11/16"-16	11/16"-16	11/16"-16	24.89	29.21	24.89	6.71	6.71	6.71	19 mm	22 mm	Metric
-06	DAOF5L241-0606IN	11/16"-16	11/16"-16	11/16"-16	24.89	29.21	24.89	6.71	6.71	6.71	3/4"	13/16"	Imperial
-08	DAOF5L241-0808	13/16"-16	13/16"-16	13/16"-16	27.94	37.85	27.94	9.60	9.09	9.60	19 mm	24 mm	Metric
-08	DAOF5L241-0808IN	13/16"-16	13/16"-16	13/16"-16	27.94	37.85	27.94	9.60	9.09	9.60	3/4"	15/16"	Imperial
-10	DAOF5L241-1010	1"-14	1"-14	1"-14	33.50	41.00	33.50	12.50	11.51	12.50	27 mm	30 mm	Metric
-10	DAOF5L241-1010IN	1"-14	1"-14	1"-14	33.50	41.00	33.50	12.50	11.51	12.50	1-1/16"	1-1/8"	Imperial
-12	DAOF5L241-1212	1-3/16"-12	1-3/16"-12	1-3/16"-12	37.50	46.50	37.50	15.47	13.89	15.47	30 mm	36 mm	Metric
-12	DAOF5L241-1212IN	1-3/16"-12	1-3/16"-12	1-3/16"-12	37.50	46.50	37.50	15.47	13.89	15.47	1-3/16"	1-3/8"	Imperial
-16	DAOF5L241-1616	1-7/16"-12	1-7/16"-12	1-7/16"-12	41.66	53.34	41.66	20.50	19.89	20.50	36 mm	41 mm	Metric
-16	DAOF5L241-1616IN	1-7/16"-12	1-7/16"-12	1-7/16"-12	41.66	53.34	41.66	20.50	19.89	20.50	1-7/16"	1-5/8"	Imperial
-20	DAOF5L241-2020	1-11/16"-12	1-11/16"-12	1-11/16"-12	44.70	58.17	44.70	26.00	26.01	26.00	41 mm	50 mm	Metric
-20	DAOF5L241-2020IN	1-11/16"-12	1-11/16"-12	1-11/16"-12	44.70	58.17	44.70	26.00	26.01	26.00	1-5/8"	1-7/8"	Imperial
-24	DAOF5L241-2424	2"-12	2"-12	2"-12	48.80	61.21	48.80	32.00	32.00	32.00	50 mm	60 mm	Metric
-24	DAOF5L241-2424IN	2"-12	2"-12	2"-12	48.80	61.21	48.80	32.00	32.00	32.00	1-7/8"	2-1/4"	Imperial
