DAOF5906J 90° Adjustable Long Elbow ORFS Male - BSPP Male + O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • 9Adaptor Structure90° Elbow
  • 06Thread TypesBSPP UNF
  • JConnection TypeMale + O Ring
  • DME&JDE Code: DAOF5906J
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: UNF × BSPP
  • Sealing Method: Long O Rings
Technical Data of DAOF5906J
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

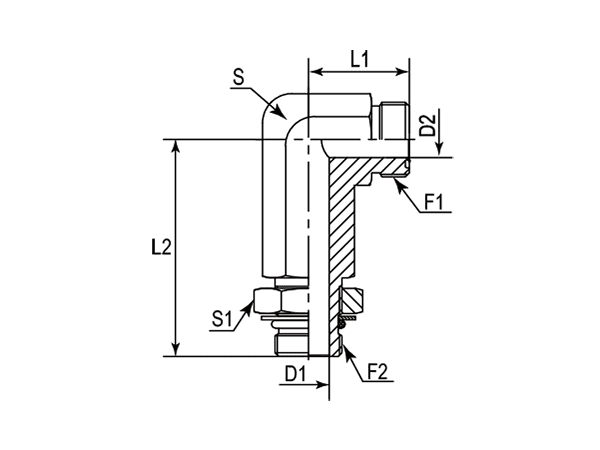

A drawing of DAOF5906J hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1
- - UNF BSPP mm mm mm mm mm mm
-01 DAOF5906J-0404 9/16"-18 1/4"-19 23.50 59.00 4.37 7.50 14.00 19.00
-01 DAOF5906J-0406 9/16"-18 3/8"-19 25.00 62.00 4.37 9.90 19.00 22.00
-06 DAOF5906J-0606 11/16"-16 3/8"-19 26.50 67.00 6.71 9.90 19.00 22.00
-06 DAOF5906J-0608 11/16"-16 1/2"-14 29.50 77.00 6.71 12.30 22.00 27.00
-08 DAOF5906J-0806 13/16"-16 3/8"-19 28.00 73.00 9.60 9.90 19.00 22.00
-08 DAOF5906J-0808 13/16"-16 1/2"-14 31.00 82.00 9.60 12.30 22.00 27.00
-10 DAOF5906J-1008 1"-14 1/2"-14 33.50 87.00 12.29 12.30 27.00 27.00
-10 DAOF5906J-1012 1"-14 3/4"-14 36.00 90.00 12.29 15.50 27.00 32.00
-12 DAOF5906J-1212 1-3/16"-12 3/4"-14 37.50 97.00 15.47 15.50 30.00 32.00
-12 DAOF5906J-1216 1-3/16"-12 1"-11 41.50 104.00 15.47 21.50 36.00 41.00
-16 DAOF5906J-1616 1-7/16"-12 1"-11 42.00 112.00 20.60 21.50 36.00 41.00
-16 DAOF5906J-1620 1-7/16"-12 1-1/4"-11 45.00 114.00 20.60 27.50 41.00 50.00
-20 DAOF5906J-2020 1-11/16"-12 1-1/4"-11 45.00 124.00 26.00 27.50 41.00 50.00
-20 DAOF5906J-2024 1-11/16"-12 1-1/2"-11 49.00 128.00 26.00 33.00 48.00 55.00
-24 DAOF5906J-2424 2"-12 1-1/2"-11 49.00 137.00 32.00 33.00 48.00 55.00
