* Filter the F1 Thread through selecting the -XX options

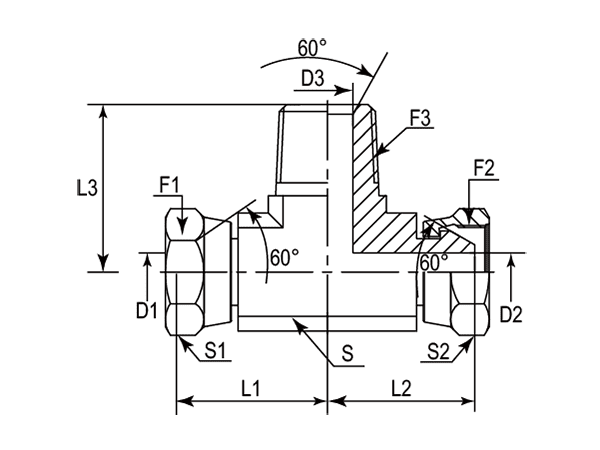

| - | Part Number | F1 (Thread) | F2 (Thread) | F3 (Thread) | L1 | L2 | L3 | D1 | D2 | D3 | S | S1 | S2 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | NPSM | NPSM | NPTF | mm | mm | mm | mm | mm | mm | - | - | - | - |
| -01 | DANPST28M-0202 | 1/8"-27 | 1/8"-27 | 1/8"-27 | 17.80 | 17.80 | 18.30 | 2.79 | 2.79 | 4.78 | 11 mm | 14 mm | 14 mm | Metric |
| -01 | DANPST28M-0202IN | 1/8"-27 | 1/8"-27 | 1/8"-27 | 17.80 | 17.80 | 18.30 | 2.79 | 2.79 | 4.78 | 7/16" | 9/16" | 9/16" | Imperial |
| -04 | DANPST28M-0404 | 1/4"-18 | 1/4"-18 | 1/4"-18 | 22.35 | 22.35 | 27.70 | 5.33 | 5.33 | 7.14 | 14 mm | 19 mm | 19 mm | Metric |
| -04 | DANPST28M-0406 | 1/4"-18 | 1/4"-18 | 3/8"-18 | 24.00 | 24.00 | 31.00 | 5.33 | 5.33 | 10.31 | 19 mm | 19 mm | 19 mm | Metric |
| -04 | DANPST28M-0408 | 1/4"-18 | 1/4"-18 | 1/2"-14 | 24.30 | 24.30 | 37.30 | 5.33 | 5.33 | 13.49 | 22 mm | 19 mm | 19 mm | Metric |
| -04 | DANPST28M-0404IN | 1/4"-18 | 1/4"-18 | 1/4"-18 | 22.35 | 22.35 | 27.70 | 5.33 | 5.33 | 7.14 | 9/16" | 11/16" | 11/16" | Imperial |
| -04 | DANPST28M-0406IN | 1/4"-18 | 1/4"-18 | 3/8"-18 | 24.00 | 24.00 | 31.00 | 5.33 | 5.33 | 10.31 | 3/4" | 11/16" | 11/16" | Imperial |
| -04 | DANPST28M-0408IN | 1/4"-18 | 1/4"-18 | 1/2"-14 | 24.30 | 24.30 | 37.30 | 5.33 | 5.33 | 13.49 | 7/8" | 11/16" | 11/16" | Imperial |
| -06 | DANPST28M-0604 | 3/8"-18 | 3/8"-18 | 1/4"-18 | 25.00 | 25.00 | 31.00 | 8.13 | 8.13 | 7.14 | 19 mm | 22 mm | 22 mm | Metric |
| -06 | DANPST28M-0606 | 3/8"-18 | 3/8"-18 | 3/8"-18 | 22.60 | 22.60 | 31.00 | 8.13 | 8.13 | 10.31 | 19 mm | 22 mm | 22 mm | Metric |
| -06 | DANPST28M-0608 | 3/8"-18 | 3/8"-18 | 1/2"-14 | 26.41 | 26.41 | 37.30 | 8.13 | 8.13 | 13.49 | 22 mm | 22 mm | 22 mm | Metric |
| -06 | DANPST28M-0604IN | 3/8"-18 | 3/8"-18 | 1/4"-18 | 25.00 | 25.00 | 31.00 | 8.13 | 8.13 | 7.14 | 3/4" | 7/8" | 7/8" | Imperial |
| -06 | DANPST28M-0606IN | 3/8"-18 | 3/8"-18 | 3/8"-18 | 22.60 | 22.60 | 31.00 | 8.13 | 8.13 | 10.31 | 3/4" | 7/8" | 7/8" | Imperial |
| -06 | DANPST28M-0608IN | 3/8"-18 | 3/8"-18 | 1/2"-14 | 26.41 | 26.41 | 37.30 | 8.13 | 8.13 | 13.49 | 7/8" | 7/8" | 7/8" | Imperial |
| -08 | DANPST28M-0806 | 1/2"-14 | 1/2"-14 | 3/8"-18 | 28.19 | 28.19 | 37.30 | 11.18 | 11.18 | 10.31 | 22 mm | 27 mm | 27 mm | Metric |
| -08 | DANPST28M-0808 | 1/2"-14 | 1/2"-14 | 1/2"-14 | 28.20 | 28.20 | 37.30 | 11.18 | 11.18 | 13.49 | 22 mm | 27 mm | 27 mm | Metric |
| -08 | DANPST28M-0812 | 1/2"-14 | 1/2"-14 | 3/4"-14 | 33.78 | 33.78 | 40.40 | 11.18 | 11.18 | 18.26 | 27 mm | 27 mm | 27 mm | Metric |
| -08 | DANPST28M-0806IN | 1/2"-14 | 1/2"-14 | 3/8"-18 | 28.19 | 28.19 | 37.30 | 11.18 | 11.18 | 10.31 | 7/8" | 1" | 1" | Imperial |
| -08 | DANPST28M-0808IN | 1/2"-14 | 1/2"-14 | 1/2"-14 | 28.20 | 28.20 | 37.30 | 11.18 | 11.18 | 13.49 | 7/8" | 1" | 1" | Imperial |
| -08 | DANPST28M-0812IN | 1/2"-14 | 1/2"-14 | 3/4"-14 | 33.78 | 33.78 | 40.40 | 11.18 | 11.18 | 18.26 | 1-1/16" | 1" | 1" | Imperial |
| -12 | DANPST28M-1212 | 3/4"-14 | 3/4"-14 | 3/4"-14 | 33.00 | 33.00 | 40.40 | 15.49 | 15.49 | 18.26 | 27 mm | 32 mm | 32 mm | Metric |
| -12 | DANPST28M-1216 | 3/4"-14 | 3/4"-14 | 1"-11-1/2 | 36.30 | 36.30 | 50.00 | 15.49 | 15.49 | 23.83 | 33 mm | 32 mm | 32 mm | Metric |
| -12 | DANPST28M-1212IN | 3/4"-14 | 3/4"-14 | 3/4"-14 | 33.00 | 33.00 | 40.40 | 15.49 | 15.49 | 18.26 | 1-1/16" | 1-1/4" | 1-1/4" | Imperial |
| -12 | DANPST28M-1216IN | 3/4"-14 | 3/4"-14 | 1"-11-1/2 | 36.30 | 36.30 | 50.00 | 15.49 | 15.49 | 23.83 | 1-5/16" | 1-1/4" | 1-1/4" | Imperial |
| -16 | DANPST28M-1612 | 1"-11-1/2 | 1"-11-1/2 | 3/4"-14 | 39.62 | 39.62 | 50.00 | 19.81 | 19.81 | 18.26 | 33 mm | 41 mm | 41 mm | Metric |
| -16 | DANPST28M-1616 | 1"-11-1/2 | 1"-11-1/2 | 1"-11-1/2 | 39.12 | 39.12 | 50.00 | 19.81 | 19.81 | 23.83 | 33 mm | 41 mm | 41 mm | Metric |
| -16 | DANPST28M-1612IN | 1"-11-1/2 | 1"-11-1/2 | 3/4"-14 | 39.62 | 39.62 | 50.00 | 19.81 | 19.81 | 18.26 | 1-5/16" | 1-1/2" | 1-1/2" | Imperial |
| -16 | DANPST28M-1616IN | 1"-11-1/2 | 1"-11-1/2 | 1"-11-1/2 | 39.12 | 39.12 | 50.00 | 19.81 | 19.81 | 23.83 | 1-5/16" | 1-1/2" | 1-1/2" | Imperial |
| -20 | DANPST28M-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 43.90 | 43.90 | 60.50 | 25.65 | 25.65 | 31.75 | 41 mm | 50 mm | 50 mm | Metric |
| -20 | DANPST28M-2020IN | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 43.90 | 43.90 | 60.50 | 25.65 | 25.65 | 31.75 | 1-5/8" | 1-7/8" | 1-7/8" | Imperial |
| -24 | DANPST28M-2424 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 48.01 | 48.01 | 67.10 | 31.75 | 31.75 | 38.10 | 50 mm | 55 mm | 55 mm | Metric |
| -24 | DANPST28M-2424IN | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 48.01 | 48.01 | 67.10 | 31.75 | 31.75 | 38.10 | 1-7/8" | 2-1/8" | 2-1/8" | Imperial |
