DANPP9091 90° Long Elbow Connector NPTF Male 60° - NPSM Swivel Female 60° Cone

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • PConnection TypeLong +Male
  • 9Adaptor Structure90° Elbow
  • 091Connection TypeNPSM Swivel Female
  • DME&JDE Code: DANPP9091
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: 90° Elbow
  • Connection Type: Male × Swivel Female
  • Thread Types: NPTF 60° × NPSM 60° Cone
Technical Data of DANPP9091
  • -02
  • -06
  • -08
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

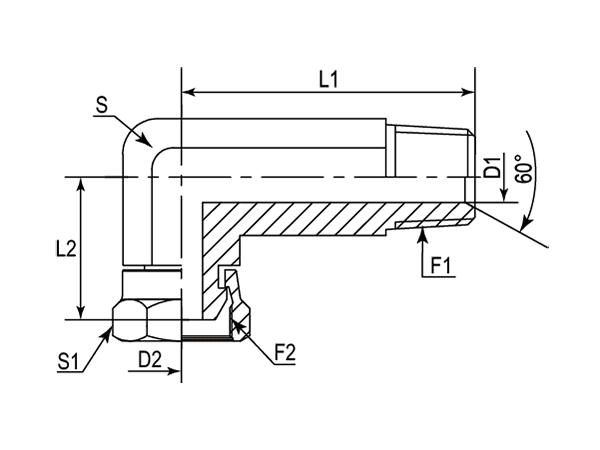

A drawing of DANPP9091 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1 Hex
- - NPTF NPSM mm mm mm mm - - -
-01 DANPP9091-0202 1/8"-27 1/8"-27 41.70 18.80 4.78 2.79 11 mm 14 mm Metric
-01 DANPP9091-0202IN 1/8"-27 1/8"-27 41.70 18.80 4.78 2.79 7/16" 9/16" Imperial
-04 DANPP9091-0404 1/4"-18 1/4"-18 7.14 5.33 57.15 23.88 14 mm 19 mm Metric
-04 DANPP9091-0404IN 1/4"-18 1/4"-18 7.14 5.33 57.15 23.88 9/16" 11/16" Imperial
-06 DANPP9091-0606 3/8"-18 3/8"-18 70.10 28.45 10.31 8.13 19 mm 22 mm Metric
-06 DANPP9091-0608 3/8"-18 1/2"-14 76.20 28.19 10.31 11.18 22 mm 27 mm Metric
-06 DANPP9091-0606IN 3/8"-18 3/8"-18 70.10 28.45 10.31 8.13 3/4" 7/8" Imperial
-06 DANPP9091-0608IN 3/8"-18 1/2"-14 76.20 28.19 10.31 11.18 7/8" 1" Imperial
-08 DANPP9091-0806 1/2"-14 3/8"-18 81.00 26.41 13.49 8.13 22 mm 22 mm Metric
-08 DANPP9091-0808 1/2"-14 1/2"-14 81.00 28.19 13.49 11.18 22 mm 27 mm Metric
-08 DANPP9091-0806IN 1/2"-14 3/8"-18 81.00 26.41 13.49 8.13 7/8" 7/8" Imperial
-08 DANPP9091-0808IN 1/2"-14 1/2"-14 81.00 28.19 13.49 11.18 7/8" 1" Imperial
-12 DANPP9091-1212 3/4"-14 3/4"-14 93.00 33.02 18.26 16.13 27 mm 32 mm Metric
-12 DANPP9091-1212IN 3/4"-14 3/4"-14 93.00 33.02 18.26 16.13 1-1/16" 1-1/4" Imperial
-16 DANPP9091-1616 1"-11-1/2 1"-11-1/2 110.00 39.12 23.83 19.81 33 mm 41 mm Metric
-16 DANPP9091-1616IN 1"-11-1/2 1"-11-1/2 110.00 39.12 23.83 19.81 1-5/16" 1-1/2" Imperial
