DANPM152M Straight Connector NPTF Male 60° - Metric Male 60° Cone

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 52Thread TypesMetric
  • MConnection TypeMale
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: NPTF 60° × Metric 60° Cone
Technical Data of DANPM152M
  • -06

* Filter the F1 Thread through selecting the -XX options

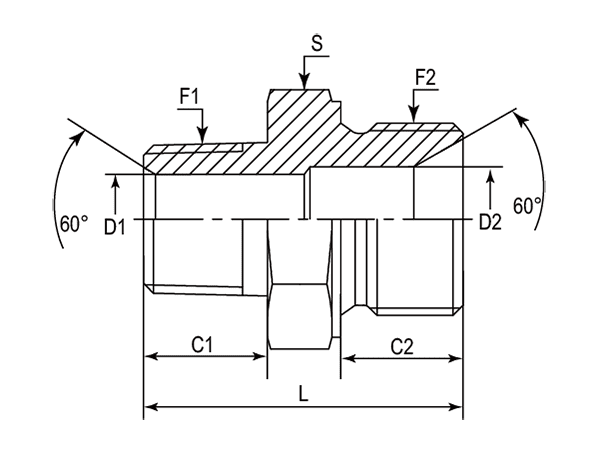

A drawing of DANPM152M hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - NPTF Metric mm mm mm mm mm mm
-01 DANPM152M-0622 3/8"-18 M22X1.5 14.22 14.00 10.31 12.00 36.60 27.00
