DANPM9091-LL 90° X-Long Elbow Connector NPTF Male 60° - NPSM Swivel Female 60° Cone

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 091Connection TypeNPSM Swivel Female
  • LLElbow TypeX-Long
  • DME&JDE Code: DANPM9091-LL
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: 90° Elbow
  • Connection Type: Male × Swivel Female
  • Thread Types: NPTF 60° × NPSM 60° Cone
Technical Data of DANPM9091-LL
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

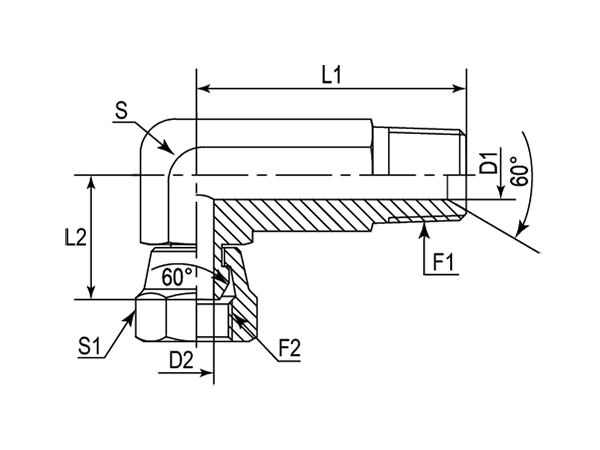

A drawing of DANPM9091-LL hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) D1 D2 L1 L2 S S1 Cross Number
- - NPTF NPSM mm mm mm mm mm mm -
-01 DANPM9091-LL-0202 1/8"-27 1/8"-27 4.78 2.79 41.66 18.80 11.10 14.27 1501-LL-0202
-04 DANPM9091-LL-0404 1/4"-18 1/4"-18 7.14 5.33 57.15 23.88 14.28 17.48 1501-LL-0404
-06 DANPM9091-LL-0606 3/8"-18 3/8"-18 10.31 8.13 70.10 28.45 19.05 22.23 1501-LL-0606
-06 DANPM9091-LL-0608 3/8"-18 1/2"-14 10.31 11.18 76.20 28.19 22.22 25.40 1501-LL-0608
-08 DANPM9091-LL-0806 1/2"-14 3/8"-18 13.49 8.13 81.00 26.41 22.22 22.23 1501-LL-0806
-08 DANPM9091-LL-0808 1/2"-14 1/2"-14 13.49 11.18 81.00 28.19 22.22 25.40 1501-LL-0808
-12 DANPM9091-LL-1212 3/4"-14 3/4"-14 18.26 16.13 93.00 33.02 26.97 31.75 1501-LL-1212
-16 DANPM9091-LL-1616 1"-11-1/2 1"-11-1/2 23.83 19.81 110.00 39.12 33.32 38.10 1501-LL-1616
