* Filter the F1 Thread through selecting the -XX options

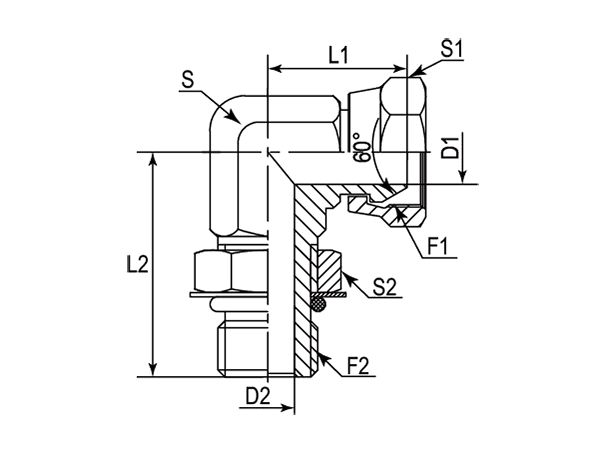

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 | S2 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | NPSM | UNF | mm | mm | mm | mm | - | - | - | - |
| -01 | DANPS9305-0204 | 1/8"-27 | 7/16"-20 | 17.80 | 26.20 | 2.79 | 4.37 | 11 mm | 14 mm | 14 mm | Metric |
| -01 | DANPS9305-0204IN | 1/8"-27 | 7/16"-20 | 17.80 | 26.20 | 2.79 | 4.37 | 7/16" | 9/16" | 9/16" | Imperial |
| -04 | DANPS9305-0404 | 1/4"-18 | 7/16"-20 | 20.14 | 30.20 | 5.33 | 4.37 | 14 mm | 19 mm | 14 mm | Metric |
| -04 | DANPS9305-0406 | 1/4"-18 | 9/16"-18 | 22.35 | 31.80 | 5.33 | 7.54 | 14 mm | 19 mm | 17 mm | Metric |
| -04 | DANPS9305-0408 | 1/4"-18 | 3/4"-16 | 24.63 | 36.80 | 5.33 | 9.93 | 19 mm | 19 mm | 22 mm | Metric |
| -04 | DANPS9305-0410 | 1/4"-18 | 7/8"-14 | 26.23 | 43.20 | 5.33 | 12.29 | 22 mm | 19 mm | 27 mm | Metric |
| -04 | DANPS9305-0404IN | 1/4"-18 | 7/16"-20 | 20.14 | 30.20 | 5.33 | 4.37 | 9/16" | 11/16" | 9/16" | Imperial |
| -04 | DANPS9305-0406IN | 1/4"-18 | 9/16"-18 | 22.35 | 31.80 | 5.33 | 7.54 | 9/16" | 11/16" | 11/16" | Imperial |
| -04 | DANPS9305-0408IN | 1/4"-18 | 3/4"-16 | 24.63 | 36.80 | 5.33 | 9.93 | 3/4" | 11/16" | 7/8" | Imperial |
| -04 | DANPS9305-0410IN | 1/4"-18 | 7/8"-14 | 26.23 | 43.20 | 5.33 | 12.29 | 7/8" | 11/16" | 1" | Imperial |
| -06 | DANPS9305-0604 | 3/8"-18 | 7/16"-20 | 24.20 | 32.00 | 8.13 | 4.37 | 19 mm | 22 mm | 14 mm | Metric |
| -06 | DANPS9305-0606 | 3/8"-18 | 9/16"-18 | 22.86 | 31.75 | 8.13 | 7.54 | 14 mm | 22 mm | 17 mm | Metric |
| -06 | DANPS9305-0608 | 3/8"-18 | 3/4"-16 | 25.20 | 36.80 | 8.13 | 9.93 | 19 mm | 22 mm | 22 mm | Metric |
| -06 | DANPS9305-0610 | 3/8"-18 | 7/8"-14 | 26.92 | 43.20 | 8.13 | 12.29 | 22 mm | 22 mm | 27 mm | Metric |
| -06 | DANPS9305-0612 | 3/8"-18 | 1-1/16"-12 | 32.00 | 49.30 | 8.13 | 15.47 | 27 mm | 22 mm | 32 mm | Metric |
| -06 | DANPS9305-0604IN | 3/8"-18 | 7/16"-20 | 24.20 | 32.00 | 8.13 | 4.37 | 3/4" | 7/8" | 9/16" | Imperial |
| -06 | DANPS9305-0606IN | 3/8"-18 | 9/16"-18 | 22.86 | 31.75 | 8.13 | 7.54 | 9/16" | 7/8" | 11/16" | Imperial |
| -06 | DANPS9305-0608IN | 3/8"-18 | 3/4"-16 | 25.20 | 36.80 | 8.13 | 9.93 | 3/4" | 7/8" | 7/8" | Imperial |
| -06 | DANPS9305-0610IN | 3/8"-18 | 7/8"-14 | 26.92 | 43.20 | 8.13 | 12.29 | 7/8" | 7/8" | 1" | Imperial |
| -06 | DANPS9305-0612IN | 3/8"-18 | 1-1/16"-12 | 32.00 | 49.30 | 8.13 | 15.47 | 1-1/16" | 7/8" | 1-1/4" | Imperial |
| -08 | DANPS9305-0804 | 1/2"-14 | 7/16"-20 | 26.50 | 32.00 | 11.18 | 4.37 | 19 mm | 27 mm | 14 mm | Metric |
| -08 | DANPS9305-0806 | 1/2"-14 | 9/16"-18 | 26.42 | 35.81 | 11.18 | 7.54 | 19 mm | 27 mm | 17 mm | Metric |
| -08 | DANPS9305-0808 | 1/2"-14 | 3/4"-16 | 26.41 | 36.83 | 11.18 | 9.93 | 19 mm | 27 mm | 22 mm | Metric |
| -08 | DANPS9305-0810 | 1/2"-14 | 7/8"-14 | 28.19 | 43.20 | 11.18 | 12.29 | 22 mm | 27 mm | 27 mm | Metric |
| -08 | DANPS9305-0812 | 1/2"-14 | 1-1/16"-12 | 33.78 | 49.20 | 11.18 | 15.47 | 27 mm | 27 mm | 32 mm | Metric |
| -08 | DANPS9305-0804IN | 1/2"-14 | 7/16"-20 | 26.50 | 32.00 | 11.18 | 4.37 | 3/4" | 1" | 9/16" | Imperial |
| -08 | DANPS9305-0806IN | 1/2"-14 | 9/16"-18 | 26.42 | 35.81 | 11.18 | 7.54 | 3/4" | 1" | 11/16" | Imperial |
| -08 | DANPS9305-0808IN | 1/2"-14 | 3/4"-16 | 26.41 | 36.83 | 11.18 | 9.93 | 3/4" | 1" | 7/8" | Imperial |
| -08 | DANPS9305-0810IN | 1/2"-14 | 7/8"-14 | 28.19 | 43.20 | 11.18 | 12.29 | 7/8" | 1" | 1" | Imperial |
| -08 | DANPS9305-0812IN | 1/2"-14 | 1-1/16"-12 | 33.78 | 49.20 | 11.18 | 15.47 | 1-1/16" | 1" | 1-1/4" | Imperial |
| -12 | DANPS9305-1208 | 3/4"-14 | 3/4"-16 | 33.02 | 41.20 | 15.49 | 9.93 | 27 mm | 32 mm | 22 mm | Metric |
| -12 | DANPS9305-1210 | 3/4"-14 | 7/8"-14 | 32.50 | 45.21 | 15.49 | 12.29 | 27 mm | 32 mm | 27 mm | Metric |
| -12 | DANPS9305-1212 | 3/4"-14 | 1-1/16"-12 | 33.30 | 49.20 | 15.49 | 15.47 | 27 mm | 32 mm | 32 mm | Metric |
| -12 | DANPS9305-1214 | 3/4"-14 | 1-3/16"-12 | 35.60 | 50.80 | 15.49 | 18.26 | 33 mm | 32 mm | 36 mm | Metric |
| -12 | DANPS9305-1216 | 3/4"-14 | 1-5/16"-12 | 35.50 | 52.10 | 15.49 | 21.44 | 33 mm | 32 mm | 41 mm | Metric |
| -12 | DANPS9305-1220 | 3/4"-14 | 1-5/8"-12 | 40.50 | 57.20 | 15.49 | 27.38 | 41 mm | 32 mm | 50 mm | Metric |
| -12 | DANPS9305-1208IN | 3/4"-14 | 3/4"-16 | 33.02 | 41.20 | 15.49 | 9.93 | 1-1/16" | 1-1/4" | 7/8" | Imperial |
| -12 | DANPS9305-1210IN | 3/4"-14 | 7/8"-14 | 32.50 | 45.21 | 15.49 | 12.29 | 1-1/16" | 1-1/4" | 1" | Imperial |
| -12 | DANPS9305-1212IN | 3/4"-14 | 1-1/16"-12 | 33.30 | 49.20 | 15.49 | 15.47 | 1-1/16" | 1-1/4" | 1-1/4" | Imperial |
| -12 | DANPS9305-1214IN | 3/4"-14 | 1-3/16"-12 | 35.60 | 50.80 | 15.49 | 18.26 | 1-5/16" | 1-1/4" | 1-3/8" | Imperial |
| -12 | DANPS9305-1216IN | 3/4"-14 | 1-5/16"-12 | 35.50 | 52.10 | 15.49 | 21.44 | 1-5/16" | 1-1/4" | 1-1/2" | Imperial |
| -12 | DANPS9305-1220IN | 3/4"-14 | 1-5/8"-12 | 40.50 | 57.20 | 15.49 | 27.38 | 1-5/8" | 1-1/4" | 1-7/8" | Imperial |
| -16 | DANPS9305-1612 | 1"-11-1/2 | 1-1/16"-12 | 39.12 | 52.10 | 19.81 | 15.47 | 33 mm | 41 mm | 32 mm | Metric |
| -16 | DANPS9305-1616 | 1"-11-1/2 | 1-5/16"-12 | 39.12 | 52.10 | 19.81 | 21.44 | 33 mm | 41 mm | 41 mm | Metric |
| -16 | DANPS9305-1620 | 1"-11-1/2 | 1-5/8"-12 | 44.50 | 57.20 | 19.81 | 27.38 | 41 mm | 41 mm | 50 mm | Metric |
| -16 | DANPS9305-1612IN | 1"-11-1/2 | 1-1/16"-12 | 39.12 | 52.10 | 19.81 | 15.47 | 1-5/16" | 1-1/2" | 1-1/4" | Imperial |
| -16 | DANPS9305-1616IN | 1"-11-1/2 | 1-5/16"-12 | 39.12 | 52.10 | 19.81 | 21.44 | 1-5/16" | 1-1/2" | 1-1/2" | Imperial |
| -16 | DANPS9305-1620IN | 1"-11-1/2 | 1-5/8"-12 | 44.50 | 57.20 | 19.81 | 27.38 | 1-5/8" | 1-1/2" | 1-7/8" | Imperial |
| -20 | DANPS9305-2020 | 1-1/4"-11-1/2 | 1-5/8"-12 | 45.20 | 57.20 | 25.65 | 27.38 | 41 mm | 50 mm | 50 mm | Metric |
| -20 | DANPS9305-2020IN | 1-1/4"-11-1/2 | 1-5/8"-12 | 45.20 | 57.20 | 25.65 | 27.38 | 1-5/8" | 1-7/8" | 1-7/8" | Imperial |
| -24 | DANPS9305-2424 | 1-1/2"-11-1/2 | 1-7/8"-12 | 48.01 | 60.70 | 31.75 | 33.32 | 50 mm | 55 mm | 55 mm | Metric |
| -24 | DANPS9305-2424IN | 1-1/2"-11-1/2 | 1-7/8"-12 | 48.01 | 60.70 | 31.75 | 33.32 | 1-7/8" | 2-1/8" | 2-1/8" | Imperial |
| -32 | DANPS9305-3232 | 2"-11-1/2 | 2-1/2"-12 | 61.60 | 73.40 | 43.69 | 45.24 | 60 mm | 65 mm | 70 mm | Metric |
| -32 | DANPS9305-3232IN | 2"-11-1/2 | 2-1/2"-12 | 61.60 | 73.40 | 43.69 | 45.24 | 2-1/2" | 2-5/8" | 2-3/4" | Imperial |
