* Filter the F1 Thread through selecting the -XX options

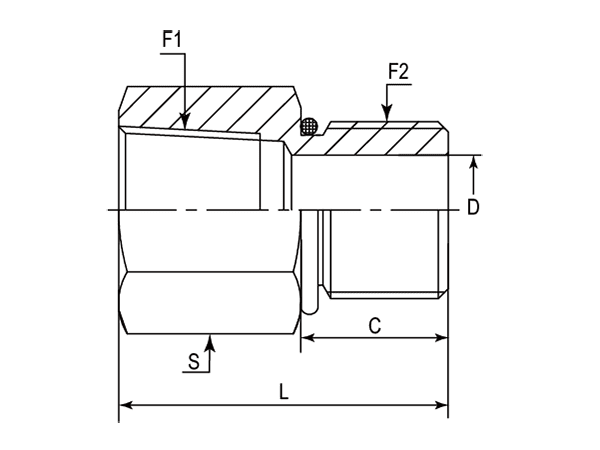

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S | Hex |
|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | UNF | mm | mm | mm | - | - |
| -01 | DANPF1305-0202 | 1/8"-27 | 5/16"-24 | 7.54 | 1.57 | 24.13 | 14 mm | Metric |
| -01 | DANPF1305-0203 | 1/8"-27 | 3/8"-24 | 7.54 | 3.18 | 24.10 | 14 mm | Metric |
| -01 | DANPF1305-0204 | 1/8"-27 | 7/16"-20 | 9.14 | 4.37 | 25.40 | 14 mm | Metric |
| -01 | DANPF1305-0205 | 1/8"-27 | 1/2"-20 | 9.14 | 5.94 | 25.15 | 17 mm | Metric |
| -01 | DANPF1305-0206 | 1/8"-27 | 9/16"-18 | 9.93 | 7.54 | 26.00 | 17 mm | Metric |
| -01 | DANPF1305-0208 | 1/8"-27 | 3/4"-16 | 11.13 | 9.93 | 27.90 | 22 mm | Metric |
| -01 | DANPF1305-0210 | 1/8"-27 | 7/8"-14 | 12.70 | 10.70 | 20.50 | 27 mm | Metric |
| -01 | DANPF1305-0212 | 1/8"-27 | 1-1/16"-12 | 15.09 | 15.47 | 27.70 | 32 mm | Metric |
| -01 | DANPF1305-0202IN | 1/8"-27 | 5/16"-24 | 7.54 | 1.57 | 24.13 | 9/16" | Imperial |
| -01 | DANPF1305-0203IN | 1/8"-27 | 3/8"-24 | 7.54 | 3.18 | 24.10 | 9/16" | Imperial |
| -01 | DANPF1305-0204IN | 1/8"-27 | 7/16"-20 | 9.14 | 4.37 | 25.40 | 9/16" | Imperial |
| -01 | DANPF1305-0205IN | 1/8"-27 | 1/2"-20 | 9.14 | 5.94 | 25.15 | 5/8" | Imperial |
| -01 | DANPF1305-0206IN | 1/8"-27 | 9/16"-18 | 9.93 | 7.54 | 26.00 | 11/16" | Imperial |
| -01 | DANPF1305-0208IN | 1/8"-27 | 3/4"-16 | 11.13 | 9.93 | 27.90 | 7/8" | Imperial |
| -01 | DANPF1305-0210IN | 1/8"-27 | 7/8"-14 | 12.70 | 10.70 | 20.50 | 1" | Imperial |
| -01 | DANPF1305-0212IN | 1/8"-27 | 1-1/16"-12 | 15.09 | 15.47 | 27.70 | 1-1/4" | Imperial |
| -04 | DANPF1305-0402 | 1/4"-18 | 5/16"-24 | 7.54 | 1.57 | 31.24 | 19 mm | Metric |
| -04 | DANPF1305-0403 | 1/4"-18 | 3/8"-24 | 7.54 | 3.18 | 30.80 | 19 mm | Metric |
| -04 | DANPF1305-0404 | 1/4"-18 | 7/16"-20 | 9.14 | 4.37 | 29.46 | 19 mm | Metric |
| -04 | DANPF1305-0405 | 1/4"-18 | 1/2"-20 | 9.14 | 5.94 | 29.50 | 19 mm | Metric |
| -04 | DANPF1305-0406 | 1/4"-18 | 9/16"-18 | 9.93 | 7.54 | 27.69 | 19 mm | Metric |
| -04 | DANPF1305-0408 | 1/4"-18 | 3/4"-16 | 11.13 | 9.93 | 25.90 | 22 mm | Metric |
| -04 | DANPF1305-0410 | 1/4"-18 | 7/8"-14 | 12.70 | 12.29 | 20.57 | 27 mm | Metric |
| -04 | DANPF1305-0412 | 1/4"-18 | 1-1/16"-12 | 15.09 | 15.47 | 27.70 | 32 mm | Metric |
| -04 | DANPF1305-0416 | 1/4"-18 | 1-5/16"-12 | 15.09 | 10.94 | 28.85 | 41 mm | Metric |
| -04 | DANPF1305-0402IN | 1/4"-18 | 5/16"-24 | 7.54 | 1.57 | 31.24 | 3/4" | Imperial |
| -04 | DANPF1305-0403IN | 1/4"-18 | 3/8"-24 | 7.54 | 3.18 | 30.80 | 3/4" | Imperial |
| -04 | DANPF1305-0404IN | 1/4"-18 | 7/16"-20 | 9.14 | 4.37 | 29.46 | 3/4" | Imperial |
| -04 | DANPF1305-0405IN | 1/4"-18 | 1/2"-20 | 9.14 | 5.94 | 29.50 | 3/4" | Imperial |
| -04 | DANPF1305-0406IN | 1/4"-18 | 9/16"-18 | 9.93 | 7.54 | 27.69 | 3/4" | Imperial |
| -04 | DANPF1305-0408IN | 1/4"-18 | 3/4"-16 | 11.13 | 9.93 | 25.90 | 7/8" | Imperial |
| -04 | DANPF1305-0410IN | 1/4"-18 | 7/8"-14 | 12.70 | 12.29 | 20.57 | 1" | Imperial |
| -04 | DANPF1305-0412IN | 1/4"-18 | 1-1/16"-12 | 15.09 | 15.47 | 27.70 | 1-1/4" | Imperial |
| -04 | DANPF1305-0416IN | 1/4"-18 | 1-5/16"-12 | 15.09 | 10.94 | 28.85 | 1-1/2" | Imperial |
| -06 | DANPF1305-0604 | 3/8"-18 | 7/16"-20 | 9.14 | 4.37 | 34.30 | 22 mm | Metric |
| -06 | DANPF1305-0606 | 3/8"-18 | 9/16"-18 | 9.93 | 7.54 | 33.81 | 22 mm | Metric |
| -06 | DANPF1305-0608 | 3/8"-18 | 3/4"-16 | 11.13 | 9.93 | 32.50 | 22 mm | Metric |
| -06 | DANPF1305-0610 | 3/8"-18 | 7/8"-14 | 12.70 | 12.29 | 35.56 | 27 mm | Metric |
| -06 | DANPF1305-0612 | 3/8"-18 | 1-1/16"-12 | 15.09 | 15.47 | 38.10 | 32 mm | Metric |
| -06 | DANPF1305-0616 | 3/8"-18 | 1-5/16"-12 | 15.09 | 21.44 | 28.58 | 41 mm | Metric |
| -06 | DANPF1305-0604IN | 3/8"-18 | 7/16"-20 | 9.14 | 4.37 | 34.30 | 7/8" | Imperial |
| -06 | DANPF1305-0606IN | 3/8"-18 | 9/16"-18 | 9.93 | 7.54 | 33.81 | 7/8" | Imperial |
| -06 | DANPF1305-0608IN | 3/8"-18 | 3/4"-16 | 11.13 | 9.93 | 32.50 | 7/8" | Imperial |
| -06 | DANPF1305-0610IN | 3/8"-18 | 7/8"-14 | 12.70 | 12.29 | 35.56 | 1" | Imperial |
| -06 | DANPF1305-0612IN | 3/8"-18 | 1-1/16"-12 | 15.09 | 15.47 | 38.10 | 1-1/4" | Imperial |
| -06 | DANPF1305-0616IN | 3/8"-18 | 1-5/16"-12 | 15.09 | 21.44 | 28.58 | 1-1/2" | Imperial |
| -08 | DANPF1305-0806 | 1/2"-14 | 9/16"-18 | 9.93 | 7.54 | 38.10 | 27 mm | Metric |
| -08 | DANPF1305-0808 | 1/2"-14 | 3/4"-16 | 11.13 | 9.93 | 37.30 | 27 mm | Metric |
| -08 | DANPF1305-0810 | 1/2"-14 | 7/8"-14 | 12.70 | 12.29 | 39.30 | 27 mm | Metric |
| -08 | DANPF1305-0812 | 1/2"-14 | 1-1/16"-12 | 15.09 | 15.47 | 35.81 | 32 mm | Metric |
| -08 | DANPF1305-0814 | 1/2"-14 | 1-3/16"-12 | 15.09 | 18.26 | 26.92 | 36 mm | Metric |
| -08 | DANPF1305-0816 | 1/2"-14 | 1-5/16"-12 | 15.09 | 21.44 | 43.70 | 41 mm | Metric |
| -08 | DANPF1305-0820 | 1/2"-14 | 1-5/8"-12 | 15.09 | 16.48 | 30.40 | 50 mm | Metric |
| -08 | DANPF1305-0806IN | 1/2"-14 | 9/16"-18 | 9.93 | 7.54 | 38.10 | 1-1/8" | Imperial |
| -08 | DANPF1305-0808IN | 1/2"-14 | 3/4"-16 | 11.13 | 9.93 | 37.30 | 1-1/8" | Imperial |
| -08 | DANPF1305-0810IN | 1/2"-14 | 7/8"-14 | 12.70 | 12.29 | 39.30 | 1-1/8" | Imperial |
| -08 | DANPF1305-0812IN | 1/2"-14 | 1-1/16"-12 | 15.09 | 15.47 | 35.81 | 1-1/4" | Imperial |
| -08 | DANPF1305-0814IN | 1/2"-14 | 1-3/16"-12 | 15.09 | 18.26 | 26.92 | 1-3/8" | Imperial |
| -08 | DANPF1305-0816IN | 1/2"-14 | 1-5/16"-12 | 15.09 | 21.44 | 43.70 | 1-1/2" | Imperial |
| -08 | DANPF1305-0820IN | 1/2"-14 | 1-5/8"-12 | 15.09 | 16.48 | 30.40 | 1-7/8" | Imperial |
| -12 | DANPF1305-1206 | 3/4"-14 | 9/16"-18 | 9.93 | 7.54 | 43.00 | 36 mm | Metric |
| -12 | DANPF1305-1208 | 3/4"-14 | 3/4"-16 | 11.13 | 9.93 | 45.21 | 36 mm | Metric |
| -12 | DANPF1305-1210 | 3/4"-14 | 7/8"-14 | 12.70 | 12.29 | 42.20 | 36 mm | Metric |
| -12 | DANPF1305-1212 | 3/4"-14 | 1-1/16"-12 | 15.09 | 15.47 | 43.69 | 36 mm | Metric |
| -12 | DANPF1305-1214 | 3/4"-14 | 1-3/16"-12 | 15.09 | 18.26 | 45.20 | 36 mm | Metric |
| -12 | DANPF1305-1216 | 3/4"-14 | 1-5/16"-12 | 15.09 | 21.34 | 41.12 | 41 mm | Metric |
| -12 | DANPF1305-1220 | 3/4"-14 | 1-5/8"-12 | 15.09 | 27.38 | 45.20 | 50 mm | Metric |
| -12 | DANPF1305-1224 | 3/4"-14 | 1-7/8"-12 | 15.09 | 23.04 | 32.25 | 55 mm | Metric |
| -12 | DANPF1305-1206IN | 3/4"-14 | 9/16"-18 | 9.93 | 7.54 | 43.00 | 1-3/8" | Imperial |
| -12 | DANPF1305-1208IN | 3/4"-14 | 3/4"-16 | 11.13 | 9.93 | 45.21 | 1-3/8" | Imperial |
| -12 | DANPF1305-1210IN | 3/4"-14 | 7/8"-14 | 12.70 | 12.29 | 42.20 | 1-3/8" | Imperial |
| -12 | DANPF1305-1212IN | 3/4"-14 | 1-1/16"-12 | 15.09 | 15.47 | 43.69 | 1-3/8" | Imperial |
| -12 | DANPF1305-1214IN | 3/4"-14 | 1-3/16"-12 | 15.09 | 18.26 | 45.20 | 1-3/8" | Imperial |
| -12 | DANPF1305-1216IN | 3/4"-14 | 1-5/16"-12 | 15.09 | 21.34 | 41.12 | 1-1/2" | Imperial |
| -12 | DANPF1305-1220IN | 3/4"-14 | 1-5/8"-12 | 15.09 | 27.38 | 45.20 | 1-7/8" | Imperial |
| -12 | DANPF1305-1224IN | 3/4"-14 | 1-7/8"-12 | 15.09 | 23.04 | 32.25 | 2-1/8" | Imperial |
| -16 | DANPF1305-1612 | 1"-11-1/2 | 1-1/16"-12 | 15.09 | 15.47 | 51.60 | 41 mm | Metric |
| -16 | DANPF1305-1616 | 1"-11-1/2 | 1-5/16"-12 | 15.09 | 21.44 | 49.53 | 41 mm | Metric |
| -16 | DANPF1305-1620 | 1"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 25.40 | 50 mm | Metric |
| -16 | DANPF1305-1624 | 1"-11-1/2 | 1-7/8"-12 | 15.09 | 28.37 | 32.26 | 55 mm | Metric |
| -16 | DANPF1305-1632 | 1"-11-1/2 | 2-1/2"-12 | 15.09 | 29.36 | 36.40 | 70 mm | Metric |
| -16 | DANPF1305-1612IN | 1"-11-1/2 | 1-1/16"-12 | 15.09 | 15.47 | 51.60 | 1-5/8" | Imperial |
| -16 | DANPF1305-1616IN | 1"-11-1/2 | 1-5/16"-12 | 15.09 | 21.44 | 49.53 | 1-5/8" | Imperial |
| -16 | DANPF1305-1620IN | 1"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 25.40 | 1-7/8" | Imperial |
| -16 | DANPF1305-1624IN | 1"-11-1/2 | 1-7/8"-12 | 15.09 | 28.37 | 32.26 | 2-1/8" | Imperial |
| -16 | DANPF1305-1632IN | 1"-11-1/2 | 2-1/2"-12 | 15.09 | 29.36 | 36.40 | 2-3/4" | Imperial |
| -20 | DANPF1305-2012 | 1-1/4"-11-1/2 | 1-1/16"-12 | 15.09 | 15.47 | 54.61 | 50 mm | Metric |
| -20 | DANPF1305-2016 | 1-1/4"-11-1/2 | 1-5/16"-12 | 15.09 | 21.44 | 54.61 | 50 mm | Metric |
| -20 | DANPF1305-2020 | 1-1/4"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 50.00 | 50 mm | Metric |
| -20 | DANPF1305-2024 | 1-1/4"-11-1/2 | 1-7/8"-12 | 15.09 | 33.32 | 54.86 | 55 mm | Metric |
| -20 | DANPF1305-2032 | 1-1/4"-11-1/2 | 2-1/2"-12 | 15.09 | 45.00 | 50.80 | 70 mm | Metric |
| -20 | DANPF1305-2012IN | 1-1/4"-11-1/2 | 1-1/16"-12 | 15.09 | 15.47 | 54.61 | 2" | Imperial |
| -20 | DANPF1305-2016IN | 1-1/4"-11-1/2 | 1-5/16"-12 | 15.09 | 21.44 | 54.61 | 2" | Imperial |
| -20 | DANPF1305-2020IN | 1-1/4"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 50.00 | 2" | Imperial |
| -20 | DANPF1305-2024IN | 1-1/4"-11-1/2 | 1-7/8"-12 | 15.09 | 33.32 | 54.86 | 2-1/8" | Imperial |
| -20 | DANPF1305-2032IN | 1-1/4"-11-1/2 | 2-1/2"-12 | 15.09 | 45.00 | 50.80 | 2-3/4" | Imperial |
| -24 | DANPF1305-2416 | 1-1/2"-11-1/2 | 1-5/16"-12 | 15.09 | 21.44 | 58.42 | 60 mm | Metric |
| -24 | DANPF1305-2420 | 1-1/2"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 51.30 | 60 mm | Metric |
| -24 | DANPF1305-2424 | 1-1/2"-11-1/2 | 1-7/8"-12 | 15.09 | 33.32 | 54.86 | 60 mm | Metric |
| -24 | DANPF1305-2432 | 1-1/2"-11-1/2 | 2-1/2"-12 | 15.09 | 45.00 | 50.80 | 70 mm | Metric |
| -24 | DANPF1305-2416IN | 1-1/2"-11-1/2 | 1-5/16"-12 | 15.09 | 21.44 | 58.42 | 2-3/8" | Imperial |
| -24 | DANPF1305-2420IN | 1-1/2"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 51.30 | 2-3/8" | Imperial |
| -24 | DANPF1305-2424IN | 1-1/2"-11-1/2 | 1-7/8"-12 | 15.09 | 33.32 | 54.86 | 2-3/8" | Imperial |
| -24 | DANPF1305-2432IN | 1-1/2"-11-1/2 | 2-1/2"-12 | 15.09 | 45.00 | 50.80 | 2-3/4" | Imperial |
| -32 | DANPF1305-3220 | 2"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 60.96 | 70 mm | Metric |
| -32 | DANPF1305-3232 | 2"-11-1/2 | 2-1/2"-12 | 15.09 | 45.24 | 56.90 | 73 mm | Metric |
| -32 | DANPF1305-3220IN | 2"-11-1/2 | 1-5/8"-12 | 15.09 | 27.38 | 60.96 | 2-3/4" | Imperial |
| -32 | DANPF1305-3232IN | 2"-11-1/2 | 2-1/2"-12 | 15.09 | 45.24 | 56.90 | 2-7/8" | Imperial |
