DANPF4251 45° Elbow Connector NPTF Female - JIC Swivel Female 74°

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • FConnection TypeFemale
  • 4Adaptor Structure45° Elbow
  • 251Connection TypeJIC UNF Swivel Female
  • DME&JDE Code: DANPF4251
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: 45° Elbow
  • Connection Type: Female × Swivel Female
  • Thread Types: NPTF × JIC UNF 74°
Technical Data of DANPF4251
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

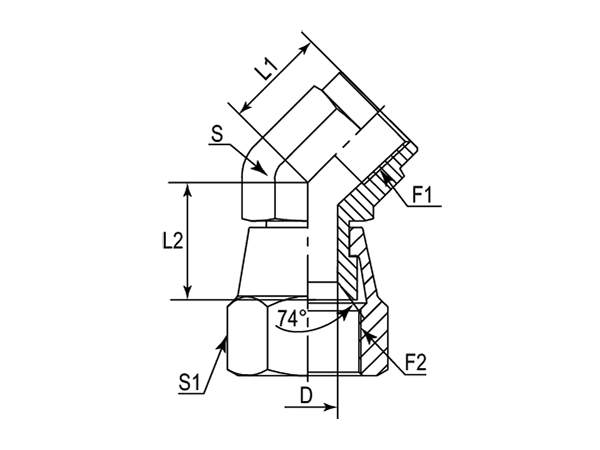

A drawing of DANPF4251 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) D L1 L2 S S1 Hex
- - NPTF UNF mm mm mm - - -
-01 DANPF4251-0404 1/4"-18 7/16"-20 7.54 21.08 15.75 19 mm 14 mm Metric
-01 DANPF4251-0406 1/4"-18 9/16"-18 7.54 19.05 15.75 19 mm 19 mm Metric
-01 DANPF4251-0404IN 1/4"-18 7/16"-20 7.54 21.08 15.75 3/4" 9/16" Imperial
-01 DANPF4251-0406IN 1/4"-18 9/16"-18 7.54 19.05 15.75 3/4" 11/16” Imperial
-06 DANPF4251-0606 3/8"-18 9/16"-18 7.54 19.05 18.92 22 mm 19 mm Metric
-06 DANPF4251-0608 3/8"-18 3/4"-16 9.93 19.05 21.79 22 mm 22 mm Metric
-06 DANPF4251-0606IN 3/8"-18 9/16"-18 7.54 19.05 18.92 7/8" 11/16" Imperial
-06 DANPF4251-0608IN 3/8"-18 3/4"-16 9.93 19.05 21.79 7/8" 7/8" Imperial
-08 DANPF4251-0808 1/2"-14 3/4"-16 9.93 21.77 21.79 27 mm 22 mm Metric
-08 DANPF4251-0808IN 1/2"-14 3/4"-16 9.93 21.77 21.79 1-1/8" 7/8" Imperial
-12 DANPF4251-1212 3/4"-14 1-1/16"-12 15.47 25.40 23.88 33 mm 32 mm Metric
-12 DANPF4251-1212IN 3/4"-14 1-1/16"-12 15.47 25.40 23.88 1-5/16" 1-1/4" Imperial
-16 DANPF4251-1616 1"-11-1/2 1-5/16"-12 21.44 30.22 29.36 41 mm 41 mm Metric
-16 DANPF4251-1616IN 1"-11-1/2 1-5/16"-12 21.44 30.22 29.36 1-5/8" 1-1/2" Imperial
-20 DANPF4251-2020 1-1/4"-11-1/2 1-5/8"-12 27.42 36.58 35.66 48 mm 50 mm Metric
-20 DANPF4251-2020IN 1-1/4"-11-1/2 1-5/8"-12 27.42 36.58 35.66 1-7/8" 2" Imperial
