DANP21000-HHP Hexagon Socket Plug NPTF Male

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • 2Connection TypeMale
  • 1Adaptor StructureStraight
  • 000Other FeaturesNut/Plug
  • HHPPlug Head TypeHexagon Head
  • DME&JDE Code: DANP21000-HHP
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Connection Type: Male
  • Thread Types: NPTF
  • Other Features: Nut/Plug
Technical Data of DANP21000-HHP
  • -01
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

* Filter the F1 Thread through selecting the -XX options

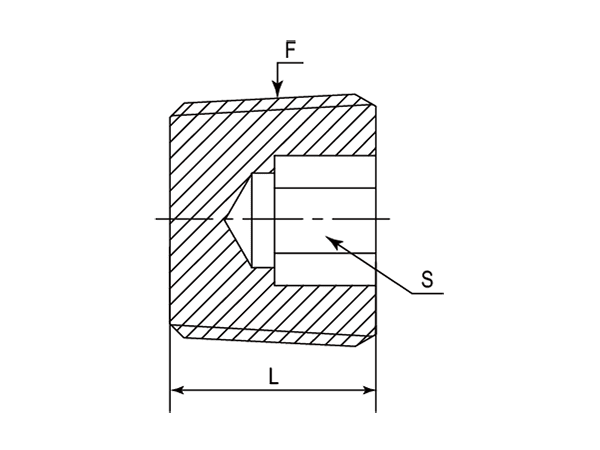

A drawing of DANP21000-HHP hydraulic adaptor.
- Part Number F (Thread) L S Cross Number
- - NPTF mm mm -
-01 DANP21000-HHP-0100 1/16"-27 7.90 1/6" 5406-HHP-01
-02 DANP21000-HHP-0200 1/8"-27 7.90 3/16" 5406-HHP-02
-04 DANP21000-HHP-0400 1/4"-18 12.10 1/4" 5406-HHP-04
-06 DANP21000-HHP-0600 3/8"-18 12.10 5/16" 5406-HHP-06
-08 DANP21000-HHP-0800 1/2"-14 16.00 3/8" 5406-HHP-08
-12 DANP21000-HHP-1200 3/4"-14 16.26 9/16" 5406-HHP-12
-16 DANP21000-HHP-1600 1"-11-1/2 20.07 5/8" 5406-HHP-16
-20 DANP21000-HHP-2000 1-1/4"-11-1/2 21.10 3/4" 5406-HHP-20
-24 DANP21000-HHP-2400 1-1/2"-11-1/2 21.10 1" 5406-HHP-24
-32 DANP21000-HHP-3200 2"-11-1/2 22.10 3/4" 5406-HHP-32
