* Filter the F1 Thread through selecting the -XX options

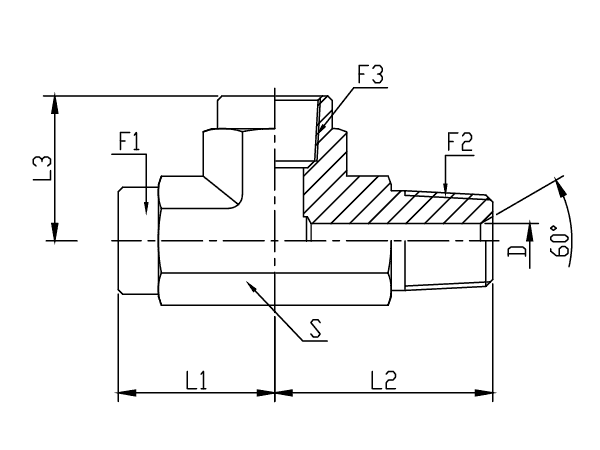

| - | Part Number | F1 (Thread) | F2 (Thread) | F3 (Thread) | L2 | L1 | L3 | D | S | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | NPTF | NPTF | mm | mm | mm | mm | - | - |
| -01 | DANPFL28M-0202 | 1/8"-27 | 1/8"-27 | 1/8"-27 | 19.80 | 16.80 | 16.80 | 4.78 | 14 mm | Metric |
| -01 | DANPFL28M-0204 | 1/4"-18 | 1/8"-27 | 1/4"-18 | 22.86 | 22.35 | 22.35 | 4.78 | 19 mm | Metric |
| -01 | DANPFL28M-0202IN | 1/8"-27 | 1/8"-27 | 1/8"-27 | 19.80 | 16.80 | 16.80 | 4.78 | 9/16" | Imperial |
| -01 | DANPFL28M-0204IN | 1/4"-18 | 1/8"-27 | 1/4"-18 | 22.86 | 22.35 | 22.35 | 4.78 | 3/4" | Imperial |
| -04 | DANPFL28M-0404 | 1/4"-18 | 1/4"-18 | 1/4"-18 | 27.69 | 22.35 | 22.35 | 7.14 | 19 mm | Metric |
| -04 | DANPFL28M-0404IN | 1/4"-18 | 1/4"-18 | 1/4"-18 | 27.69 | 22.35 | 22.35 | 7.14 | 3/4" | Imperial |
| -06 | DANPFL28M-0606 | 3/8"-18 | 3/8"-18 | 3/8"-18 | 30.99 | 25.91 | 25.91 | 10.31 | 22 mm | Metric |
| -06 | DANPFL28M-0606IN | 3/8"-18 | 3/8"-18 | 3/8"-18 | 30.99 | 25.91 | 25.91 | 10.31 | 7/8" | Imperial |
| -08 | DANPFL28M-0808 | 1/2"-14 | 1/2"-14 | 1/2"-14 | 37.34 | 31.24 | 31.24 | 13.49 | 27 mm | Metric |
| -08 | DANPFL28M-0808IN | 1/2"-14 | 1/2"-14 | 1/2"-14 | 37.34 | 31.24 | 31.24 | 13.49 | 1-1/16" | Imperial |
| -12 | DANPFL28M-1212 | 3/4"-14 | 3/4"-14 | 3/4"-14 | 40.39 | 34.54 | 34.54 | 18.26 | 33 mm | Metric |
| -12 | DANPFL28M-1212IN | 3/4"-14 | 3/4"-14 | 3/4"-14 | 40.39 | 34.54 | 34.54 | 18.26 | 1-5/16" | Imperial |
| -16 | DANPFL28M-1616 | 1"-11-1/2 | 1"-11-1/2 | 1"-11-1/2 | 50.00 | 41.20 | 41.20 | 23.83 | 41 mm | Metric |
| -16 | DANPFL28M-1616IN | 1"-11-1/2 | 1"-11-1/2 | 1"-11-1/2 | 50.00 | 41.20 | 41.20 | 23.83 | 1-5/8" | Imperial |
| -20 | DANPFL28M-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 60.50 | 43.20 | 43.20 | 31.75 | 50 mm | Metric |
| -20 | DANPFL28M-2020IN | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 60.50 | 43.20 | 43.20 | 31.75 | 1-7/8" | Imperial |
| -24 | DANPFL28M-2424 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 67.10 | 52.80 | 52.80 | 38.10 | 65 mm | Metric |
| -24 | DANPFL28M-2424IN | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 67.10 | 52.80 | 52.80 | 38.10 | 2-9/16" | Imperial |
| -32 | DANPFL28M-3232 | 2"-11-1/2 | 2"-11-1/2 | 2"-11-1/2 | 76.20 | 60.70 | 60.70 | 49.23 | 70 mm | Metric |
| -32 | DANPFL28M-3232IN | 2"-11-1/2 | 2"-11-1/2 | 2"-11-1/2 | 76.20 | 60.70 | 60.70 | 49.23 | 2-13/16" | Imperial |
