DANPFT28M Branch Tee Connector NPTF Female - NPTF Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • FConnection TypeFemale
  • TAdaptor StructureBranch Tee
  • 28Thread TypesNPTF
  • MConnection TypeMale
  • DME&JDE Code: DANPFT28M
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: Branch Tee
  • Connection Type: Female × Female × Male
  • Thread Types: NPTF × NPTF × NPTF
Technical Data of DANPFT28M
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

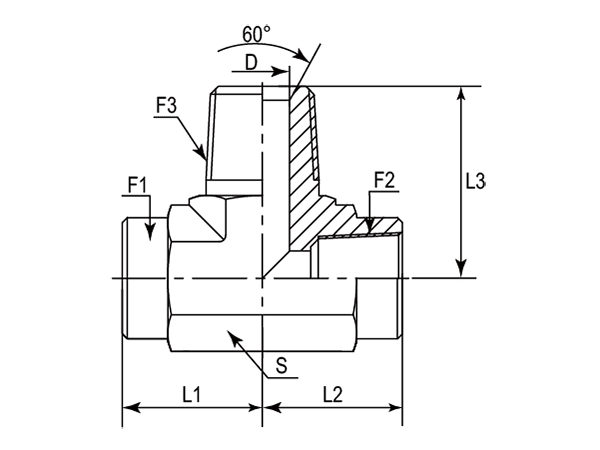

A drawing of DANPFT28M hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 D S Hex
- - NPTF NPTF NPTF mm mm mm mm - -
-01 DANPFT28M-0202 1/8"-27 1/8"-27 1/8"-27 16.80 16.80 19.80 4.78 14 mm Metric
-01 DANPFT28M-0202IN 1/8"-27 1/8"-27 1/8"-27 16.80 16.80 19.80 4.78 9/16" Imperial
-04 DANPFT28M-0402 1/4"-18 1/4"-18 1/8"-27 27.70 27.70 17.00 7.14 19 mm Metric
-04 DANPFT28M-0404 1/4"-18 1/4"-18 1/4"-18 22.40 22.40 27.70 7.14 19 mm Metric
-04 DANPFT28M-0402IN 1/4"-18 1/4"-18 1/8"-27 27.70 27.70 17.00 7.14 3/4" Imperial
-04 DANPFT28M-0404IN 1/4"-18 1/4"-18 1/4"-18 22.40 22.40 27.70 7.14 3/4" Imperial
-06 DANPFT28M-0606 3/8"-18 3/8"-18 3/8"-18 25.90 25.90 31.00 10.31 22 mm Metric
-06 DANPFT28M-0606IN 3/8"-18 3/8"-18 3/8"-18 25.90 25.90 31.00 10.31 7/8" Imperial
-08 DANPFT28M-0808 1/2"-14 1/2"-14 1/2"-14 31.20 31.20 37.30 13.49 27 mm Metric
-08 DANPFT28M-0808IN 1/2"-14 1/2"-14 1/2"-14 31.20 31.20 37.30 13.49 1-1/16" Imperial
-12 DANPFT28M-1208 3/4"-14 3/4"-14 1/2"-14 40.40 40.40 31.20 18.26 27 mm Metric
-12 DANPFT28M-1212 3/4"-14 3/4"-14 3/4"-14 34.50 34.50 40.30 18.26 33 mm Metric
-12 DANPFT28M-1208IN 3/4"-14 3/4"-14 1/2"-14 40.40 40.40 31.20 18.26 1-1/16" Imperial
-12 DANPFT28M-1212IN 3/4"-14 3/4"-14 3/4"-14 34.50 34.50 40.30 18.26 1-5/16" Imperial
-16 DANPFT28M-1616 1"-11-1/2 1"-11-1/2 1"-11-1/2 41.20 41.20 50.00 23.83 41 mm Metric
-16 DANPFT28M-1616IN 1"-11-1/2 1"-11-1/2 1"-11-1/2 41.20 41.20 50.00 23.83 1-5/8" Imperial
-20 DANPFT28M-2020 1-1/4"-11-1/2 1-1/4"-11-1/2 1-1/4"-11-1/2 43.20 43.20 60.50 31.75 50 mm Metric
-20 DANPFT28M-2020IN 1-1/4"-11-1/2 1-1/4"-11-1/2 1-1/4"-11-1/2 43.20 43.20 60.50 31.75 1-7/8" Imperial
-24 DANPFT28M-2424 1-1/2"-11-1/2 1-1/2"-11-1/2 1-1/2"-11-1/2 52.80 52.80 67.10 38.10 65 mm Metric
-24 DANPFT28M-2424IN 1-1/2"-11-1/2 1-1/2"-11-1/2 1-1/2"-11-1/2 52.80 52.80 67.10 38.10 2-9/16" Imperial
-32 DANPFT28M-3232 2"-11-1/2 2"-11-1/2 2"-11-1/2 60.70 60.70 76.20 49.23 70 mm Metric
-32 DANPFT28M-3232IN 2"-11-1/2 2"-11-1/2 2"-11-1/2 60.70 60.70 76.20 49.23 2-13/16" Imperial
