Location: Home Fluid Connector Hydraulic Adaptors NPTFDANPM128F

DANPM128F Straight Connector NPTF Male 60° - NPTF Female

DCompanyDME
AProduct RangeAdaptor
NPThread TypesNPTF
MConnection TypeMale
1Adaptor StructureStraight
28Thread TypesNPTF
FConnection TypeFemale

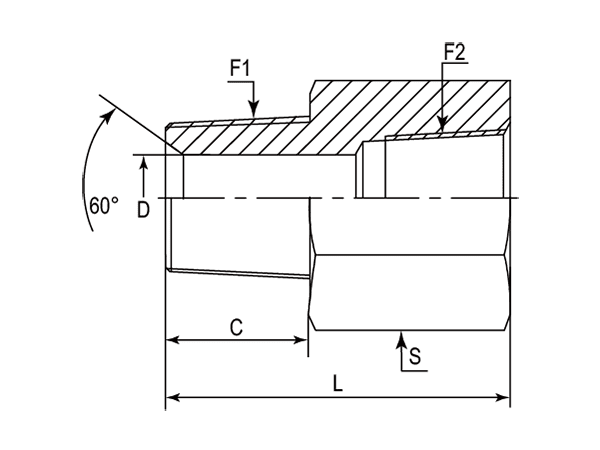

A drawing of DANPM128F hydraulic adaptor.

A 3D drawing of DANPM128F hydraulic adaptor.

A model drawing of DANPM128F hydraulic adaptor.

DME&JDE Code: DANPM128F
Product Type: hydraulic adaptor
Standard: NPTF
Structure: Straight
Connection Type: Male × Female
Thread Types: NPTF 60° × NPTF

Technical Data of DANPM128F

-02
-04
-06
-08
-12
-16
-20
-24
-32
-40

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S	Hex
-	-	NPTF	NPTF	mm	mm	mm	-	-
-01	DANPM128F-0202	1/8"-27	1/8"-27	9.65	4.78	26.40	17 mm	Metric
-01	DANPM128F-0204	1/8"-27	1/4"-18	9.65	4.78	30.70	19 mm	Metric
-01	DANPM128F-0206	1/8"-27	3/8"-18	9.65	4.78	32.00	22 mm	Metric
-01	DANPM128F-0208	1/8"-27	1/2"-14	9.65	4.78	38.00	27 mm	Metric
-01	DANPM128F-0202IN	1/8"-27	1/8"-27	9.65	4.78	26.40	5/8"	Imperial
-01	DANPM128F-0204IN	1/8"-27	1/4"-18	9.65	4.78	30.70	3/4"	Imperial
-01	DANPM128F-0206IN	1/8"-27	3/8"-18	9.65	4.78	32.00	7/8"	Imperial
-01	DANPM128F-0208IN	1/8"-27	1/2"-14	9.65	4.78	38.00	1-1/8"	Imperial
-04	DANPM128F-0402	1/4"-18	1/8"-27	14.22	7.14	30.90	17 mm	Metric
-04	DANPM128F-0404	1/4"-18	1/4"-18	14.22	7.14	35.30	19 mm	Metric
-04	DANPM128F-0406	1/4"-18	3/8"-18	14.22	7.14	36.60	22 mm	Metric
-04	DANPM128F-0408	1/4"-18	1/2"-14	14.22	7.14	42.70	27 mm	Metric
-04	DANPM128F-0412	1/4"-18	3/4"-14	14.22	7.14	44.20	36 mm	Metric
-04	DANPM128F-0416	1/4"-18	1"-11-1/2	14.22	7.14	50.50	41 mm	Metric
-04	DANPM128F-0402IN	1/4"-18	1/8"-27	14.22	7.14	30.90	5/8"	Imperial
-04	DANPM128F-0404IN	1/4"-18	1/4"-18	14.22	7.14	35.30	3/4"	Imperial
-04	DANPM128F-0406IN	1/4"-18	3/8"-18	14.22	7.14	36.60	7/8"	Imperial
-04	DANPM128F-0408IN	1/4"-18	1/2"-14	14.22	7.14	42.70	1-1/8"	Imperial
-04	DANPM128F-0412IN	1/4"-18	3/4"-14	14.22	7.14	44.20	1-3/8"	Imperial
-04	DANPM128F-0416IN	1/4"-18	1"-11-1/2	14.22	7.14	50.50	1-5/8"	Imperial
-06	DANPM128F-0602	3/8"-18	1/8"-27	14.22	10.31	36.32	19 mm	Metric
-06	DANPM128F-0604	3/8"-18	1/4"-18	14.22	10.31	36.30	19 mm	Metric
-06	DANPM128F-0606	3/8"-18	3/8"-18	14.22	10.31	36.60	22 mm	Metric
-06	DANPM128F-0608	3/8"-18	1/2"-14	14.22	10.31	42.70	27 mm	Metric
-06	DANPM128F-0612	3/8"-18	3/4"-14	14.22	10.31	44.20	36 mm	Metric
-06	DANPM128F-0602IN	3/8"-18	1/8"-27	14.22	10.31	36.32	3/4"	Imperial
-06	DANPM128F-0604IN	3/8"-18	1/4"-18	14.22	10.31	36.30	3/4"	Imperial
-06	DANPM128F-0606IN	3/8"-18	3/8"-18	14.22	10.31	36.60	7/8"	Imperial
-06	DANPM128F-0608IN	3/8"-18	1/2"-14	14.22	10.31	42.70	1-1/8"	Imperial
-06	DANPM128F-0612IN	3/8"-18	3/4"-14	14.22	10.31	44.20	1-3/8"	Imperial
-08	DANPM128F-0804	1/2"-14	1/4"-18	19.05	13.49	41.66	22 mm	Metric
-08	DANPM128F-0806	1/2"-14	3/8"-18	19.05	13.49	42.20	22 mm	Metric
-08	DANPM128F-0808	1/2"-14	1/2"-14	19.05	13.49	47.50	27 mm	Metric
-08	DANPM128F-0812	1/2"-14	3/4"-14	19.05	13.49	49.00	32 mm	Metric
-08	DANPM128F-0816	1/2"-14	1-11-1/2	19.05	13.49	55.40	36 mm	Metric
-08	DANPM128F-0804IN	1/2"-14	1/4"-18	19.05	13.49	41.66	41 mm	Metric
-08	DANPM128F-0806IN	1/2"-14	3/8"-18	19.05	13.49	42.20	7/8"	Imperial
-08	DANPM128F-0808IN	1/2"-14	1/2"-14	19.05	13.49	47.50	1-1/8"	Imperial
-08	DANPM128F-0812IN	1/2"-14	3/4"-14	19.05	13.49	49.00	1-3/8"	Imperial
-08	DANPM128F-0816IN	1/2"-14	1-11-1/2	19.05	13.49	55.40	1-5/8"	Imperial
-12	DANPM128F-1204	3/4"-14	1/4"-18	19.05	18.26	40.60	27 mm	Metric
-12	DANPM128F-1206	3/4"-14	3/8"-18	19.05	18.26	41.40	27 mm	Metric
-12	DANPM128F-1208	3/4"-14	1/2"-14	19.05	18.26	49.30	27 mm	Metric
-12	DANPM128F-1212	3/4"-14	3/4"-14	19.05	18.26	49.00	36 mm	Metric
-12	DANPM128F-1216	3/4"-14	1"-11-1/2	19.05	18.26	55.40	41 mm	Metric
-12	DANPM128F-1220	3/4"-14	1-1/4"-11-1/2	19.05	18.26	57.66	50 mm	Metric
-12	DANPM128F-1204IN	3/4"-14	1/4"-18	19.05	18.26	40.60	1-1/8"	Imperial
-12	DANPM128F-1206IN	3/4"-14	3/8"-18	19.05	18.26	41.40	1-1/8"	Imperial
-12	DANPM128F-1208IN	3/4"-14	1/2"-14	19.05	18.26	49.30	1-1/8"	Imperial
-12	DANPM128F-1212IN	3/4"-14	3/4"-14	19.05	18.26	49.00	1-3/8"	Imperial
-12	DANPM128F-1216IN	3/4"-14	1"-11-1/2	19.05	18.26	55.40	1-5/8"	Imperial
-12	DANPM128F-1220IN	3/4"-14	1-1/4"-11-1/2	19.05	18.26	57.66	2"	Imperial
-16	DANPM128F-1612	1"-11-1/2	3/4"-14	23.88	23.83	53.80	36 mm	Metric
-16	DANPM128F-1616	1"-11-1/2	1"-11-1/2	23.88	23.83	60.20	41 mm	Metric
-16	DANPM128F-1620	1"-11-1/2	1-1/4"-11-1/2	23.88	23.83	62.50	50 mm	Metric
-16	DANPM128F-1624	1"-11-1/2	1-1/2"-11-1/2	23.88	23.83	62.70	60 mm	Metric
-16	DANPM128F-1632	1"-11-1/2	2"-11-1/2	23.88	23.83	65.00	73 mm	Metric
-16	DANPM128F-1612IN	1"-11-1/2	3/4"-14	23.88	23.83	53.80	1-3/8"	Imperial
-16	DANPM128F-1616IN	1"-11-1/2	1"-11-1/2	23.88	23.83	60.20	1-5/8"	Imperial
-16	DANPM128F-1620IN	1"-11-1/2	1-1/4"-11-1/2	23.88	23.83	62.50	2"	Imperial
-16	DANPM128F-1624IN	1"-11-1/2	1-1/2"-11-1/2	23.88	23.83	62.70	2-3/8"	Imperial
-16	DANPM128F-1632IN	1"-11-1/2	2"-11-1/2	23.88	23.83	65.00	2-7/8"	Imperial
-20	DANPM128F-2012	1-1/4"-11-1/2	3/4"-14	24.64	31.75	54.60	46 mm	Metric
-20	DANPM128F-2016	1-1/4"-11-1/2	1"-11-1/2	24.64	31.75	63.30	46 mm	Metric
-20	DANPM128F-2020	1-1/4"-11-1/2	1-1/4"-11-1/2	24.64	31.75	63.30	50 mm	Metric
-20	DANPM128F-2024	1-1/4"-11-1/2	1-1/2"-11-1/2	24.64	31.75	63.50	60 mm	Metric
-20	DANPM128F-2032	1-1/4"-11-1/2	2"-11-1/2	24.64	31.75	66.80	73 mm	Metric
-20	DANPM128F-2012IN	1-1/4"-11-1/2	3/4"-14	24.64	31.75	54.60	1-3/4"	Imperial
-20	DANPM128F-2016IN	1-1/4"-11-1/2	1"-11-1/2	24.64	31.75	63.30	1-3/4"	Imperial
-20	DANPM128F-2020IN	1-1/4"-11-1/2	1-1/4"-11-1/2	24.64	31.75	63.30	2"	Imperial
-20	DANPM128F-2024IN	1-1/4"-11-1/2	1-1/2"-11-1/2	24.64	31.75	63.50	2-3/8"	Imperial
-20	DANPM128F-2032IN	1-1/4"-11-1/2	2"-11-1/2	24.64	31.75	66.80	2-7/8"	Imperial
-24	DANPM128F-2420	1-1/2"-11-1/2	1-1/4"-11-1/2	25.40	38.10	64.00	50 mm	Metric
-24	DANPM128F-2424	1-1/2"-11-1/2	1-1/2"-11-1/2	25.40	38.10	64.30	60 mm	Metric
-24	DANPM128F-2432	1-1/2"-11-1/2	2"-11-1/2	25.40	38.10	66.80	73 mm	Metric
-24	DANPM128F-2420IN	1-1/2"-11-1/2	1-1/4"-11-1/2	25.40	38.10	64.00	2"	Imperial
-24	DANPM128F-2424IN	1-1/2"-11-1/2	1-1/2"-11-1/2	25.40	38.10	64.30	2-3/8"	Imperial
-24	DANPM128F-2432IN	1-1/2"-11-1/2	2"-11-1/2	25.40	38.10	66.80	2-7/8"	Imperial
-32	DANPM128F-3232	2"-11-1/2	2"-11-1/2	26.16	49.23	67.56	73 mm	Metric
-32	DANPM128F-3232IN	2"-11-1/2	2"-11-1/2	26.16	49.23	67.56	2-7/8"	Imperial
-40	DANPM128F-4032	2-1/2"-8	2"-11-1/2	38.86	59.00	80.00	85 mm	Metric
-40	DANPM128F-4032IN	2-1/2"-8	2"-11-1/2	38.86	59.00	80.00	3-1/4"	Imperial
