DANPM1061 Straight Connector NPTF Male 60° - BSPP 60° Male with ED Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 061Connection TypeBSPP Male with ED Ring
  • DME&JDE Code: DANPM1061
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: NPTF 60° × BSPP 60° + ED Ring
  • Sealing Method: ED Rings
Technical Data of DANPM1061
  • -04
  • -06
  • -08
  • -12

* Filter the F1 Thread through selecting the -XX options

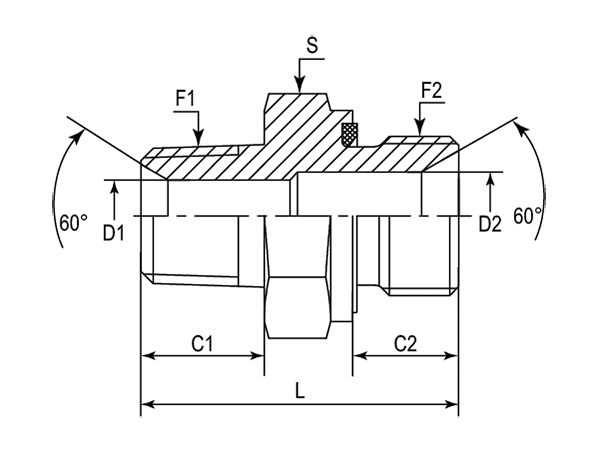

A drawing of DANPM1061 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - NPTF BSPP mm mm mm mm mm mm
-01 DANPM1061-0404 1/4"-18 1/4"-19 14.22 12.00 6.00 6.00 35.50 19.00
-06 DANPM1061-0606 3/8"-18 3/8"-19 14.22 12.00 10.31 7.90 36.00 22.00
-08 DANPM1061-0808 1/2"-14 1/2"-14 19.05 14.00 13.49 11.10 43.00 27.00
-12 DANPM1061-1212 3/4"-14 3/4"-14 19.05 16.00 20.65 17.50 50.00 32.00
