* Filter the F1 Thread through selecting the -XX options

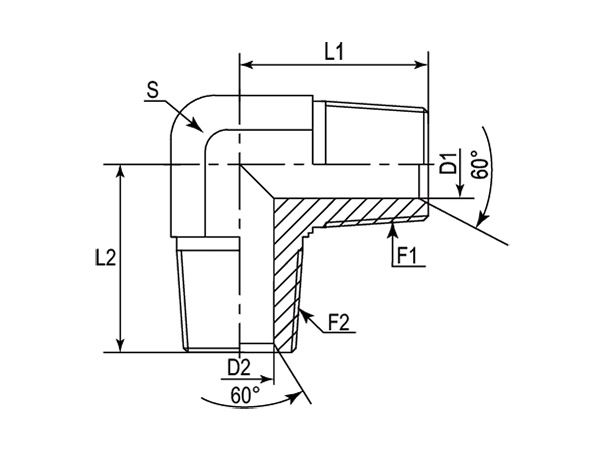

| - | Part Number | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S | Hex |
|---|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | NPTF | mm | mm | mm | mm | - | - |
| -01 | DANPM928M-0202 | 1/8"-27 | 1/8"-27 | 4.78 | 4.78 | 19.81 | 19.81 | 11 mm | Metric |
| -01 | DANPM928M-0202IN | 1/8"-27 | 1/8"-27 | 4.78 | 4.78 | 19.81 | 19.81 | 7/16" | Imperial |
| -04 | DANPM928M-0402 | 1/4"-18 | 1/8"-27 | 7.14 | 4.78 | 27.70 | 22.40 | 14 mm | Metric |
| -04 | DANPM928M-0404 | 1/4"-18 | 1/4"-18 | 7.14 | 7.14 | 27.70 | 27.70 | 14 mm | Metric |
| -04 | DANPM928M-0402IN | 1/4"-18 | 1/8"-27 | 7.14 | 4.78 | 27.70 | 22.40 | 9/16" | Imperial |
| -04 | DANPM928M-0404IN | 1/4"-18 | 1/4"-18 | 7.14 | 7.14 | 27.70 | 27.70 | 9/16" | Imperial |
| -06 | DANPM928M-0604 | 3/8"-18 | 1/4"-18 | 10.31 | 7.14 | 30.99 | 30.99 | 19 mm | Metric |
| -06 | DANPM928M-0606 | 3/8"-18 | 3/8"-18 | 10.31 | 10.31 | 30.99 | 30.99 | 19 mm | Metric |
| -06 | DANPM928M-0604IN | 3/8"-18 | 1/4"-18 | 10.31 | 7.14 | 30.99 | 30.99 | 3/4" | Imperial |
| -06 | DANPM928M-0606IN | 3/8"-18 | 3/8"-18 | 10.31 | 10.31 | 30.99 | 30.99 | 3/4" | Imperial |
| -08 | DANPM928M-0804 | 1/2"-14 | 1/4"-18 | 13.49 | 7.14 | 37.30 | 32.50 | 22 mm | Metric |
| -08 | DANPM928M-0806 | 1/2"-14 | 3/8"-18 | 13.49 | 10.31 | 37.30 | 32.50 | 22 mm | Metric |
| -08 | DANPM928M-0808 | 1/2"-14 | 1/2"-14 | 13.49 | 13.49 | 37.30 | 37.30 | 22 mm | Metric |
| -08 | DANPM928M-0804IN | 1/2"-14 | 1/4"-18 | 13.49 | 7.14 | 37.30 | 32.50 | 7/8" | Imperial |
| -08 | DANPM928M-0806IN | 1/2"-14 | 3/8"-18 | 13.49 | 10.31 | 37.30 | 32.50 | 7/8" | Imperial |
| -08 | DANPM928M-0808IN | 1/2"-14 | 1/2"-14 | 13.49 | 13.49 | 37.30 | 37.30 | 7/8" | Imperial |
| -12 | DANPM928M-1208 | 3/4"-14 | 1/2"-14 | 18.26 | 13.49 | 40.40 | 40.40 | 27 mm | Metric |
| -12 | DANPM928M-1212 | 3/4"-14 | 3/4"-14 | 18.26 | 18.26 | 40.40 | 40.40 | 27 mm | Metric |
| -12 | DANPM928M-1208IN | 3/4"-14 | 1/2"-14 | 18.26 | 13.49 | 40.40 | 40.40 | 1-1/16" | Imperial |
| -12 | DANPM928M-1212IN | 3/4"-14 | 3/4"-14 | 18.26 | 18.26 | 40.40 | 40.40 | 1-1/16" | Imperial |
| -16 | DANPM928M-1608 | 1"-11-1/2 | 1/2"-14 | 23.83 | 13.49 | 50.00 | 45.20 | 33 mm | Metric |
| -16 | DANPM928M-1612 | 1"-11-1/2 | 3/4"-14 | 23.83 | 18.26 | 50.00 | 45.20 | 33 mm | Metric |
| -16 | DANPM928M-1616 | 1"-11-1/2 | 1"-11-1/2 | 23.83 | 23.83 | 50.00 | 50.00 | 33 mm | Metric |
| -16 | DANPM928M-1608IN | 1"-11-1/2 | 1/2"-14 | 23.83 | 13.49 | 50.00 | 45.20 | 1-5/16" | Imperial |
| -16 | DANPM928M-1612IN | 1"-11-1/2 | 3/4"-14 | 23.83 | 18.26 | 50.00 | 45.20 | 1-5/16" | Imperial |
| -16 | DANPM928M-1616IN | 1"-11-1/2 | 1"-11-1/2 | 23.83 | 23.83 | 50.00 | 50.00 | 1-5/16" | Imperial |
| -20 | DANPM928M-2016 | 1-1/4"-11-1/2 | 1"-11-1/2 | 31.75 | 23.83 | 60.50 | 59.70 | 41 mm | Metric |
| -20 | DANPM928M-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 31.75 | 31.75 | 60.50 | 60.50 | 41 mm | Metric |
| -20 | DANPM928M-2016IN | 1-1/4"-11-1/2 | 1"-11-1/2 | 31.75 | 23.83 | 60.50 | 59.70 | 1-5/8" | Imperial |
| -20 | DANPM928M-2020IN | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 31.75 | 31.75 | 60.50 | 60.50 | 1-5/8" | Imperial |
| -24 | DANPM928M-2424 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 38.10 | 38.10 | 67.10 | 67.10 | 50 mm | Metric |
| -24 | DANPM928M-2424IN | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 38.10 | 38.10 | 67.10 | 67.10 | 1-7/8" | Imperial |
| -32 | DANPM928M-3232 | 2"-11-1/2 | 2"-11-1/2 | 49.23 | 49.23 | 76.20 | 76.20 | 60 mm | Metric |
| -32 | DANPM928M-3232IN | 2"-11-1/2 | 2"-11-1/2 | 49.23 | 49.23 | 76.20 | 76.20 | 2-1/2" | Imperial |
