DP9TYF 90° Elbow JIS BSPP Swivel Female 60° Cone – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • TYThread TypesJIS BSPP
  • FConnection TypeSwivel Female
  • DME&JDE Code: DP9TYF
  • Product Type: hose fitting
  • Hose Fitting Type: Insert
  • Thread Type: JIS BSPP 60° Cone
  • Structure: 90° Elbow
  • Connection Type: Swivel Female
Technical Data of DP9TYF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

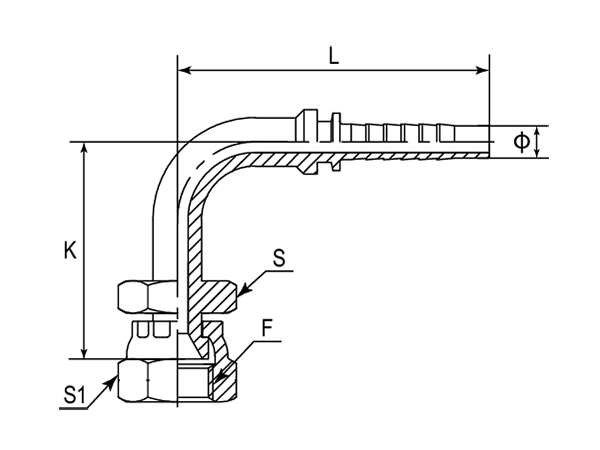

A drawing of DP9TYF 90° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP9TYF-XXXXR
- Part Number F (Thread) Ø L K S S1
- - BSPP Inch mm mm mm mm
-01 DP9TYF-0404 1/4"-19 1/4" 58.50 38.00 19.00 19
-06 DP9TYF-0606 3/8"-19 3/8" 65.60 38.00 22.00 22
-08 DP9TYF-0808 1/2"-14 1/2" 74.00 45.00 27.00 27
-10 DP9TYF-1010 5/8"-14 1/2" 92.50 61.00 30.00 30
-12 DP9TYF-1212 3/4"-14 3/4" 106.50 69.00 32.00 32
-16 DP9TYF-1616 1"-11 1" 131.70 76.50 41.00 41
-20 DP9TYF-2020 1-1/4"-11 1-1/4" 152.50 92.50 50.00 50
-24 DP9TYF-2424 1-1/2"-11 1-1/2" 180.40 110.50 55.00 55
-32 DP9TYF-3232 2"-11 2" 207.80 133.80 70.00 70
