DP4ORF 45° Elbow ORFS Female – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • ORThread TypesORFS
  • FConnection TypeFemale
  • DME&JDE Code: DP4ORF
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: UNF
  • Structure: 45° Elbow
  • Connection Type: Female
Technical Data of DP4ORF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

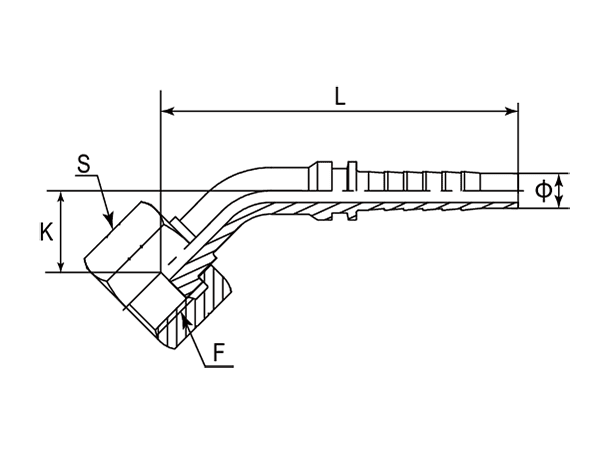

A drawing of DP4ORF 45° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP4ORF-XXXXR
- Part Number F (Thread) Ø L K S
- - UNF Inch mm mm mm
-01 DP4ORF-0404 9/16"-18 1/4" 64.00 14.00 19
-06 DP4ORF-0604 11/16"-16 1/4" 65.50 15.00 22
-06 DP4ORF-0606 11/16"-16 3/8" 79.00 17.00 22
-08 DP4ORF-0806 13/16"-16 3/8" 81.50 18.00 27
-08 DP4ORF-0808 13/16"-16 1/2" 91.00 23.00 27
-10 DP4ORF-1008 1"-14 1/2" 93.00 23.00 30
-10 DP4ORF-1010 1"-14 5/8" 109.50 26.00 30
-12 DP4ORF-1210 1-3/16"-12 5/8" 11.50 27.00 36
-12 DP4ORF-1212 1-3/16"-12 3/4" 123.50 27.00 36
-16 DP4ORF-1616 1-7/16"-12 1" 157.50 30.00 41
-20 DP4ORF-2020 1-11/16"-12 1-1/4" 187.50 44.00 50
-24 DP4ORF-2424 2"-12 1-1/2" 219.50 36.50 60
