Location: Home Fluid Connector Hose Fittings Insert Hose FittingsDP4MFS

DP4MFS 45° Elbow Metric Female 24° Cone Heavy Type – Braided Hose And Spiral Hose

DCompanyDME
PProduct RangeHose Fitting
4Fitting Structure45° Elbow
MThread TypesMetric
FConnection TypeFemale
5Pressure GradeHeavy Type

A 3D drawing of DP4MFS hydraulic adaptor.

A model drawing of DP4MFS hydraulic adaptor.

DME&JDE Code: DP4MFS
Product Type: Hose Fitting
Hose Fitting Type: Insert
Thread Type: Metric 24° Cone Heavy Type
Structure: 45° Elbow
Connection Type: Female

Technical Data of DP4MFS

-14
-16
-18
-20
-22
-24
-30
-36
-42
-52

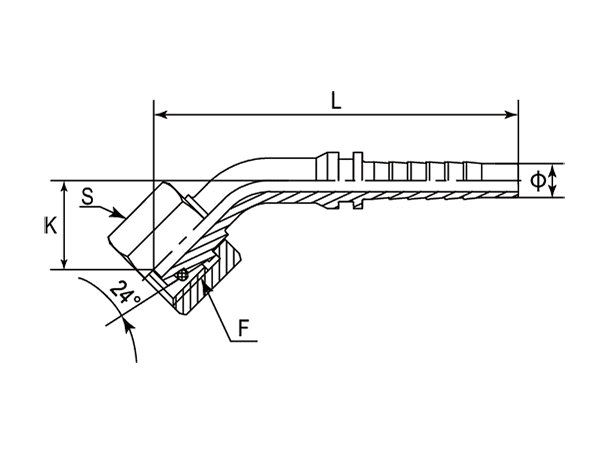

A drawing of DP4MFS 45° elbow hose fitting insert connector.

Note:

Part number of this chart is for use with braided hoses.
If use with spiral hoses, hose fitting series number is DP4MFS-XXXXR

-	Part Number	F (Thread)	Cone 24°	Ø	K	L	S
-	-	Metric	-	mm	mm	mm	mm
-01	DP4MFS-1404	M14X1.5	06S	1/4"	16.00	65.80	17
-16	DP4MFS-1604	M16X1.5	08S	1/4"	17.00	65.80	19
-18	DP4MFS-1804	M18X1.5	10S	1/4"	20.60	70.80	22
-20	DP4MFS-2006	M20X1.5	12S	3/8"	25.00	78.80	24
-22	DP4MFS-2208	M22X1.5	14S	1/2"	24.00	97.00	27
-24	DP4MFS-2408	M24X1.5	16S	1/2"	25.50	93.30	30
-30	DP4MFS-3010	M30X2	20S	5/8"	24.00	101.80	36
-30	DP4MFS-3012	M30X2	20S	3/4"	31.00	122.60	36
-36	DP4MFS-3612	M36X2	25S	3/4"	36.00	131.00	46
-36	DP4MFS-3616	M36X2	25S	1"	33.00	126.50	46
-42	DP4MFS-4216	M42X2	30S	1"	41.00	136.50	50
-42	DP4MFS-4220	M42X2	30S	1-1/4"	53.00	199.00	50
-52	DP4MFS-5220	M52X2	38S	1-1/4"	54.00	200.00	60
-52	DP4MFS-5224	M52X2	38S	1-1/2"	57.00	232.00	60
