DP1BPF Straight Connector BSPP Swivel Female 60° Cone – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • BPThread TypesBSPP
  • FConnection TypeSwivel Female
  • DME&JDE Code: DP1BPF
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: BSPP 60° Cone
  • Structure: Straight
  • Connection Type: Swivel Female
Technical Data of DP1BPF
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

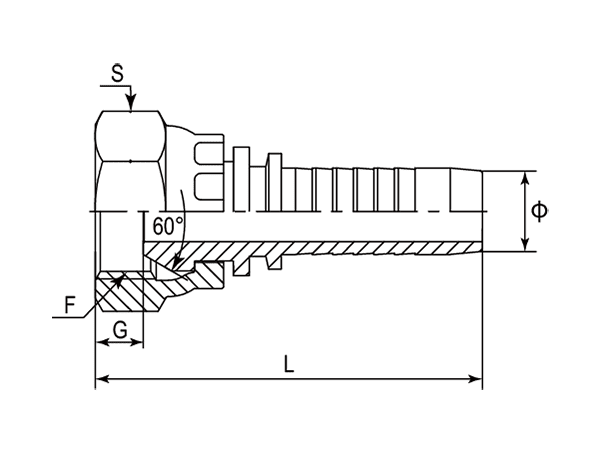

A drawing of DP1BPF straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP1BPF-XXXXR
- Part Number F (Thread) Ø G L S
- - BSPP mm mm mm mm
-01 DP1BPF-0204 G 1/8" 1/4" 4.3 46.5 14
-04 DP1BPF-0404 G 1/4" 1/4" 5.2 47.2 19
-06 DP1BPF-0604 G 3/8" 1/4" 5.2 49.2 22
-06 DP1BPF-0606 G 3/8" 3/8" 6 50.2 22
-08 DP1BPF-0806 G 1/2" 3/8" 6.5 53.2 27
-08 DP1BPF-0808 G 1/2" 1/2" 6.5 55.7 27
-10 DP1BPF-1008 G 5/8" 1/2" 9.7 57.2 30
-10 DP1BPF-1010 G 5/8" 5/8" 9.7 58.7 30
-12 DP1BPF-1212 G 3/4" 3/4" 8.7 67.6 32
-16 DP1BPF-1616 G 1" 1" 10.5 84.8 41
-20 DP1BPF-2020 G 1-1/4" 1-1/4" 10.1 93.9 50
-24 DP1BPF-2424 G 1-1/2" 1-1/2" 12.5 106.5 55
-32 DP1BPF-3232 G 2" 2" 16.1 113 70
