Location: Home Fluid Connector Hose Fittings Insert Hose FittingsDP1NPS

DP1NPS Straight Connector NPSM Swivel Female 60°Cone – Braided Hose And Spiral Hose

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
NPSThread TypesNPSM

A 3D drawing of DP1NPS hydraulic adaptor.

A model drawing of DP1NPS hydraulic adaptor.

DME&JDE Code: DP1NPS
Product Type: Hose Fitting
Hose Fitting Type: Insert
Thread Type: NPTF 60° Cone
Structure: Straight
Connection Type: Swivel Female

Technical Data of DP1NPS

-04
-06
-08
-12
-16
-20
-24
-32

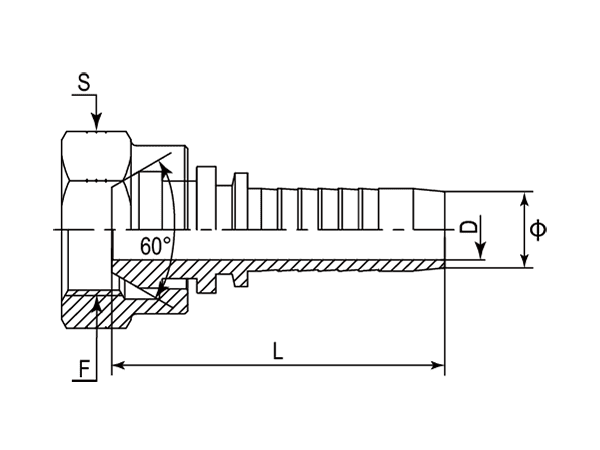

A drawing of DP1NPS straight hose fitting insert connector.

Note:

Part number of this chart is for use with braided hoses.
If use with spiral hoses, hose fitting series number is DP1NPS-XXXXR

-	Part Number	F (Thread)	Ø	L	S
-	-	NPSM	Inch	mm	mm
-01	DP1NPS-0404	1/4"-18	1/4"	45.50	19
-06	DP1NPS-0606	3/8"-18	3/8"	49.70	22
-08	DP1NPS-0806	1/2"-14	3/8"	53.20	27
-08	DP1NPS-0808	1/2"-14	1/2"	55.70	27
-12	DP1NPS-1212	3/4"-14	3/4"	67.60	32
-16	DP1NPS-1616	1"-11-1/2	1"	84.80	41
-20	DP1NPS-2020	1-1/4"-11-1/2	1-1/4"	93.90	50
-24	DP1NPS-2424	1-1/2"-11-/2	1-1/2"	106.50	55
-32	DP1NPS-3232	2"-11-1/2	2"	113.00	70
