DP1FS Straight Connector SAE Flange Code 62 – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • FSConnection TypeSAE Flange Code 62
  • DME&JDE Code: DP1FS
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Structure: Straight
  • Connection Type: Flange Code 62
Technical Data of DP1FS
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

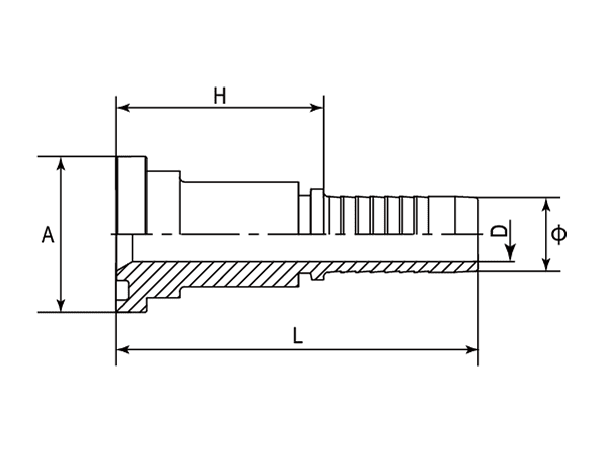

A drawing of DP1FS straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP1FS-XXXXR
- Part Number Flange Ø H L A D
- - - Inch mm mm mm mm
-01 DP1FS-0808 8 1/2" 49.50 82.50 31.80 9.00
-01 DP1FS-0810 8 5/8" 53.00 89.00 31.80 9.00
-12 DP1FS-1212 12 3/4" 60.00 89.80 41.20 15.00
-16 DP1FS-1612 16 3/4" 62.50 103.50 47.80 9.60
-16 DP1FS-1616 16 1" 66.50 104.00 47.80 20.00
-20 DP1FS-2016 20 1" 70.50 120.00 53.90 26.00
-20 DP1FS-2020 20 1-1/4" 71.00 132.00 53.90 10.40
-24 DP1FS-2420 24 1-1/4" 80.50 141.50 63.50 12.70
-24 DP1FS-2424 24 1-1/2" 81.00 151.50 63.50 12.70
-32 DP1FS-3232 32 2" 100.00 176.00 79.40 12.70
