DP4TYF 45° Elbow JIS BSPP Swivel Female 60° Cone – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • TYThread TypesJIS BSPP
  • FConnection TypeSwivel Female
  • DME&JDE Code: DP4TYF
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: JIS BSPP 60° Cone
  • Structure: 45° Elbow
  • Connection Type: Swivel Female
Technical Data of DP4TYF
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

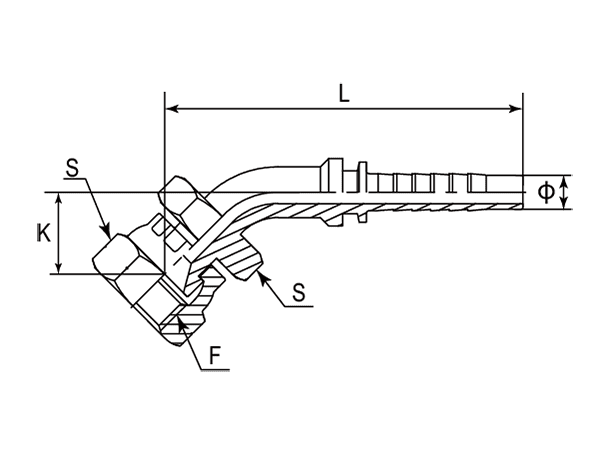

A drawing of DP4TYF 45° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses..
  2. If use with spiral hoses, hose fitting series number is DP4TYF-XXXXR
- Part Number F (Thread) Ø L K S S1
- - BSPP Inch mm mm mm mm
-04 DP4TYF-0404 1/4"-19 1/4" 71.90 21.30 19 19
-06 DP4TYF-0606 3/8"-19 3/8" 78.90 24.60 22 22
-08 DP4TYF-0808 1/2"-14 1/2" 96.50 27.50 27 27
-12 DP4TYF-1212 3/4"-14 3/4" 122.30 33.90 32 32
-16 DP4TYF-1616 1"-11 1" 142.30 36.10 41 41
-20 DP4TYF-2020 1-1/4"-11 1-1/4" 165.40 43.70 50 50
-24 DP4TYF-2424 1-1/2"-11 1-1/2" 192.50 50.80 55 55
-32 DP4TYF-3232 2"-11 2" 216.60 57.60 70 70
