BJBP Banjo BSPP

  • BJOther FeaturesBanjo
  • BPConnection TypeBSPP
  • DME&JDE Code: BJBP
  • Product Type: hose fitting
  • Hose Fitting Type: Insert
  • Thread Type: BSPP
Technical Data of BJBP
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16

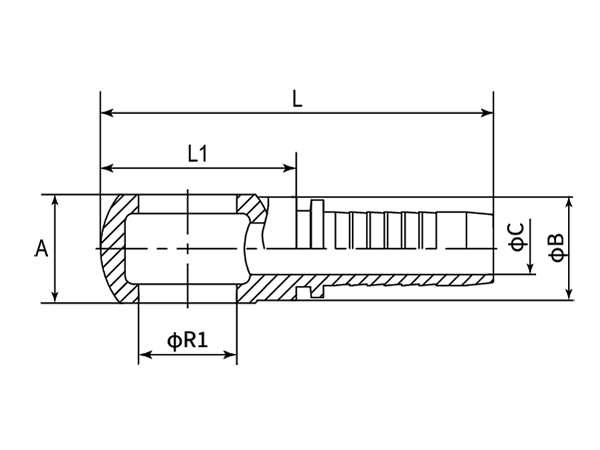

A drawing of BJBP banjo bolt.
- Part Number R1 (Thread) B L L1 A C
- - BSPP mm mm mm mm mm
-01 BJBP-0204 1/8" 1/4" 58.5 26 16 4
-04 BJBP-0404 1/4" 1/4" 65.9 34 14 4
-04 BJBP-0406 1/4" 3/8" 61.5 27 15 7
-06 BJBP-0604 3/8" 1/4" 64.5 32 15 7
-06 BJBP-0605 3/8" 5/16" 67 34 17 5.5
-06 BJBP-0606 3/8" 3/8" 72.5 38 17 7
-08 BJBP-0806 1/2" 3/8" 80 45.5 23.5 7
-08 BJBP-0808 1/2" 1/2" 80.5 45.5 23.5 9.5
-12 BJBP-1212 3/4" 3/4" 99.8 53.8 29 15
-16 BJBP-1616 1" 1" 126.5 72.5 38 19
