DP9FS 90° Elbow SAE Flange Code 62 – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • FSConnection TypeSAE Flange Code 62
  • DME&JDE Code: DP9FS
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Structure: 90° Elbow
  • Connection Type: Flange Code 62
Technical Data of DP9FS
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

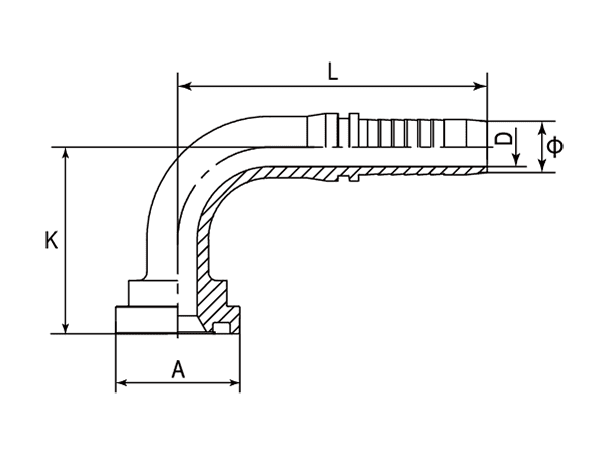

A drawing of DP9FS 90° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP9FS-XXXXR
- Part Number Flange Ø L K A
- - - Inch mm mm mm
-01 DP9FS-0808 8 1/2" 74.00 40.00 31.80
-01 DP9FS-0810 8 5/8" 85.00 53.00 31.80
-12 DP9FS-1212 12 3/4" 99.00 58.00 41.20
-16 DP9FS-1612 16 3/4" 99.00 62.00 47.80
-16 DP9FS-1616 16 1" 129.00 70.00 47.80
-20 DP9FS-2016 20 1" 129.00 75.00 53.90
-20 DP9FS-2020 20 1 1/4" 153.00 90.00 53.90
-24 DP9FS-2420 24 1 1/4" 153.00 95.00 63.50
-24 DP9FS-2424 24 1 1/2" 179.00 104.00 63.50
-32 DP9FS-3232 32 2" 218.00 138.00 79.40
