DP4FS 45° Elbow SAE Flange Code 62 – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • FSConnection TypeSAE Flange Code 62
  • DME&JDE Code: DP4FS
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Structure: 45° Elbow
  • Connection Type: Flange Code 62
Technical Data of DP4FS
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

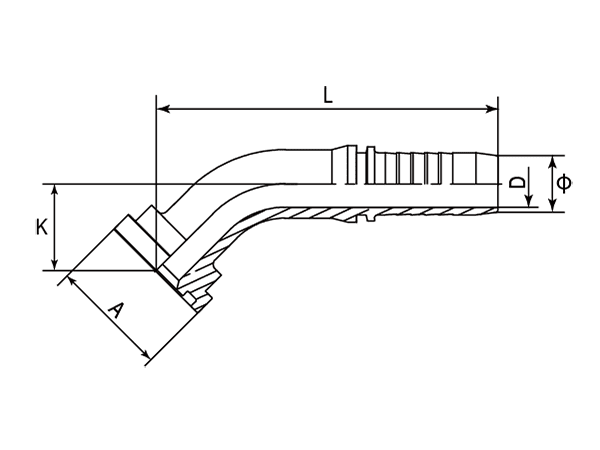

A drawing of DP4FS 45° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP4FS-XXXXR
- Part Number Flange Ø L K A D
- - - Inch mm mm mm mm
-01 DP4FS-0808 8 1/2" 95.00 19.00 31.80 9.50
-01 DP4FS-0810 8 5/8" 102.00 23.00 31.80 12.00
-12 DP4FS-1212 12 3/4" 127.00 26.00 41.20 14.00
-16 DP4FS-1612 16 3/4" 132.00 28.00 47.80 14.00
-16 DP4FS-1616 16 1" 162.00 32.00 47.80 19.70
-20 DP4FS-2016 20 1" 163.00 36.00 53.90 19.70
-20 DP4FS-2020 20 1-1/4" 163.00 36.00 53.90 19.70
-24 DP4FS-2420 24 1-1/4" 197.00 41.00 63.50 25.50
-24 DP4FS-2424 24 1-1/2" 232.00 44.00 63.50 30.00
-32 DP4FS-3232 32 2" 286.00 56.00 79.40 43.50
