Location: Home Fluid Connector Hose Fittings Insert Hose FittingsDP1MFS

DP1MFS Straight Connector Metric Female 24° Cone Heavy Type – Braided Hose And Spiral Hose

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
MThread TypesMetric
FConnection TypeFemale
SPressure GradeHeavy Type

A 3D drawing of DP1MFS hydraulic adaptor.

A model drawing of DP1MFS hydraulic adaptor.

DME&JDE Code: DP1MFS
Product Type: Hose Fitting
Hose Fitting Type: Insert
Thread Type: Metric 24° Cone Heavy Type
Structure: Straight
Connection Type: Female

Technical Data of DP1MFS

-14
-16
-18
-20
-22
-24
-30
-36
-42
-52

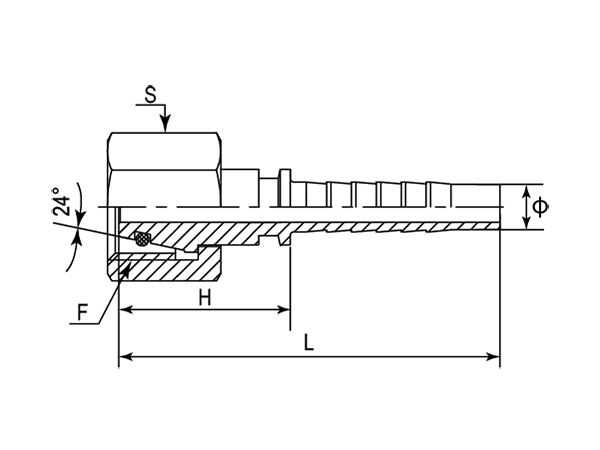

A drawing of DP1MFS straight hose fitting insert connector.

Note:

Part number of this chart is for use with braided hoses.
If use with spiral hoses, hose fitting series number is DP1MFS-XXXXR

-	Part Number	F (Thread)	Cone 24°	Ø	H	L	S
-	-	Metric	-	mm	mm	mm	mm
-01	DP1MFS-1404	M14X1.5	06S	1/4"	22.70	50.50	17
-16	DP1MFS-1604	M16X1.5	08S	1/4"	24.20	52.00	19
-18	DP1MFS-1804	M18X1.5	10S	1/4"	24.70	52.50	22
-20	DP1MFS-2006	M20X1.5	12S	3/8"	25.50	55.30	24
-22	DP1MFS-2208	M22X1.5	14S	1/2"	27.00	58.30	27
-24	DP1MFS-2408	M24X1.5	16S	1/2"	27.00	58.30	30
-30	DP1MFS-3010	M30X2	20S	5/8"	33.50	67.30	36
-30	DP1MFS-3012	M30X2	20S	3/4"	33.70	73.30	36
-36	DP1MFS-3612	M36X2	25S	3/4"	30.70	70.30	46
-36	DP1MFS-3616	M36X2	25S	1"	32.50	79.00	46
-42	DP1MFS-4216	M42X2	30S	1"	35.50	82.00	50
-42	DP1MFS-4220	M42X2	38S	1-1/4"	35.50	90.00	50
-52	DP1MFS-5220	M52X2	38S	1-1/4"	35.00	89.00	60
-52	DP1MFS-5224	M52X2	38S	1-1/2"	48.00	118.00	60
