DFLOP6 SAE Flange Plug with O Ring Code 62

  • DCompanyDME
  • FLProduct RangeFlange
  • OPFlange TypePlug with O Ring
  • 6Flange SeriesCode 62
  • DME&JDE Code: DFLOP6
  • Product Type: flange
  • Flange Type: plug with O Ring flange
  • Connection Type: Flange Code 61
Technical Data of DFLOP6
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

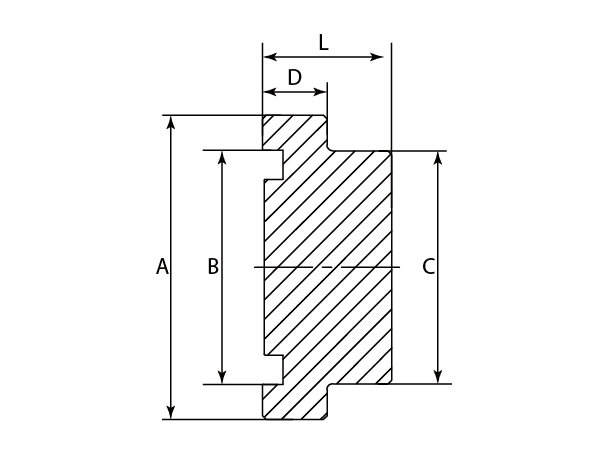

A drawing of DFLOP6 hydraulic flange fitting.
- Part Number A B C D L
- - mm mm mm mm mm
-01 DFLOP6-08 31.8 25.4 24 7.8 18
-12 DFLOP6-12 41.28 31.75 31.75 8.76 17.53
-16 DFLOP6-16 47.63 39.62 38.1 9.53 20.57
-20 DFLOP6-20 53.98 44.45 43.6 10.29 25.4
-24 DFLOP6-24 63.5 53.72 50.55 12.57 30.23
-32 DFLOP6-32 79.38 63.25 66.42 12.57 38.1
