Location: Home Fluid Connector Hydraulic Flange & AdaptorDAOF51364

DAOF51364 Straight Connector ORFS Male – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
OFThread TypesOFRS
5Connection TypeMale
1Adaptor StructureStraight
3Adaptor TypeFlange
6Flange SerieseSAE Code 62
4Flange Head TypeSlip Flange Head

A drawing of DAOF51364 hydraulic adaptor.

A 3D drawing of DAOF51364 hydraulic adaptor.

A model drawing of DAOF51364 hydraulic adaptor.

DME&JDE Code: DAOF51364
Product Type: hydraulic adaptor, flange
Standard: ORFS
Structure: Straight
Connection Types: Male × Flange SAE Code 62
Thread Types: ORFS UNF × SAE Code 62 Flange

Technical Data of DAOF51364

-08
-12
-16
-20
-24
-32

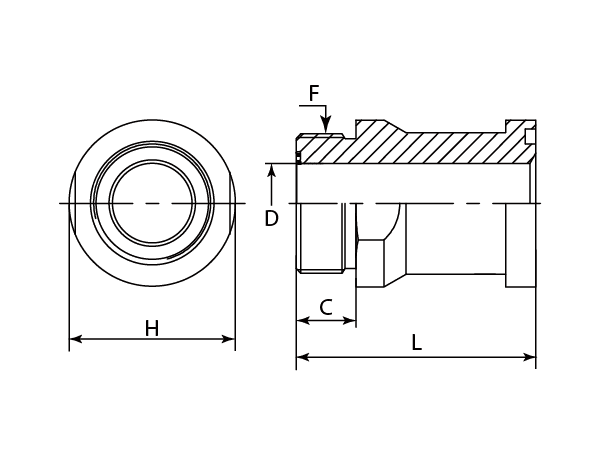

A drawing of DAOF51364 flange adaptor.

-	Part Number	F (Thread)	C	D	L	H
-	-	UNF	mm	mm	mm	mm
-01	DAOF51364-0808	13/16"-16	13	9.5	62.5	28.5
-12	DAOF51364-1212	1-3/16"-12	17.02	15.47	69.9	34.85
-12	DAOF51364-1216	1-3/16"-12	16.99	15.49	71.12	41.2
-16	DAOF51364-1612	1-7/16"-12	17.5	15.47	69.85	41.2
-16	DAOF51364-1616	1-7/16"-12	17.5	20.6	72.6	41.2
-16	DAOF51364-1620	1-7/16"-12	17.5	20.6	77.5	44.37
-20	DAOF51364-2020	1-11/16"-12	17.5	26	77.5	44.37
-24	DAOF51364-2424	2"-12	17.5	32	88.9	53.9
-32	DAOF51364-3232	2-1/2"-12	22.25	45	89.36	66.6
