Location: Home Fluid Connector Hydraulic Flange & AdaptorDAJCM4334-B

DAJCM4334-B 45° Swept Elbows JIC Male 74° – Flange SAE Code 61

DCompanyDME
AProduct RangeAdaptor
JCThread TypesJIC
MConnection TypeMale
4Adaptor Structure45° Elbow
3Adaptor TypeFlange
3Flange SeriesSAE Code 61
4Flange Head TypeSlip Flange Head
BElbow TypeSwept

A drawing of DAJCM4334-B hydraulic adaptor.

A 3D drawing of DAJCM4334-B hydraulic adaptor.

A model drawing of DAJCM4334-B hydraulic adaptor.

DME&JDE Code: DAJCM4334-B
Product Type: hydraulic adaptor, flange
Standard: JIC
Structure: 45° Swept Elbows
Connection Types: Male × Flange SAE Code 61
Thread Types: JIC 74° Cone × SAE Code 61 Flange

Technical Data of DAJCM4334-B

-08
-12
-16
-20
-32

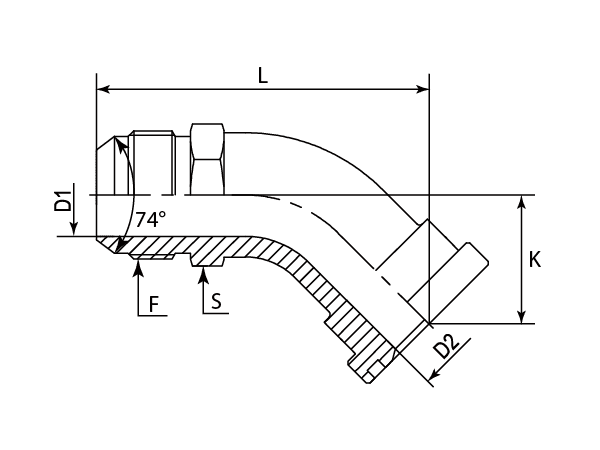

A drawing of DAJCM4334-B flange adaptor.

-	Part Number	F (Thread)	D1	D2	L	K	S
-	-	UNF	mm	mm	mm	mm	mm
-01	DAJCM4334-0808B	3/4"-16	9.3	9.3	78	25	22.23
-12	DAJCM4334-1212B	1-1/16"-12	15.52	15.52	80	26	28.58
-12	DAJCM4334-1216B	1-1/16"-12	15.52	15.52	109	31.5	28.58
-16	DAJCM4334-1612B	1-5/16"-12	15.52	15.52	112	31.5	34.93
-16	DAJCM4334-1616B	1-5/16"-12	21	21	114.5	33.5	34.93
-16	DAJCM4334-1620B	1-5/16"-12	21	21	123.2	35.4	34.93
-20	DAJCM4334-2016B	1-5/8"-12	21	21	98	31	42.86
-20	DAJCM4334-2024B	1-5/8"-12	27.38	27.38	108	37	42.86
-32	DAJCM4334-3224B	2-1/2"-12	33.48	33.48	158	55	70
-32	DAJCM4334-3232B	2-1/2"-12	45.24	45.24	158	56	70
