DFLOP3 SAE Flange Plug with O Ring Code 61

  • DCompanyDME
  • FLProduct RangeFlange
  • OPFlange TypePlug with O Ring
  • 3Flange SeriesCode 61
  • DME&JDE Code: DFLOP3
  • Product Type: flange
  • Flange Type: plug with O Ring flange
  • Connection Type: Flange Code 61
Technical Data of DFLOP3
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32
  • -40

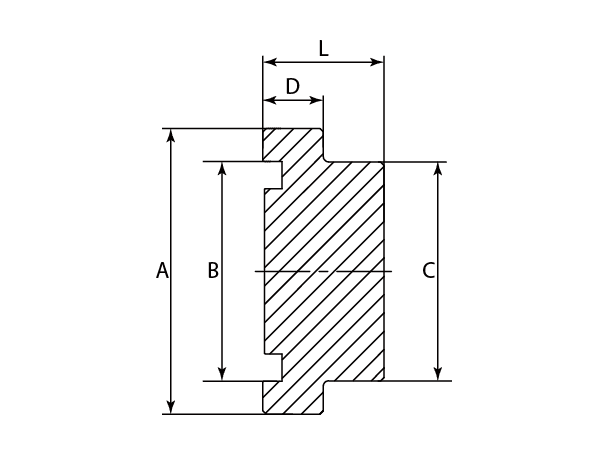

A drawing of DFLOP3 hydraulic flange fitting.
- Part Number A B C D L
- - mm mm mm mm mm
-01 DFLOP3-08 30.2 25.4 24 6.8 16
-12 DFLOP3-12 38.1 31.75 31.75 6.73 14.22
-16 DFLOP3-16 44.45 39.62 37.97 8 14.22
-20 DFLOP3-20 50.8 44.45 43.05 8 14.22
-24 DFLOP3-24 60.33 53.72 50.17 8 15.75
-32 DFLOP3-32 71.42 63.25 62.2 9.53 15.75
-40 DFLOP3-40 84.1 75.3 74 9.6 40
