Location: Home Fluid Connector Hydraulic Flange & AdaptorDAUNM1334

DAUNM1334 Straight Connector SAE Male + O Ring – Flange SAE Code 61

DCompanyDME
AProduct RangeAdaptor
UNThread TypesSAE
MConnection TypeMale
1Adaptor StructureStraight
3Adaptor TypeFlange
3Flange SerieseSAE Code 61
4Flange Head TypeSlip Flange Head

A drawing of DAUNM1334 hydraulic adaptor.

A 3D drawing of DAUNM1334 hydraulic adaptor.

A model drawing of DAUNM1334 hydraulic adaptor.

DME&JDE Code: DAUNM1334
Product Type: hydraulic adaptor, flange
Structure: Straight
Connection Types: Male × Flange SAE Code 61
Thread Types: UNF + O Ring × SAE Code 61 Flange
Sealing Method: Oring

Technical Data of DAUNM1334

-08
-12
-16
-20
-24
-32

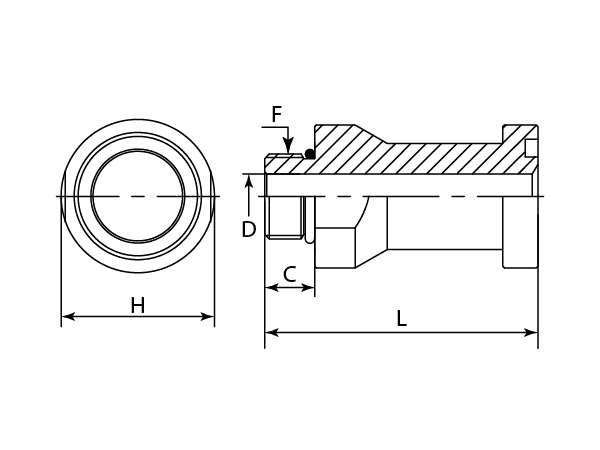

A drawing of DAUNM1334 flange adaptor.

-	Part Number	F (Thread)	C	D	L	H
-	-	UNF	mm	mm	mm	mm
-01	DAUNM1334-0808	3/4"-16	14	10.72	63.2	28.5
-12	DAUNM1334-1212	1-1/16"-12	18.49	16.66	66.4	34.85
-16	DAUNM1334-1616	1-5/16"-12	18.49	22.23	66.4	41.2
-20	DAUNM1334-2020	1-5/8"-12	18.49	27.76	79.6	47.55
-24	DAUNM1334-2424	1-7/8"-12	18.49	34.14	79.86	53.9
-32	DAUNM1334-3232	2-1/2"-12	18.49	46.05	92.3	69.77
