Location: Home Fluid Connector Hydraulic Flange & AdaptorDABPM9334

DABPM9334 90° Forged Elbow ORFS Male – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
BPThread TypesBSPP
MConnection TypeMale
9Adaptor Structure90° Elbow
3Adaptor TypeFlange
3Flange SeriesSAE Code 61
4Flange Head TypeSlip Flange Head

A drawing of DABPM9334 hydraulic adaptor.

A 3D drawing of DABPM9334 hydraulic adaptor.

A model drawing of DABPM9334 hydraulic adaptor.

DME&JDE Code: DABPM9334
Product Type: hydraulic adaptor, flange
Standard: BSPP
Structure: 90° Forged Elbow
Connection Types: Male × Flange SAE Code 61
Thread Types: BSPP 60° Cone × SAE Code 61 Flange

Technical Data of DABPM9334

-12
-16
-20
-24

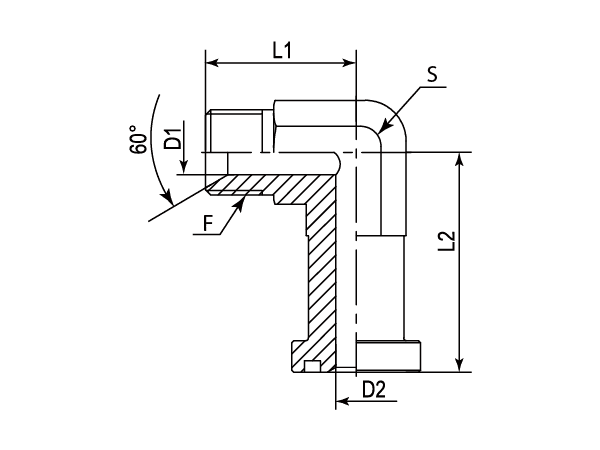

A drawing of DABPM9334 flange adaptor.

-	Part Number	F (Thread)	D1	D2	L1	L2	S
-	-	BSPP	mm	mm	mm	mm	mm
-01	DABPM9334-0808	1/2"-14	11.1	10	37.2	54.1	22.23
-01	DABPM9334-0812	1/2"-14	11.1	15.52	42.1	54.1	27
-12	DABPM9334-1212	3/4"-14	16.7	15.52	42.1	54.1	27
-12	DABPM9334-1216	3/4"-14	16.7	21.44	46	60.2	33.35
-16	DABPM9334-1612	1"-11	22.2	15.52	46	59	33.35
-16	DABPM9334-1616	1"-11	22.2	21.44	46	60.2	33.35
-16	DABPM9334-1620	1"-11	22.2	27.38	52.3	66.55	41.28
-20	DABPM9334-2020	1-1/4"-11	27.38	27.38	52.3	66.55	41.28
-24	DABPM9334-2424	1-1/2"-11	33.3	33.3	60.5	80	47.6
