DAOF54364 45° Forged Elbows ORFS Male – Flange SAE Code 62

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesOFRS
  • 5Connection TypeMale
  • 4Adaptor Structure45° Elbow
  • 3Adaptor TypeFlange
  • 6Flange SeriesSAE Code 62
  • 4Flange Head TypeSlip Flange Head
  • DME&JDE Code: DAOF54364
  • Product Type: hydraulic adaptor, flange
  • Standard: ORFS
  • Structure: 45° Forged Elbows
  • Connection Types: Male × Flange SAE Code 62
  • Thread Types: ORFS UNF × SAE Code 62 Flange
Technical Data of DAOF54364
  • -12
  • -16
  • -20
  • -24
  • -32

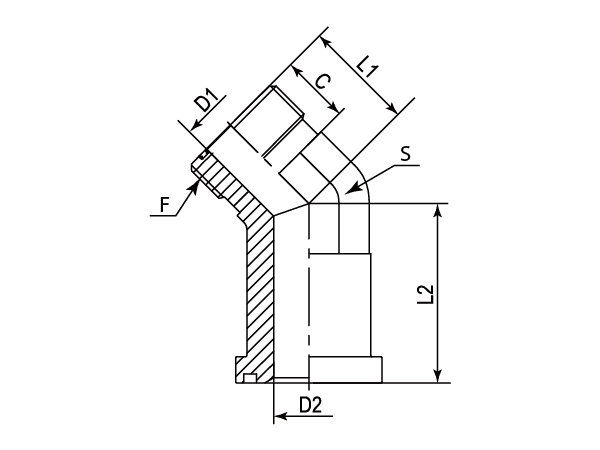

A drawing of DAOF54364 flange adaptor.
- Part Number F1 (Thread) C D1 D2 L1 L2 S
- - UNF mm mm mm mm mm mm
-01 DAOF54364-1212 1-3/16"-12 17.02 15.5 15.5 32.51 40.13 30.18
-16 DAOF54364-1616 1-7/16"-12 17.5 20.6 20.6 37.3 47 33.35
-20 DAOF54364-2020 1-11/16"-12 17.5 26 26 40 52 41.27
-24 DAOF54364-2424 2"-12 29.5 32 32 45.2 60.5 47.63
-32 DAOF54364-3232 2-1/2"-12 22.25 45 45 46 76.5 63.5
