DFLBP6 Blind Flanges Low Pressure SAE Code 62

  • DCompanyDME
  • FLProduct RangeFlange
  • BFlange TypeBlind
  • PFlange Pressure TypeLow Pressure
  • 6Flange SeriesSAE Code 62
  • DME&JDE Code: DFLBP6
  • Product Type: flange
  • Flange Type: blind flange
  • Connection Type: Flange Code 62
Technical Data of DFLBP6
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

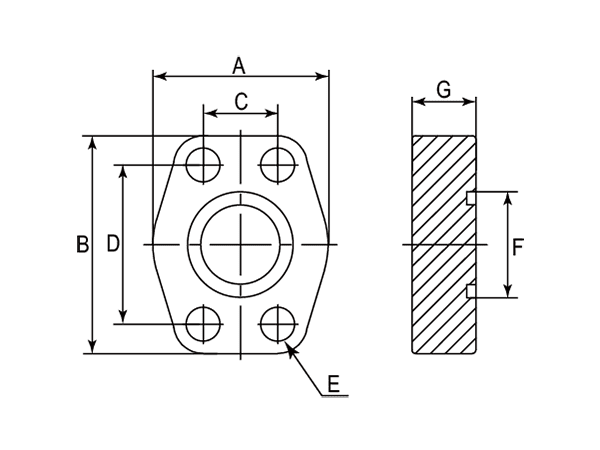

A drawing of DFLBP6 hydraulic flange fitting.
- Part Number A B C D E F G
- - mm mm mm mm mm mm mm
-01 DFLBP6-08 49.3 56.5 18.2 40.5 14 25.5 31.75
-12 DFLBP6-12 63.5 74.93 23.8 50.8 11 31.75 31.75
-16 DFLBP6-16 69.85 81.03 27.76 57.15 13 39.62 38.1
-20 DFLBP6-20 77.72 95.25 31.75 66.68 15 44.45 39.75
-24 DFLBP6-24 95.25 112.78 36.5 79.38 17 53.72 46.1
-32 DFLBP6-32 114.3 133.35 44.45 96.82 21 63.25 46.1
Certificate
