Location: Home Fluid Connector Hydraulic Flange & AdaptorDAOF54334

DAOF54334 45° Forged Elbows ORFS Male – Flange SAE Code 61

DCompanyDME
AProduct RangeAdaptor
OFThread TypesOFRS
5Connection TypeMale
4Adaptor Structure45° Elbow
3Adaptor TypeFlange
3Flange SeriesSAE Code 61
4Flange Head TypeSlip Flange Head

A drawing of DAOF54334 hydraulic adaptor.

A 3D drawing of DAOF54334 hydraulic adaptor.

A model drawing of DAOF54334 hydraulic adaptor.

DME&JDE Code: DAOF54334
Product Type: hydraulic adaptor, flange
Standard: ORFS
Structure: 45° Elbow
Connection Types: Male × Flange SAE Code 61
Thread Types: ORFS UNF × SAE Code 61 Flange

Technical Data of DAOF54334

-12
-16
-20
-24
-32

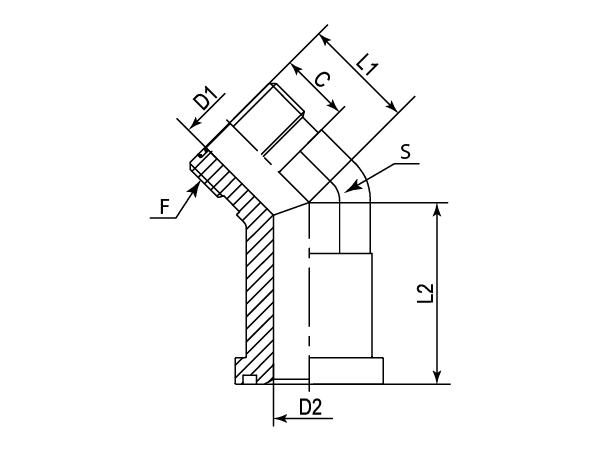

A drawing of DAOF54334 flange adaptor.

-	Part Number	F1 (Thread)	C	D1	D2	L1	L2	S
-	-	UNF	mm	mm	mm	mm	mm	mm
-01	DAOF54334-1212	1-3/16"-12	17.02	15.5	15.5	32.51	40.13	30.18
-16	DAOF54334-1616	1-7/16"-12	17.5	20.6	20.6	38	47	33.3
-20	DAOF54334-2020	1-11/16"-12	17.5	26	26	40	52	41.27
-24	DAOF54334-2424	2"-12	17.5	32	32	45.2	60.5	47.63
-32	DAOF54334-3232	2-1/2"-12	22.25	45	45	46	76.5	63.5
