Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353MJ-BJBP

MJ-BJBP Straight Connector JIC Male - Banjo BSP

A 3D drawing of MJ-BJBP hydraulic adaptor.

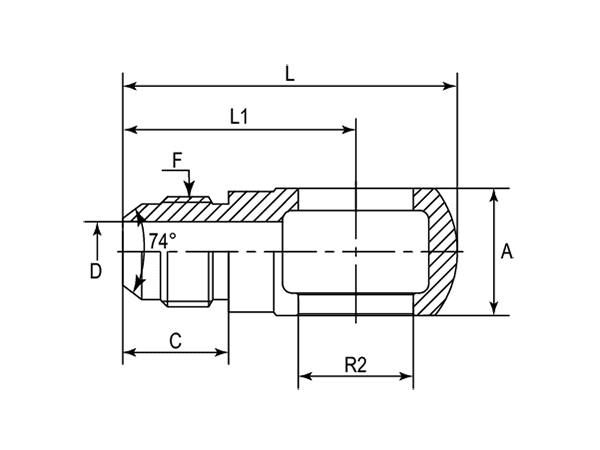

A model drawing of MJ-BJBP hydraulic adaptor.

DME&JDE Code: MJ-BJBP
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Straight
Connection Type: Male
Thread types: UNF
Other Features: Banjo

Technical Data of MJ-BJBP

-04
-05
-06
-08
-10
-12

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	A	C	D	R2	L1	L
-	-	UNF	mm	mm	mm	mm	mm	mm
-01	MJ-BJBP-0402	7/16"-20	10.20	13.97	4.37	9.90	26.00	34.50
-01	MJ-BJBP-0404	7/16"-20	15.00	13.97	4.37	13.30	29.00	41.00
-05	MJ-BJBP-0504	1/2"-20	15.00	13.97	5.94	13.30	29.00	41.00
-06	MJ-BJBP-0604	9/16"-18	15.00	14.12	7.54	13.30	29.00	41.00
-06	MJ-BJBP-0606	9/16"-18	20.00	14.12	7.54	16.70	31.60	46.10
-08	MJ-BJBP-0808	3/4"-16	25.00	16.69	9.93	21.00	41.70	58.70
-10	MJ-BJBP-1008	7/8"-14	25.00	19.25	12.29	21.00	42.00	61.00
-10	MJ-BJBP-1012	7/8"-14	31.00	19.25	12.29	26.50	45.00	69.00
-12	MJ-BJBP-1212	1-1/16''-12	31.00	21.95	15.47	26.50	48.00	72.00
-12	MJ-BJBP-1216	1-1/16''-12	42.00	21.95	15.47	33.30	57.00	87.00
